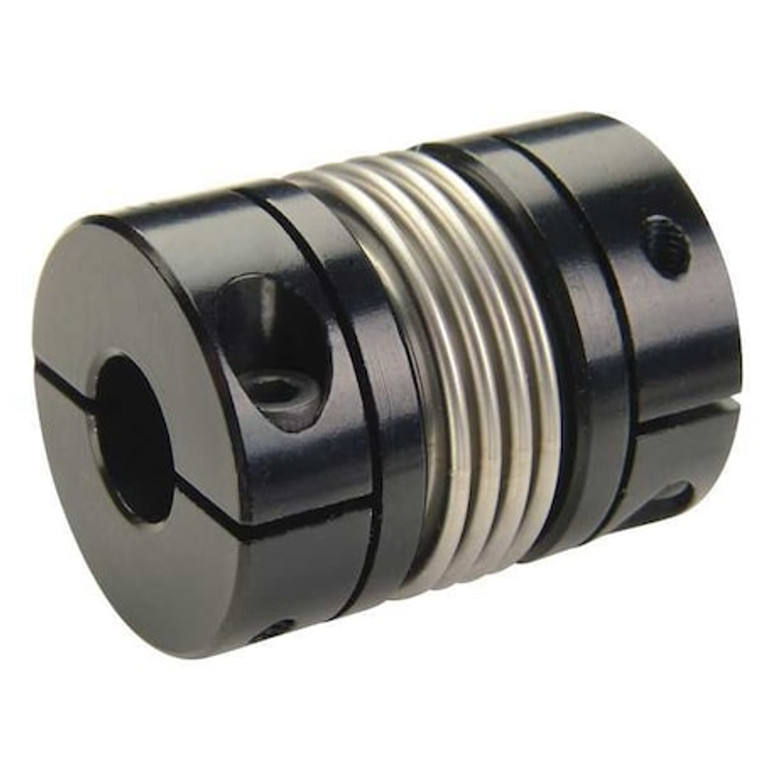

Coupling, Bellows Clamp, Bore 8x6 mm - MBC25-8-6-A

Coupling, Bellows Clamp, Bore 8x6 mm - MBC25-8-6-A

Ruland
SKU:
MBC25-8-6-A
|
UPC:
634529063811
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Bore Diameter 1 8 mm, Bore Diameter 2 6 mm, Coupling Outside Diameter 25.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 6.8 N-m, Hub Material Aluminum, Overall Length 33.3 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 25.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 15.9 mm, Length Through Bore 2 15.9 mm, Parallel Misalignment 0.1 mm, Bore Type Round, Dynamic Torque Non-Reversing 3.4 N-m
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Metric
Bore Dia.:
8mm x 6mm
Material - Couplings:
Aluminum
Outside Dia.:
25 mm
Overall Length:
33.3 mm
Finish:
Anodized Aluminum
Overall Length (mm):
33
Torsional Stiffness (Deg./In.-Lbs.):
0.004
Screw Size (mm):
M3
Max. Axial Misalignment (In.):
+/-0.012
Material:
Aluminum
Hub Dia.:
25 mm
Screw Size:
M3
Item - Motion Control Couplings:
Motion Control Coupling
Length through Bore:
16.5 mm
Max. Parallel Misalignment (In.):
0.004 in
Max. Angular Misalignment:
1.5 Degrees
Clearance Dia. (mm):
25.0
Max. Temp.:
200 Degrees F
Torque (In.-Lbs.):
60
Rated Torque:
60 in-lb
Screw Type:
Cap Screw
Style:
Bellows Clamp
Outside Dia. (mm):
25
Length through Bore (mm):
16.50
Max. RPM:
10,000 RPM
Max. Temp. Range (F):
200
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
Application:
Encoders, Stepper / Servo
Screw Material:
Alloy Steel
Bore Tolerance:
+0.03 mm / -0.00 mm
Maximum Torque:
6.8 N-m
Hub Length:
11.85 mm
Included Screws:
(2) Hex Socket Cap Screw
Hub Material:
Aluminum
Full Bearing Support Required:
Yes
Angular Misalignment:
1.5 Degrees
Maximum Speed:
10,000 RPM
Features:
Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
Shaft Tolerance:
+0.000 mm / -0.013 mm
For Misalignment Type:
Angular, Axial, Parallel
Length Through Bore 1:
15.9 mm
Bellows Material Grade:
321
Parallel Misalignment:
0.1 mm
Bore Type:
Round
Maximum Operating Temperature:
93 Degrees C
Shaft Locking Type:
Clamp On
Minimum Bore Diameter:
6 mm
Length Through Bore 2:
15.9 mm
Different Bore Sizes:
Yes
Screw Thread Size:
M3
Hub Material Finish:
Sulfuric Anodized
Screw Material Finish:
Black Oxide
Moment of Inertia:
0.00000275 kgf/m sq
Coupling Outside Diameter:
25.4 mm
Zero Backlash:
Yes
Clearance Diameter:
25.4 mm
Bellows Material Finish:
None
Minimum Operating Temperature:
-40 Degrees C
Maximum Bore Diameter:
8 mm
Number of Locking Screws:
2
Bore Diameter 2:
6 mm
Bore Diameter 1:
8 mm
Torsional Stiffness:
27 N-m/Deg
Axial Motion:
0.3 mm
Bellows Material:
Stainless Steel
Fastener Tightening Torque:
2.1 N-m
Dynamic Torque Non-Reversing:
3.4 N-m
Dynamic Torque Reversing:
1.7 N-m
Hub Material Grade:
2024
Package Quantity:
1
