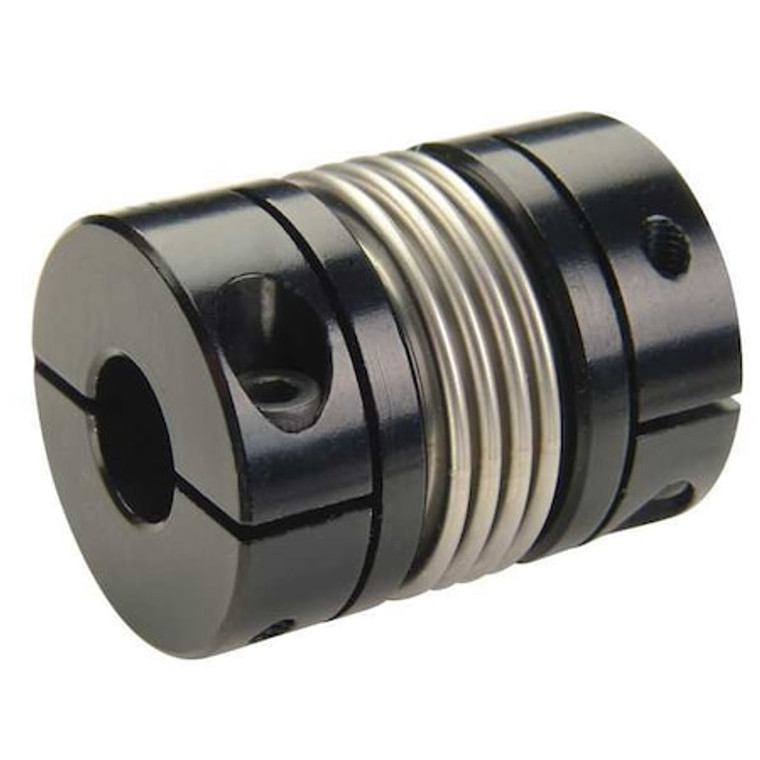

Coupling, Bellows Clamp, Bore 8x6 mm - MBC19-8-6-A

Coupling, Bellows Clamp, Bore 8x6 mm - MBC19-8-6-A

Ruland
SKU:
MBC19-8-6-A
|
UPC:
634529063712
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Bore Diameter 1 8 mm, Bore Diameter 2 6 mm, Coupling Outside Diameter 19.1 mm, Maximum Speed 10,000 RPM, Maximum Torque 4.5 N-m, Hub Material Aluminum, Overall Length 30.2 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 19.1 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 14.5 mm, Length Through Bore 2 14.5 mm, Parallel Misalignment 0.1 mm, Bore Type Round, Dynamic Torque Non-Reversing 2.25 N-m
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Bore Dia.:
8mm x 6mm
Rated Torque:
40 in-lb
Max. RPM:
10,000 RPM
Outside Dia.:
19 mm
Overall Length:
30.2 mm
Material - Couplings:
Aluminum
Style:
Bellows Clamp
Max. Angular Misalignment:
1.5 Degrees
Item - Motion Control Couplings:
Motion Control Coupling
Length through Bore:
15.0 mm
Hub Dia.:
19 mm
Max. Temp.:
200 Degrees F
Screw Size:
M2.5
Torque (In.-Lbs.):
40
Length through Bore (mm):
15.00
Screw Type:
Cap Screw
Max. Axial Misalignment (In.):
+/-0.010
Material:
Aluminum
Item:
Motion Control Coupling
Max. Temp. Range (F):
200
Max. Parallel Misalignment (In.):
0.004 in
Outside Dia. (mm):
19
Finish:
Anodized Aluminum
Overall Length (mm):
30
Screw Size (mm):
M2.5
Clearance Dia. (mm):
19.0
Torsional Stiffness (Deg./In.-Lbs.):
0.008
Axial Motion:
0.25 mm
Bore Tolerance:
+0.03 mm / -0.00 mm
Dynamic Torque Non-Reversing:
2.25 N-m
Screw Material:
Alloy Steel
Moment of Inertia:
0.000000891 kgf/m sq
Dynamic Torque Reversing:
1.13 N-m
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
Number of Locking Screws:
2
Bore Diameter 1:
8 mm
Length Through Bore 2:
14.5 mm
Shaft Tolerance:
+0.000 mm / -0.013 mm
Features:
Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
Screw Material Finish:
Black Oxide
Included Screws:
(2) Hex Socket Cap Screw
Hub Length:
10.4 mm
Angular Misalignment:
1.5 Degrees
Bore Diameter 2:
6 mm
Hub Material:
Aluminum
Maximum Torque:
4.5 N-m
Minimum Operating Temperature:
-40 Degrees C
Coupling Outside Diameter:
19.1 mm
Bellows Material:
Stainless Steel
Length Through Bore 1:
14.5 mm
Different Bore Sizes:
Yes
Shaft Locking Type:
Clamp On
Zero Backlash:
Yes
Hub Material Grade:
2024
Maximum Operating Temperature:
93 Degrees C
For Misalignment Type:
Angular, Axial, Parallel
System of Measurement:
Metric
Maximum Bore Diameter:
8 mm
Minimum Bore Diameter:
6 mm
Full Bearing Support Required:
Yes
Screw Thread Size:
M2.5
Fastener Tightening Torque:
1.21 N-m
Bellows Material Finish:
None
Torsional Stiffness:
14 N-m/Deg
Bellows Material Grade:
321
Maximum Speed:
10,000 RPM
Bore Type:
Round
Clearance Diameter:
19.1 mm
Application:
Encoders, Stepper / Servo
Hub Material Finish:
Sulfuric Anodized
Parallel Misalignment:
0.1 mm
Package Quantity:
1
