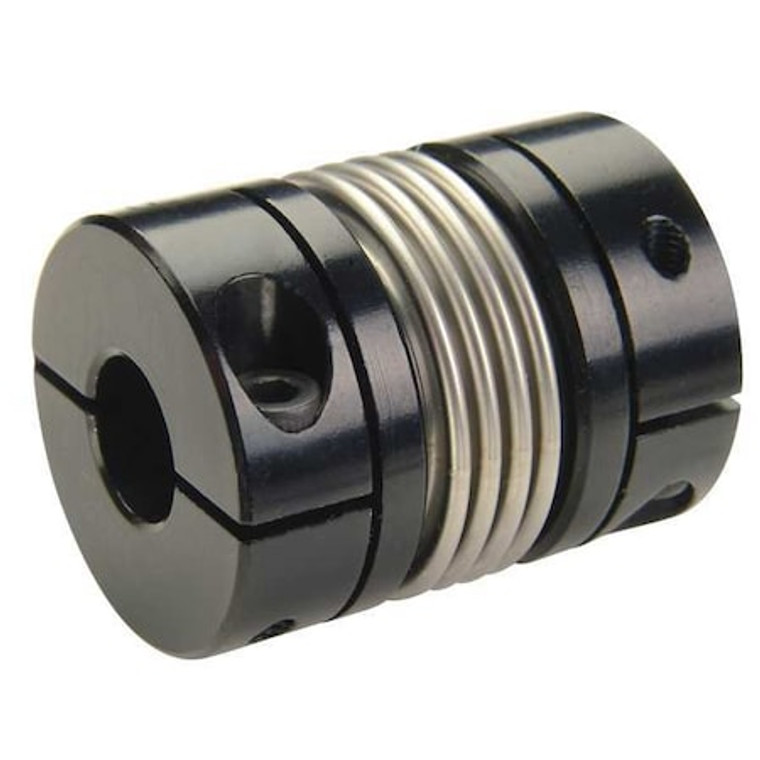

Coupling, Bellows Clamp, Bore 6x6 mm - MBC25-6-6-A

Coupling, Bellows Clamp, Bore 6x6 mm - MBC25-6-6-A

Ruland
SKU:
MBC25-6-6-A
|
UPC:
634529063804
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Bore Diameter 1 6 mm, Bore Diameter 2 6 mm, Coupling Outside Diameter 25.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 6.8 N-m, Hub Material Aluminum, Overall Length 33.3 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 25.4 mm, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 15.9 mm, Length Through Bore 2 15.9 mm, Parallel Misalignment 0.1 mm, Bore Type Round, Dynamic Torque Non-Reversing 3.4 N-m
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Bore Dia.:
6mm x 6mm
Rated Torque:
60 in-lb
Max. RPM:
10,000 RPM
Outside Dia.:
25 mm
Overall Length:
33.3 mm
Material - Couplings:
Aluminum
Max. Temp.:
200 Degrees F
Screw Size:
M3
Max. Axial Misalignment (In.):
+/-0.012
Screw Size (mm):
M3
Finish:
Anodized Aluminum
Torsional Stiffness (Deg./In.-Lbs.):
0.004
Length through Bore:
16.5 mm
Max. Angular Misalignment:
1.5 Degrees
Style:
Bellows Clamp
Overall Length (mm):
33
Max. Parallel Misalignment (In.):
0.004 in
Item - Motion Control Couplings:
Motion Control Coupling
Hub Dia.:
25 mm
Max. Temp. Range (F):
200
Screw Type:
Cap Screw
Item:
Motion Control Coupling
Material:
Aluminum
Outside Dia. (mm):
25
Clearance Dia. (mm):
25.0
Length through Bore (mm):
16.50
Torque (In.-Lbs.):
60
Moment of Inertia:
0.00000276 kgf/m sq
Axial Motion:
0.3 mm
Dynamic Torque Non-Reversing:
3.4 N-m
Screw Material:
Alloy Steel
Dynamic Torque Reversing:
1.7 N-m
Bore Tolerance:
+0.03 mm / -0.00 mm
Different Bore Sizes:
No
System of Measurement:
Metric
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
Hub Material:
Aluminum
Included Screws:
(2) Hex Socket Cap Screw
Number of Locking Screws:
2
Torsional Stiffness:
27 N-m/Deg
Application:
Encoders, Stepper / Servo
Bellows Material Grade:
321
Minimum Bore Diameter:
6 mm
Parallel Misalignment:
0.1 mm
Maximum Speed:
10,000 RPM
Hub Length:
11.85 mm
Full Bearing Support Required:
Yes
Bore Diameter 1:
6 mm
Maximum Bore Diameter:
6 mm
Bore Type:
Round
Bellows Material Finish:
None
Shaft Tolerance:
+0.000 mm / -0.013 mm
For Misalignment Type:
Angular, Axial, Parallel
Angular Misalignment:
1.5 Degrees
Length Through Bore 1:
15.9 mm
Screw Thread Size:
M3
Maximum Operating Temperature:
93 Degrees C
Bore Diameter 2:
6 mm
Bellows Material:
Stainless Steel
Hub Material Grade:
2024
Fastener Tightening Torque:
2.1 N-m
Clearance Diameter:
25.4 mm
Coupling Outside Diameter:
25.4 mm
Hub Material Finish:
Sulfuric Anodized
Minimum Operating Temperature:
-40 Degrees C
Zero Backlash:
Yes
Features:
Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
Maximum Torque:
6.8 N-m
Shaft Locking Type:
Clamp On
Screw Material Finish:
Black Oxide
Length Through Bore 2:
15.9 mm
Package Quantity:
1
