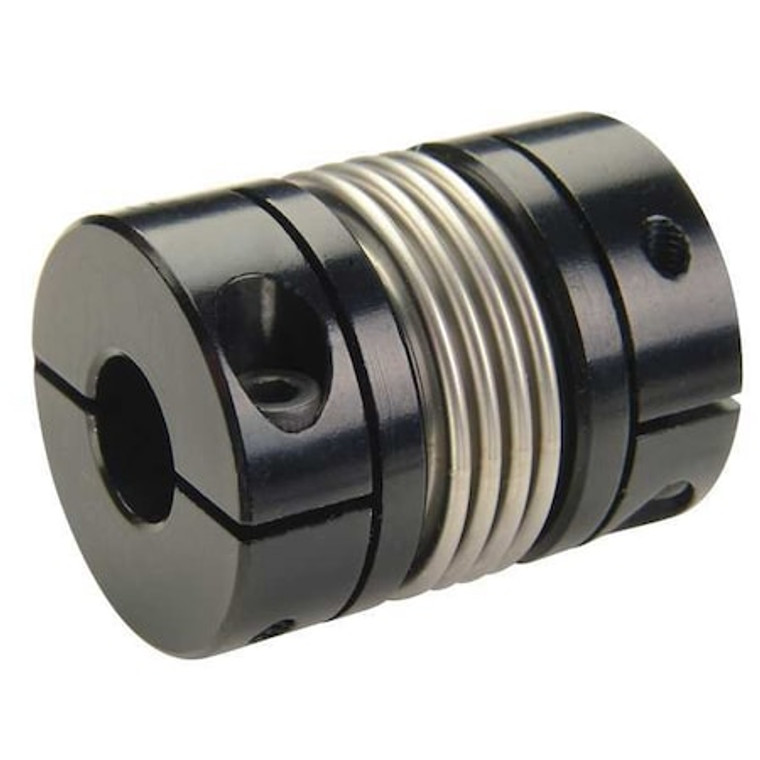

Coupling, Bellows Clamp, Bore 6x4 mm - MBC15-6-4-A

Coupling, Bellows Clamp, Bore 6x4 mm - MBC15-6-4-A

Ruland
SKU:
MBC15-6-4-A
|
UPC:
634529063606
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Bore Diameter 1 6 mm, Bore Diameter 2 4 mm, Coupling Outside Diameter 15 mm, Maximum Speed 10,000 RPM, Maximum Torque 2.5 N-m, Hub Material Aluminum, Overall Length 27.2 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 12.5 mm, Length Through Bore 2 13.1 mm, Parallel Misalignment 0.1 mm, Bore Type Round, Dynamic Torque Non-Reversing 1.25 N-m, Dynamic Torque Reversing 0.63 N-m
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Metric
Bore Dia.:
6mm x 4mm
Material - Couplings:
Aluminum
Outside Dia.:
15 mm
Overall Length:
27.2 mm
Finish:
Anodized Aluminum
Torsional Stiffness (Deg./In.-Lbs.):
0.014
Screw Size:
M2
Screw Type:
Cap Screw
Style:
Bellows Clamp
Length through Bore:
12.5 mm
Max. Angular Misalignment:
1.5 Degrees
Screw Size (mm):
M2
Rated Torque:
22 in-lb
Max. Temp. Range (F):
200
Hub Dia.:
15 mm
Max. RPM:
10,000 RPM
Overall Length (mm):
27
Max. Axial Misalignment (In.):
+/-0.008
Clearance Dia. (mm):
15.0
Max. Parallel Misalignment (In.):
0.004 in
Max. Temp.:
200 Degrees F
Outside Dia. (mm):
15
Material:
Aluminum
Torque (In.-Lbs.):
22
Item - Motion Control Couplings:
Motion Control Coupling
Length through Bore (mm):
12.50
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
Application:
Encoders, Stepper / Servo
Bore Tolerance:
+0.03 mm / -0.00 mm
Screw Material:
Alloy Steel
Dynamic Torque Reversing:
0.63 N-m
Coupling Outside Diameter:
15 mm
Screw Material Finish:
Black Oxide
Different Bore Sizes:
Yes
Maximum Torque:
2.5 N-m
Zero Backlash:
Yes
Length Through Bore 2:
13.1 mm
Minimum Operating Temperature:
-40 Degrees C
Bellows Material Grade:
321
Shaft Locking Type:
Clamp On
Bore Diameter 2:
4 mm
Shaft Tolerance:
+0.000 mm / -0.013 mm
For Misalignment Type:
Angular, Axial, Parallel
Full Bearing Support Required:
Yes
Hub Material Finish:
Sulfuric Anodized
Included Screws:
(2) Hex Socket Cap Screw
Fastener Tightening Torque:
0.6 N-m
Maximum Speed:
10,000 RPM
Bellows Material:
Stainless Steel
Hub Material:
Aluminum
Length Through Bore 1:
12.5 mm
Axial Motion:
0.2 mm
Hub Length:
8.65 mm
Bore Type:
Round
Dynamic Torque Non-Reversing:
1.25 N-m
Maximum Bore Diameter:
6 mm
Hub Material Grade:
2024
Parallel Misalignment:
0.1 mm
Features:
Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
Maximum Operating Temperature:
93 Degrees C
Screw Thread Size:
M2
Angular Misalignment:
1.5 Degrees
Minimum Bore Diameter:
4 mm
Number of Locking Screws:
2
Torsional Stiffness:
8 N-m/Deg
Moment of Inertia:
0.00000316 kgf/m sq
Bore Diameter 1:
6 mm
Bellows Material Finish:
None
Package Quantity:
1
