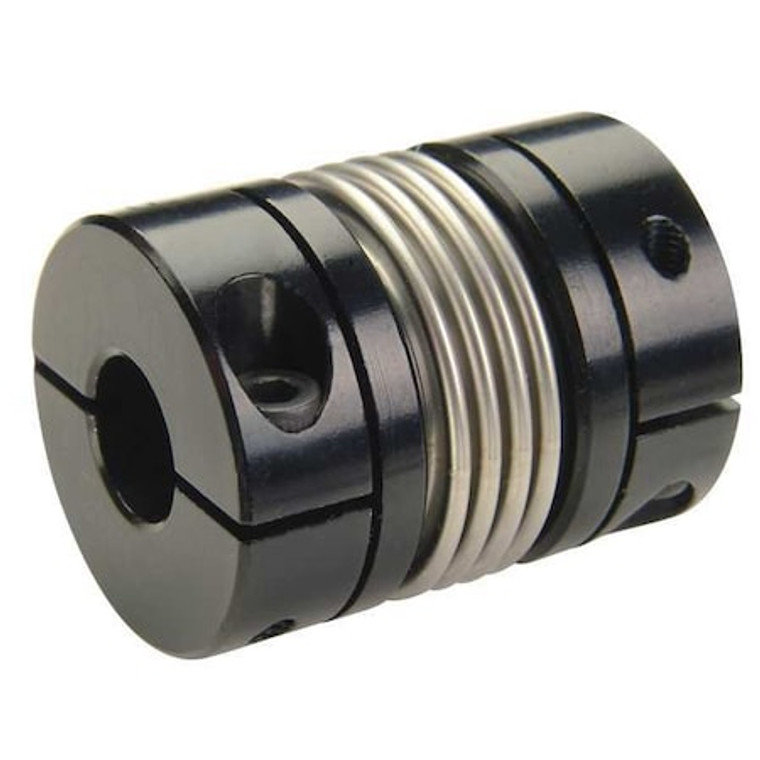

Coupling, Bellows Clamp, Bore 4x3 mm - MBC15-4-3-A

Coupling, Bellows Clamp, Bore 4x3 mm - MBC15-4-3-A

Ruland
SKU:
MBC15-4-3-A
|
UPC:
634529063545
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Bore Diameter 1 4 mm, Bore Diameter 2 3 mm, Coupling Outside Diameter 15 mm, Maximum Speed 10,000 RPM, Maximum Torque 2.5 N-m, Hub Material Aluminum, Overall Length 27.2 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 12.5 mm, Length Through Bore 2 13.1 mm, Parallel Misalignment 0.1 mm, Bore Type Round, Dynamic Torque Non-Reversing 1.25 N-m, Dynamic Torque Reversing 0.63 N-m
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Metric
Bore Dia.:
4mm x 3mm
Material - Couplings:
Aluminum
Outside Dia.:
15 mm
Overall Length:
27.2 mm
Finish:
Anodized Aluminum
Screw Type:
Cap Screw
Length through Bore (mm):
12.50
Material:
Aluminum
Length through Bore:
12.5 mm
Max. Temp. Range (F):
200
Max. Parallel Misalignment (In.):
0.004 in
Torsional Stiffness (Deg./In.-Lbs.):
0.014
Overall Length (mm):
27
Max. RPM:
10,000 RPM
Max. Angular Misalignment:
1.5 Degrees
Torque (In.-Lbs.):
22
Outside Dia. (mm):
15
Item - Motion Control Couplings:
Motion Control Coupling
Max. Temp.:
200 Degrees F
Style:
Bellows Clamp
Hub Dia.:
15 mm
Rated Torque:
22 in-lb
Screw Size (mm):
M2
Clearance Dia. (mm):
15.0
Screw Size:
M2
Max. Axial Misalignment (In.):
+/-0.008
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
Application:
Encoders, Stepper / Servo
Bore Tolerance:
+0.03 mm / -0.00 mm
Screw Material:
Alloy Steel
Bellows Material Finish:
None
Coupling Outside Diameter:
15 mm
Included Screws:
(2) Hex Socket Cap Screw
Number of Locking Screws:
2
Maximum Speed:
10,000 RPM
Features:
Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
Torsional Stiffness:
8 N-m/Deg
For Misalignment Type:
Angular, Axial, Parallel
Bore Diameter 1:
4 mm
Hub Material Finish:
Sulfuric Anodized
Shaft Locking Type:
Clamp On
Zero Backlash:
Yes
Full Bearing Support Required:
Yes
Dynamic Torque Non-Reversing:
1.25 N-m
Maximum Operating Temperature:
93 Degrees C
Maximum Torque:
2.5 N-m
Angular Misalignment:
1.5 Degrees
Axial Motion:
0.2 mm
Screw Thread Size:
M2
Hub Material Grade:
2024
Bore Diameter 2:
3 mm
Bellows Material:
Stainless Steel
Screw Material Finish:
Black Oxide
Bore Type:
Round
Different Bore Sizes:
Yes
Length Through Bore 1:
12.5 mm
Length Through Bore 2:
13.1 mm
Maximum Bore Diameter:
4 mm
Bellows Material Grade:
321
Moment of Inertia:
0.00000316 kgf/m sq
Fastener Tightening Torque:
0.6 N-m
Minimum Bore Diameter:
3 mm
Hub Length:
8.65 mm
Dynamic Torque Reversing:
0.63 N-m
Parallel Misalignment:
0.1 mm
Shaft Tolerance:
+0.000 mm / -0.013 mm
Minimum Operating Temperature:
-40 Degrees C
Hub Material:
Aluminum
Package Quantity:
1
