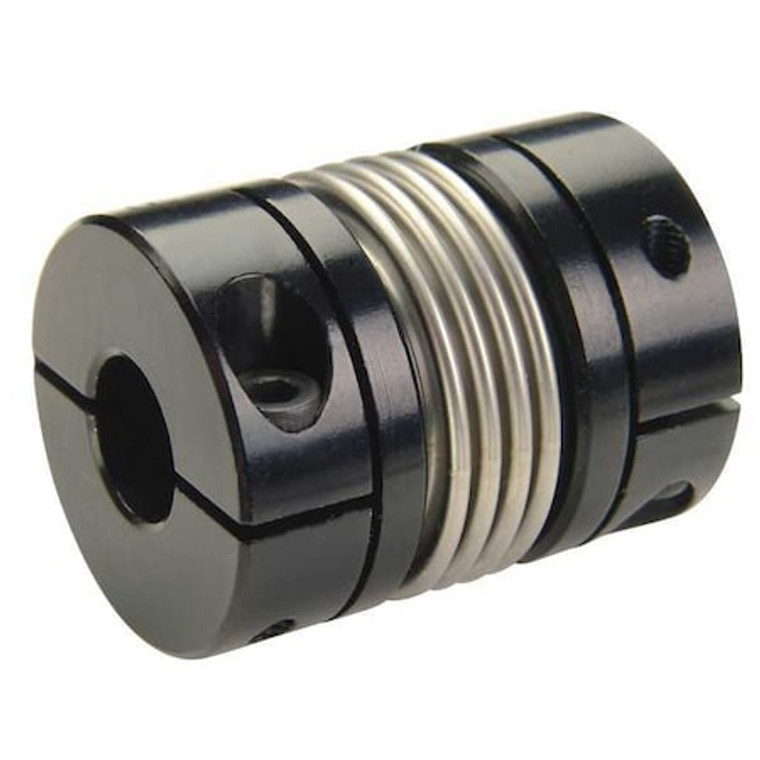

Coupling, Bellows Clamp, Bore 3/4x1/2 In - BC32-12-8-A

Coupling, Bellows Clamp, Bore 3/4x1/2 In - BC32-12-8-A

Ruland
SKU:
BC32-12-8-A
|
UPC:
634529067581
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Bore Diameter 1 3/4 in, Bore Diameter 2 1/2 in, Coupling Outside Diameter 2 in, Maximum Speed 10,000 RPM, Maximum Torque 400 in-lb, Hub Material Aluminum, Overall Length 2.31 in, Shaft Locking Type Clamp On, System of Measurement Inch, Clearance Diameter 2 in, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 1.1 in, Length Through Bore 2 1.1 in, Parallel Misalignment 0.01 in, Bore Type Round, Dynamic Torque Non-Reversing 200 lb-in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Bore Dia.:
3/4 in x 1/2 in
Rated Torque:
400 in-lb
Max. RPM:
10,000 RPM
Outside Dia.:
2 in
Overall Length:
2.31 in
Material - Couplings:
Aluminum
Max. Axial Misalignment (In.):
+/-0.020
Material:
Aluminum
Length through Bore:
1.157 in
Item - Motion Control Couplings:
Motion Control Coupling
Finish:
Anodized Aluminum
Max. Angular Misalignment:
2 Degrees
Max. Parallel Misalignment (In.):
0.01 in
Max. Temp.:
200 Degrees F
Item:
Motion Control Coupling
Screw Type:
Cap Screw
Max. Temp. Range (F):
200
Screw Size:
M5
Style:
Bellows Clamp
Length through Bore (In.):
1.157
Torque (In.-Lbs.):
400
Torsional Stiffness (Deg./In.-Lbs.):
0.001
Screw Size (mm):
M5
Overall Length (In.):
2.315
Outside Dia. (In.):
2.000
Clearance Dia. (In.):
2 in
Dynamic Torque Non-Reversing:
200 lb-in
Dynamic Torque Reversing:
100 lb-in
Bore Tolerance:
+0.001 in / -0.000 in
Moment of Inertia:
0.277823 lb-in sq
Screw Material:
Alloy Steel
Axial Motion:
0.02 in
Hub Length:
0.81 in
Maximum Speed:
10,000 RPM
Screw Material Finish:
Black Oxide
Minimum Bore Diameter:
1/2 in
Hub Material Finish:
Sulfuric Anodized
Application:
Encoders, Stepper / Servo
Bore Diameter 1:
3/4 in
Shaft Locking Type:
Clamp On
Hub Material:
Aluminum
Torsional Stiffness:
950 in-lb/Deg
For Misalignment Type:
Angular, Axial, Parallel
Features:
Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
Zero Backlash:
Yes
Bore Type:
Round
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
Angular Misalignment:
2 Degrees
Hub Material Grade:
2024
Bellows Material Finish:
None
Different Bore Sizes:
Yes
Included Screws:
(2) Hex Socket Cap Screw
Coupling Outside Diameter:
2 in
Screw Thread Size:
M5
Clearance Diameter:
2 in
Shaft Tolerance:
+0.0000 in / -0.0005 in
Length Through Bore 2:
1.1 in
Minimum Operating Temperature:
-40 Degrees F
System of Measurement:
Inch
Full Bearing Support Required:
Yes
Number of Locking Screws:
2
Maximum Torque:
400 in-lb
Maximum Bore Diameter:
3/4 in
Length Through Bore 1:
1.1 in
Parallel Misalignment:
0.01 in
Bore Diameter 2:
1/2 in
Bellows Material Grade:
321
Bellows Material:
Stainless Steel
Fastener Tightening Torque:
84.1 in-lb
Maximum Operating Temperature:
200 Degrees F
Package Quantity:
1
