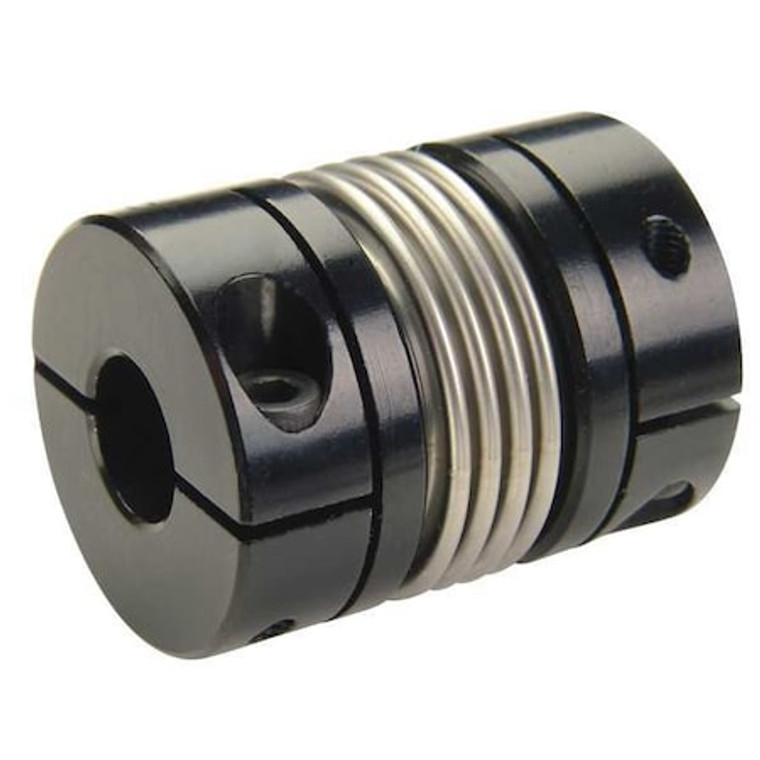

Coupling, Bellows Clamp, Bore 12x8 mm - MBC25-12-8-A

Coupling, Bellows Clamp, Bore 12x8 mm - MBC25-12-8-A

Ruland
SKU:
MBC25-12-8-A
|
UPC:
634529063798
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Bore Diameter 1 12 mm, Bore Diameter 2 8 mm, Coupling Outside Diameter 25.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 6.8 N-m, Hub Material Aluminum, Overall Length 33.3 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 25.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 15.9 mm, Length Through Bore 2 15.9 mm, Parallel Misalignment 0.1 mm, Bore Type Round, Dynamic Torque Non-Reversing 3.4 N-m
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Bore Dia.:
12mm x 8mm
Rated Torque:
60 in-lb
Max. RPM:
10,000 RPM
Outside Dia.:
25 mm
Overall Length:
33.3 mm
Material - Couplings:
Aluminum
Outside Dia. (mm):
25
Screw Size:
M3
Item - Motion Control Couplings:
Motion Control Coupling
Max. Parallel Misalignment (In.):
0.004 in
Item:
Motion Control Coupling
Length through Bore (mm):
16.50
Max. Temp.:
200 Degrees F
Max. Angular Misalignment:
1.5 Degrees
Max. Axial Misalignment (In.):
+/-0.012
Screw Type:
Cap Screw
Style:
Bellows Clamp
Overall Length (mm):
33
Finish:
Anodized Aluminum
Hub Dia.:
25 mm
Length through Bore:
16.5 mm
Torsional Stiffness (Deg./In.-Lbs.):
0.004
Material:
Aluminum
Max. Temp. Range (F):
200
Screw Size (mm):
M3
Torque (In.-Lbs.):
60
Clearance Dia. (mm):
25.0
Dynamic Torque Reversing:
1.7 N-m
Moment of Inertia:
0.00000269 kgf/m sq
Axial Motion:
0.3 mm
Bore Tolerance:
+0.03 mm / -0.00 mm
Screw Material:
Alloy Steel
Dynamic Torque Non-Reversing:
3.4 N-m
Fastener Tightening Torque:
2.1 N-m
Hub Material:
Aluminum
Maximum Bore Diameter:
12 mm
Shaft Tolerance:
+0.000 mm / -0.013 mm
Angular Misalignment:
1.5 Degrees
Application:
Encoders, Stepper / Servo
Included Screws:
(2) Hex Socket Cap Screw
Torsional Stiffness:
27 N-m/Deg
Coupling Outside Diameter:
25.4 mm
Maximum Operating Temperature:
93 Degrees C
Clearance Diameter:
25.4 mm
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
Parallel Misalignment:
0.1 mm
Screw Material Finish:
Black Oxide
Minimum Operating Temperature:
-40 Degrees C
Hub Material Finish:
Sulfuric Anodized
Features:
Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
Screw Thread Size:
M3
For Misalignment Type:
Angular, Axial, Parallel
Maximum Torque:
6.8 N-m
Full Bearing Support Required:
Yes
Shaft Locking Type:
Clamp On
Different Bore Sizes:
Yes
Hub Length:
11.85 mm
Bore Diameter 1:
12 mm
Bore Type:
Round
Length Through Bore 1:
15.9 mm
Minimum Bore Diameter:
8 mm
Bellows Material:
Stainless Steel
Hub Material Grade:
2024
Maximum Speed:
10,000 RPM
Number of Locking Screws:
2
Bore Diameter 2:
8 mm
Zero Backlash:
Yes
Bellows Material Finish:
None
System of Measurement:
Metric
Bellows Material Grade:
321
Length Through Bore 2:
15.9 mm
Package Quantity:
1
