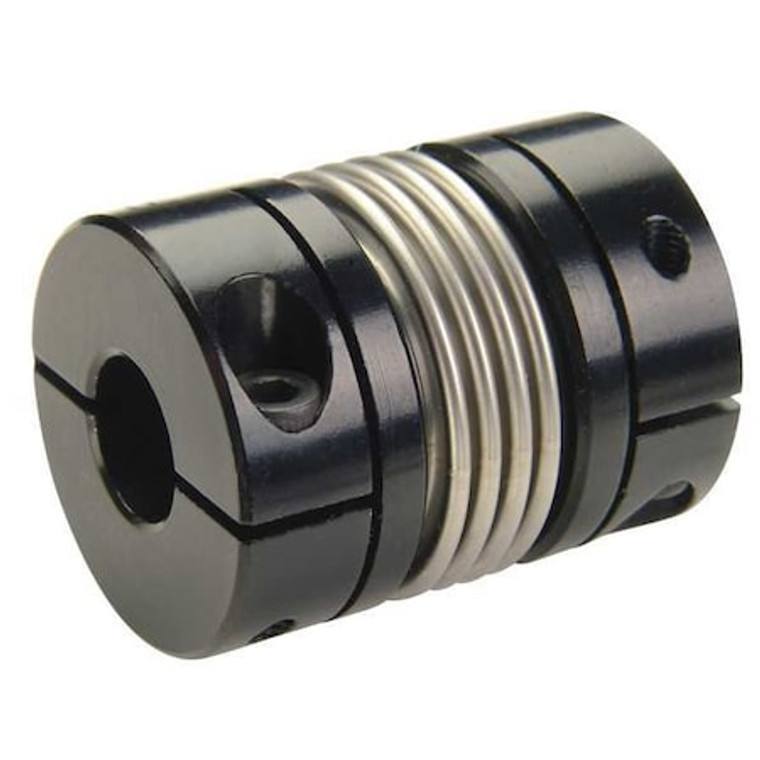

Coupling, Bellows Clamp, Bore 10x8 mm - MBC25-10-8-A

Coupling, Bellows Clamp, Bore 10x8 mm - MBC25-10-8-A

Ruland
SKU:
MBC25-10-8-A
|
UPC:
634529063750
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Bore Diameter 1 10 mm, Bore Diameter 2 8 mm, Coupling Outside Diameter 25.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 6.8 N-m, Hub Material Aluminum, Overall Length 33.3 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 25.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 15.9 mm, Length Through Bore 2 15.9 mm, Parallel Misalignment 0.1 mm, Bore Type Round, Dynamic Torque Non-Reversing 3.4 N-m
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Bore Dia.:
10mm x 8mm
Rated Torque:
60 in-lb
Max. RPM:
10,000 RPM
Outside Dia.:
25 mm
Overall Length:
33.3 mm
Material - Couplings:
Aluminum
Style:
Bellows Clamp
Length through Bore:
16.5 mm
Finish:
Anodized Aluminum
Torsional Stiffness (Deg./In.-Lbs.):
0.004
Torque (In.-Lbs.):
60
Max. Angular Misalignment:
1.5 Degrees
Screw Size:
M3
Material:
Aluminum
Item:
Motion Control Coupling
Max. Temp. Range (F):
200
Max. Axial Misalignment (In.):
+/-0.012
Outside Dia. (mm):
25
Screw Type:
Cap Screw
Length through Bore (mm):
16.50
Clearance Dia. (mm):
25.0
Overall Length (mm):
33
Max. Parallel Misalignment (In.):
0.004 in
Max. Temp.:
200 Degrees F
Hub Dia.:
25 mm
Item - Motion Control Couplings:
Motion Control Coupling
Screw Size (mm):
M3
Dynamic Torque Non-Reversing:
3.4 N-m
Moment of Inertia:
0.00000272 kgf/m sq
Dynamic Torque Reversing:
1.7 N-m
Screw Material:
Alloy Steel
Axial Motion:
0.3 mm
Bore Tolerance:
+0.03 mm / -0.00 mm
Screw Thread Size:
M3
Application:
Encoders, Stepper / Servo
Shaft Locking Type:
Clamp On
Hub Material Grade:
2024
Shaft Tolerance:
+0.000 mm / -0.013 mm
Hub Material Finish:
Sulfuric Anodized
Coupling Outside Diameter:
25.4 mm
Features:
Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
For Misalignment Type:
Angular, Axial, Parallel
Torsional Stiffness:
27 N-m/Deg
Bellows Material Finish:
None
Bellows Material:
Stainless Steel
Different Bore Sizes:
Yes
Bore Diameter 1:
10 mm
Bore Type:
Round
Zero Backlash:
Yes
Maximum Torque:
6.8 N-m
Length Through Bore 1:
15.9 mm
Length Through Bore 2:
15.9 mm
Minimum Operating Temperature:
-40 Degrees C
System of Measurement:
Metric
Hub Length:
11.85 mm
Angular Misalignment:
1.5 Degrees
Included Screws:
(2) Hex Socket Cap Screw
Number of Locking Screws:
2
Bore Diameter 2:
8 mm
Minimum Bore Diameter:
8 mm
Hub Material:
Aluminum
Maximum Bore Diameter:
10 mm
Full Bearing Support Required:
Yes
Screw Material Finish:
Black Oxide
Maximum Speed:
10,000 RPM
Clearance Diameter:
25.4 mm
Maximum Operating Temperature:
93 Degrees C
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
Bellows Material Grade:
321
Fastener Tightening Torque:
2.1 N-m
Parallel Misalignment:
0.1 mm
Package Quantity:
1
