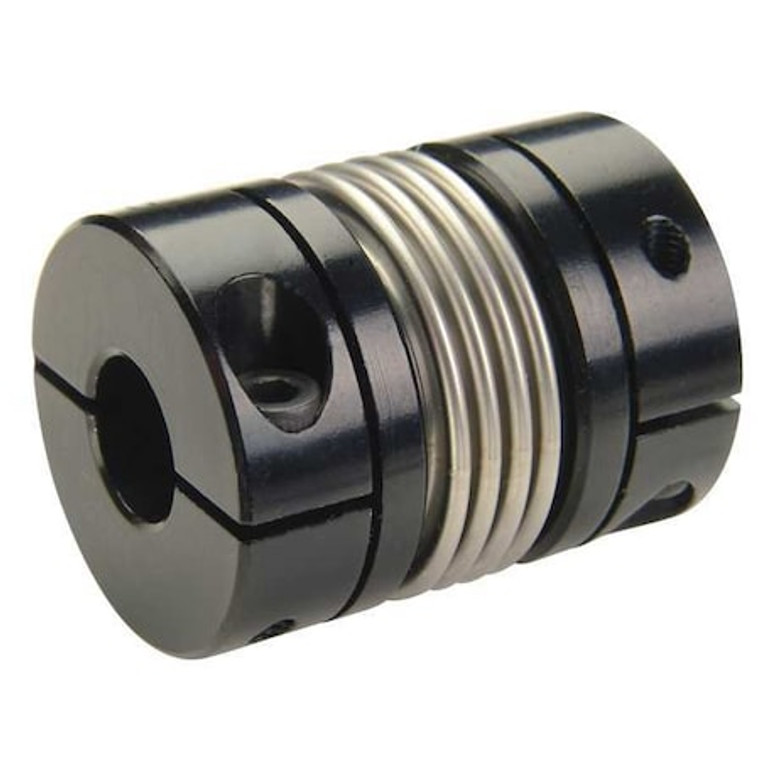

Coupling, Bellows Clamp, Bore 10x10 mm - MBC33-10-10-A

Coupling, Bellows Clamp, Bore 10x10 mm - MBC33-10-10-A

Ruland
SKU:
MBC33-10-10-A
|
UPC:
634529063835
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Bore Diameter 1 10 mm, Bore Diameter 2 10 mm, Coupling Outside Diameter 33.3 mm, Maximum Speed 10,000 RPM, Maximum Torque 13.6 N-m, Hub Material Aluminum, Overall Length 42.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 33.3 mm, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 20.4 mm, Length Through Bore 2 20.4 mm, Parallel Misalignment 0.15 mm, Bore Type Round, Dynamic Torque Non-Reversing 6.8 N-m
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Bore Dia.:
10mm x 10mm
Rated Torque:
120 in-lb
Max. RPM:
10,000 RPM
Outside Dia.:
33 mm
Overall Length:
42.9 mm
Material - Couplings:
Aluminum
Material:
Aluminum
Item:
Motion Control Coupling
Hub Dia.:
33 mm
Max. Temp.:
200 Degrees F
Screw Type:
Cap Screw
Clearance Dia. (mm):
33.0
Item - Motion Control Couplings:
Motion Control Coupling
Style:
Bellows Clamp
Max. Parallel Misalignment (In.):
0.006 in
Overall Length (mm):
40
Outside Dia. (mm):
33
Length through Bore:
20.0 mm
Max. Axial Misalignment (In.):
+/-0.016
Length through Bore (mm):
20.00
Max. Angular Misalignment:
1.5 Degrees
Screw Size:
M3
Torsional Stiffness (Deg./In.-Lbs.):
0.003
Torque (In.-Lbs.):
120
Max. Temp. Range (F):
200
Screw Size (mm):
M3
Finish:
Anodized Aluminum
Dynamic Torque Reversing:
3.4 N-m
Axial Motion:
0.4 mm
Dynamic Torque Non-Reversing:
6.8 N-m
Moment of Inertia:
0.00001091 kgf/m sq
Bore Tolerance:
+0.03 mm / -0.00 mm
Screw Material:
Alloy Steel
Zero Backlash:
Yes
Shaft Tolerance:
+0.000 mm / -0.013 mm
Clearance Diameter:
33.3 mm
Minimum Bore Diameter:
10 mm
Bellows Material Finish:
None
Hub Length:
15 mm
Full Bearing Support Required:
Yes
Hub Material Grade:
2024
Minimum Operating Temperature:
-40 Degrees C
Bore Diameter 2:
10 mm
Torsional Stiffness:
45 N-m/Deg
System of Measurement:
Metric
Maximum Speed:
10,000 RPM
Features:
Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
Bore Type:
Round
Screw Thread Size:
M3
Bellows Material Grade:
321
Coupling Outside Diameter:
33.3 mm
Angular Misalignment:
1.5 Degrees
Hub Material Finish:
Sulfuric Anodized
Maximum Torque:
13.6 N-m
For Misalignment Type:
Angular, Axial, Parallel
Bore Diameter 1:
10 mm
Application:
Encoders, Stepper / Servo
Different Bore Sizes:
No
Fastener Tightening Torque:
2.1 N-m
Maximum Operating Temperature:
93 Degrees C
Parallel Misalignment:
0.15 mm
Length Through Bore 2:
20.4 mm
Maximum Bore Diameter:
10 mm
Bellows Material:
Stainless Steel
Length Through Bore 1:
20.4 mm
Included Screws:
(2) Hex Socket Cap Screw
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
Number of Locking Screws:
2
Shaft Locking Type:
Clamp On
Screw Material Finish:
Black Oxide
Hub Material:
Aluminum
Package Quantity:
1
