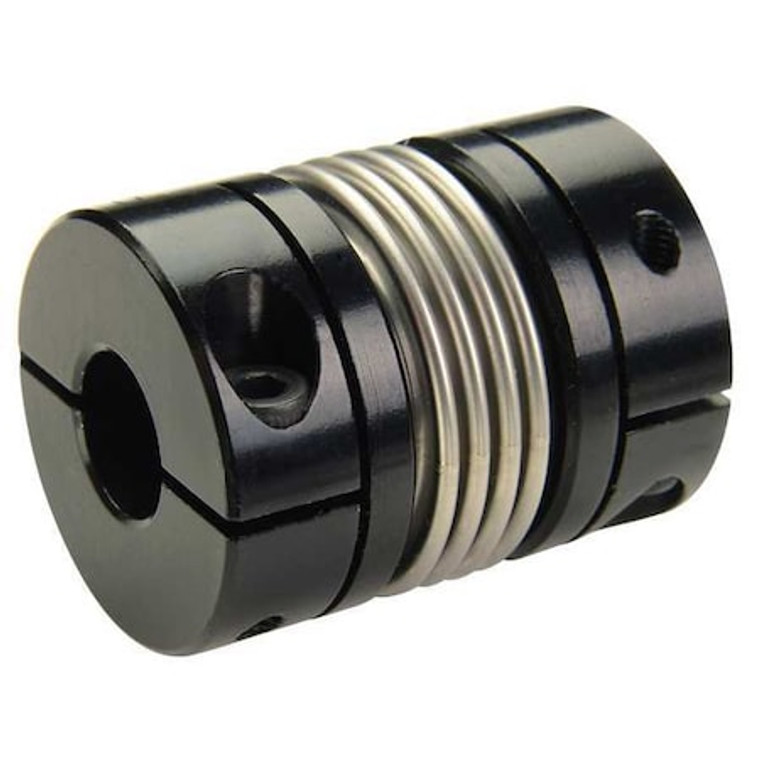

Coupling, Bellows Clamp, 9mmx9mm - MBC25-9-9-A
Motion Control Coupling, Bore Diameter 1 9 mm, Bore Diameter 2 9 mm, Coupling Outside Diameter 25.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 6.8 N-m, Hub Material Aluminum, Overall Length 33.3 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 25.4 mm, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 15.9 mm, Length Through Bore 2 15.9 mm, Parallel Misalignment 0.1 mm, Bore Type Round, Dynamic Torque Non-Reversing 3.4 N-m
- Country of Origin:
- United States
- Item:
- Motion Control Coupling
- Shaft Locking Type - Couplings:
- 1 Piece Clamp
- System of Measurement:
- Metric
- Bore Dia.:
- 9mm x 9mm
- Material - Couplings:
- Aluminum
- Outside Dia.:
- 25.4 mm
- Overall Length:
- 33.3 mm
- Finish:
- Black Anodized
- Overall Length (mm):
- 33.30
- Screw Size:
- M3
- Rated Torque:
- 60 in-lb
- Item - Motion Control Couplings:
- Motion Control Coupling
- Min. Bore (mm):
- 9.0
- Max. Angular Misalignment:
- 1.5 Degrees
- Screw Type:
- Cap Screw
- Length through Bore (In.):
- 0.656
- Torsional Stiffness (Deg./In.-Lbs.):
- 244
- Length through Bore:
- 16.6 mm
- Size:
- MBC25
- Outside Dia. (In.):
- 1.000
- Torque (In.-Lbs.):
- 60
- Length through Bore (mm):
- 16.6
- Clearance Dia. (In.):
- 1.0 in
- Max. Temp. Range (F):
- 200 Degrees
- Max. Bore (mm):
- 9 mm
- Overall Length (In.):
- 1.338
- Screw Size (mm):
- M3
- Max. Temp.:
- 200 Degrees F
- Max. Axial Misalignment (In.):
- +/-0.012
- Style:
- Bellows Clamp
- Clearance Dia. (mm):
- 25.4
- Outside Dia. (mm):
- 25.4
- Max. RPM:
- 10,000 RPM
- Max. Parallel Misalignment (In.):
- 0.004 in
- Material:
- Aluminum
- Standards:
- Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
- Application:
- Encoders, Stepper / Servo
- Screw Material:
- Alloy Steel
- Bore Tolerance:
- +0.03 mm / -0.00 mm
- Features:
- Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
- Different Bore Sizes:
- No
- Angular Misalignment:
- 1.5 Degrees
- Included Screws:
- (2) Hex Socket Cap Screw
- Axial Motion:
- 0.3 mm
- Maximum Speed:
- 10,000 RPM
- Dynamic Torque Non-Reversing:
- 3.4 N-m
- Torsional Stiffness:
- 27 N-m/Deg
- Bellows Material Finish:
- None
- Bellows Material Grade:
- MIL-A-8625 Type II; Class 2 and ASTM B580 Type B
- Minimum Operating Temperature:
- -40 Degrees C
- Hub Length:
- 11.85 mm
- Maximum Bore Diameter:
- 9 mm
- Zero Backlash:
- Yes
- Minimum Bore Diameter:
- 9 mm
- Shaft Locking Type:
- Clamp On
- Screw Thread Size:
- M3
- Bore Type:
- Round
- Length Through Bore 2:
- 15.9 mm
- Moment of Inertia:
- 0.00000272 kgf/m sq
- Screw Material Finish:
- Black Oxide
- Full Bearing Support Required:
- Yes
- Bore Diameter 2:
- 9 mm
- Hub Material Grade:
- 2024
- Bore Diameter 1:
- 9 mm
- Coupling Outside Diameter:
- 25.4 mm
- Number of Locking Screws:
- 2
- Bellows Material:
- Stainless Steel
- For Misalignment Type:
- Angular, Axial, Parallel
- Length Through Bore 1:
- 15.9 mm
- Hub Material Finish:
- Sulfuric Anodized MIL-A-8625 Type II; Class 2 and ASTM B580 Type B Black Anodize
- Dynamic Torque Reversing:
- 1.7 N-m
- Hub Material:
- Aluminum
- Maximum Operating Temperature:
- 93 Degrees C
- Fastener Tightening Torque:
- 2.1 N-m
- Parallel Misalignment:
- 0.1 mm
- Shaft Tolerance:
- +0.000 mm / -0.013 mm
- Maximum Torque:
- 6.8 N-m
- Clearance Diameter:
- 25.4 mm
- Package Quantity:
- 1
-
-
