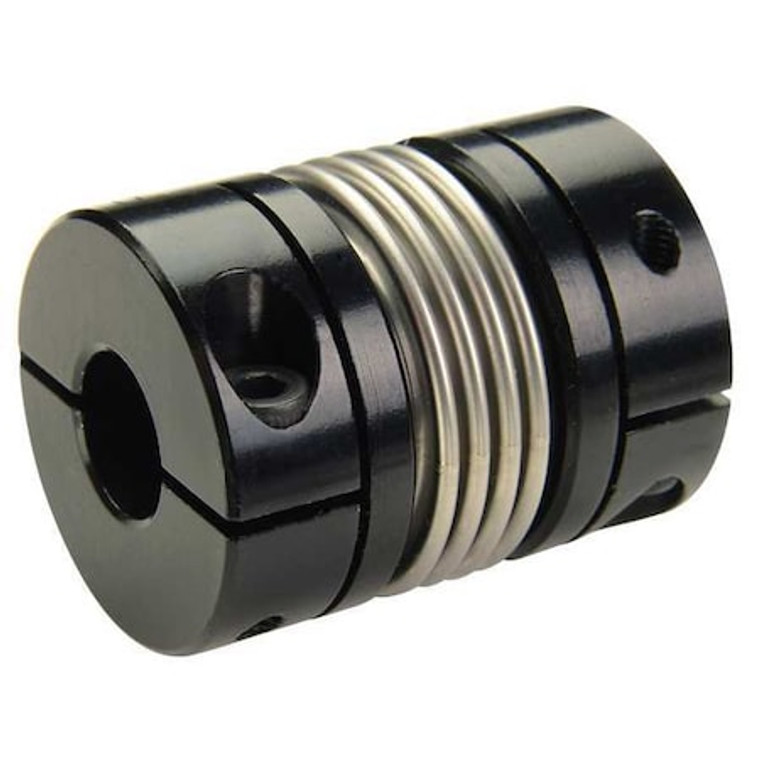

Coupling, Bellows Clamp, 25mmx15mm - MBC51-25-15-A

Coupling, Bellows Clamp, 25mmx15mm - MBC51-25-15-A

Ruland
SKU:
MBC51-25-15-A
|
UPC:
634529064429
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Bore Diameter 1 25 mm, Bore Diameter 2 15 mm, Coupling Outside Diameter 50.8 mm, Maximum Speed 10,000 RPM, Maximum Torque 45.2 N-m, Hub Material Aluminum, Overall Length 58.7 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 50.8 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 27.9 mm, Length Through Bore 2 27.9 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 22.6 N-m
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Metric
Bore Dia.:
25mm x 15mm
Material - Couplings:
Aluminum
Outside Dia.:
50.8 mm
Overall Length:
58.7 mm
Finish:
Black Anodized
Clearance Dia. (In.):
2 in
Torsional Stiffness (Deg./In.-Lbs.):
950
Size:
MBC51
Length through Bore (In.):
1.156
Length through Bore (mm):
29.3
Screw Type:
Cap Screw
Max. RPM:
10,000 RPM
Torque (In.-Lbs.):
400
Rated Torque:
400 in-lb
Style:
Bellows Clamp
Outside Dia. (In.):
2.000
Clearance Dia. (mm):
50.8
Screw Size:
M5
Max. Temp. Range (F):
200 Degrees
Outside Dia. (mm):
50.8
Max. Bore (mm):
25 mm
Item - Motion Control Couplings:
Motion Control Coupling
Screw Size (mm):
M5
Length through Bore:
29.3 mm
Max. Angular Misalignment:
2 Degrees
Overall Length (mm):
58.70
Overall Length (In.):
2.315
Max. Parallel Misalignment (In.):
0.01 in
Min. Bore (mm):
15.0
Max. Axial Misalignment (In.):
+/-0.020
Material:
Aluminum
Max. Temp.:
200 Degrees F
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
Application:
Encoders, Stepper / Servo
Bore Tolerance:
+0.03 mm / -0.00 mm
Screw Material:
Alloy Steel
Axial Motion:
0.5 mm
Features:
Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
Clearance Diameter:
50.8 mm
Minimum Bore Diameter:
15 mm
Bellows Material Grade:
MIL-A-8625 Type II; Class 2 and ASTM B580 Type B
Hub Material:
Aluminum
Different Bore Sizes:
Yes
Fastener Tightening Torque:
9.5 N-m
Maximum Bore Diameter:
25 mm
Hub Material Grade:
2024
Dynamic Torque Reversing:
11.3 N-m
Maximum Operating Temperature:
93 Degrees C
For Misalignment Type:
Angular, Axial, Parallel
Screw Thread Size:
M5
Screw Material Finish:
Black Oxide
Full Bearing Support Required:
Yes
Length Through Bore 1:
27.9 mm
Maximum Torque:
45.2 N-m
Shaft Tolerance:
+0.000 mm / -0.013 mm
Maximum Speed:
10,000 RPM
Bore Diameter 1:
25 mm
Shaft Locking Type:
Clamp On
Torsional Stiffness:
108 N-m/Deg
Moment of Inertia:
0.00007982 kgf/m sq
Bore Diameter 2:
15 mm
Parallel Misalignment:
0.25 mm
Hub Length:
20.55 mm
Minimum Operating Temperature:
-40 Degrees C
Coupling Outside Diameter:
50.8 mm
Angular Misalignment:
2 Degrees
Bellows Material Finish:
None
Hub Material Finish:
Sulfuric Anodized MIL-A-8625 Type II; Class 2 and ASTM B580 Type B Black Anodize
Bore Type:
Round
Zero Backlash:
Yes
Included Screws:
(2) Hex Socket Cap Screw
Length Through Bore 2:
27.9 mm
Dynamic Torque Non-Reversing:
22.6 N-m
Bellows Material:
Stainless Steel
Number of Locking Screws:
2
Package Quantity:
1
