Coupling, Bellows Clamp, 25mmx14mm - MBC51-25-14-A
Motion Control Coupling, Bore Diameter 1 25 mm, Bore Diameter 2 14 mm, Coupling Outside Diameter 50.8 mm, Maximum Speed 10,000 RPM, Maximum Torque 45.2 N-m, Hub Material Aluminum, Overall Length 58.7 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 50.8 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 27.9 mm, Length Through Bore 2 27.9 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 22.6 N-m
- Country of Origin:
- United States
- Item:
- Motion Control Coupling
- Shaft Locking Type - Couplings:
- 1 Piece Clamp
- System of Measurement:
- Metric
- Bore Dia.:
- 25mm x 14mm
- Material - Couplings:
- Aluminum
- Outside Dia.:
- 50.8 mm
- Overall Length:
- 58.7 mm
- Finish:
- Black Anodized
- Clearance Dia. (mm):
- 50.8
- Screw Type:
- Cap Screw
- Length through Bore (mm):
- 29.3
- Item - Motion Control Couplings:
- Motion Control Coupling
- Overall Length (mm):
- 58.70
- Torque (In.-Lbs.):
- 400
- Style:
- Bellows Clamp
- Screw Size (mm):
- M5
- Max. Bore (mm):
- 25 mm
- Screw Size:
- M5
- Min. Bore (mm):
- 14.0
- Material:
- Aluminum
- Length through Bore:
- 29.3 mm
- Length through Bore (In.):
- 1.156
- Overall Length (In.):
- 2.315
- Max. Angular Misalignment:
- 2 Degrees
- Size:
- MBC51
- Outside Dia. (In.):
- 2.000
- Max. Temp. Range (F):
- 200 Degrees
- Clearance Dia. (In.):
- 2 in
- Max. Parallel Misalignment (In.):
- 0.01 in
- Max. Axial Misalignment (In.):
- +/-0.020
- Outside Dia. (mm):
- 50.8
- Max. RPM:
- 10,000 RPM
- Rated Torque:
- 400 in-lb
- Torsional Stiffness (Deg./In.-Lbs.):
- 950
- Max. Temp.:
- 200 Degrees F
- Application:
- Encoders, Stepper / Servo
- Standards:
- Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
- Bore Tolerance:
- +0.03 mm / -0.00 mm
- Screw Material:
- Alloy Steel
- Included Screws:
- (2) Hex Socket Cap Screw
- Hub Material Finish:
- Sulfuric Anodized MIL-A-8625 Type II; Class 2 and ASTM B580 Type B Black Anodize
- Torsional Stiffness:
- 108 N-m/Deg
- Screw Thread Size:
- M5
- Full Bearing Support Required:
- Yes
- Maximum Speed:
- 10,000 RPM
- Hub Material:
- Aluminum
- Bore Type:
- Round
- Bore Diameter 1:
- 25 mm
- Shaft Tolerance:
- +0.000 mm / -0.013 mm
- Bellows Material Grade:
- MIL-A-8625 Type II; Class 2 and ASTM B580 Type B
- Length Through Bore 1:
- 27.9 mm
- Number of Locking Screws:
- 2
- Fastener Tightening Torque:
- 9.5 N-m
- Clearance Diameter:
- 50.8 mm
- Shaft Locking Type:
- Clamp On
- Zero Backlash:
- Yes
- Different Bore Sizes:
- Yes
- Maximum Torque:
- 45.2 N-m
- Axial Motion:
- 0.5 mm
- Bore Diameter 2:
- 14 mm
- Parallel Misalignment:
- 0.25 mm
- Angular Misalignment:
- 2 Degrees
- Features:
- Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
- Bellows Material Finish:
- None
- Hub Length:
- 20.55 mm
- For Misalignment Type:
- Angular, Axial, Parallel
- Coupling Outside Diameter:
- 50.8 mm
- Dynamic Torque Non-Reversing:
- 22.6 N-m
- Maximum Operating Temperature:
- 93 Degrees C
- Minimum Operating Temperature:
- -40 Degrees C
- Hub Material Grade:
- 2024
- Minimum Bore Diameter:
- 14 mm
- Dynamic Torque Reversing:
- 11.3 N-m
- Length Through Bore 2:
- 27.9 mm
- Screw Material Finish:
- Black Oxide
- Maximum Bore Diameter:
- 25 mm
- Moment of Inertia:
- 0.00007989 kgf/m sq
- Bellows Material:
- Stainless Steel
- Package Quantity:
- 1
-
-

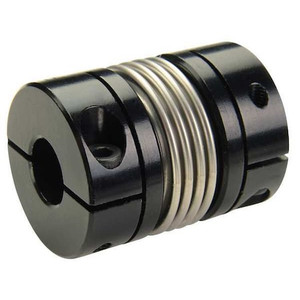

Coupling, Bellows Clamp, 25mmx15mm - MBC51-25-15-A
Manufacturer: Ruland
MFR # MBC51-25-15-A
Log in for pricing
-
Coupling, Bellows Clamp, 19mmx14mm - MBC51-19-14-A
Manufacturer: Ruland
MFR # MBC51-19-14-A
Log in for pricing
-

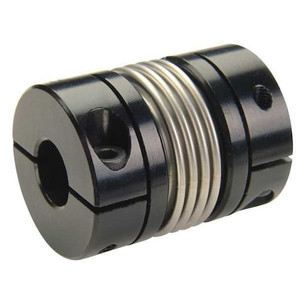

Coupling, Bellows Clamp, Bore 16x14 mm - MBC51-16-14-A
