Coupling, Bellows Clamp, 20mmx19mm - MBC41-20-19-A
RulandLog in for pricing
(No reviews yet)
Write a Review
Ruland
Coupling, Bellows Clamp, 20mmx19mm - MBC41-20-19-A
Motion Control Coupling, Bore Diameter 1 20 mm, Bore Diameter 2 19 mm, Coupling Outside Diameter 41.3 mm, Maximum Speed 10,000 RPM, Maximum Torque 28 N-m, Hub Material Aluminum, Overall Length 50.8 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 41.3 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 24 mm, Length Through Bore 2 24 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 14 N-m
- Country of Origin:
- United States
- Shaft Locking Type - Couplings:
- 1 Piece Clamp
- Item:
- Motion Control Coupling
- System of Measurement:
- Metric
- Bore Dia.:
- 20mm x 19mm
- Material - Couplings:
- Aluminum
- Outside Dia.:
- 41.3 mm
- Overall Length:
- 50.8 mm
- Finish:
- Black Anodized
- Length through Bore (In.):
- 1.000
- Style:
- Bellows Clamp
- Screw Type:
- Cap Screw
- Max. Temp. Range (F):
- 200 Degrees
- Overall Length (In.):
- 2.029
- Clearance Dia. (In.):
- 1.625 in
- Max. Temp.:
- 200 Degrees F
- Length through Bore (mm):
- 25.4
- Rated Torque:
- 250 in-lb
- Max. Angular Misalignment:
- 2 Degrees
- Overall Length (mm):
- 50.80
- Clearance Dia. (mm):
- 41.3
- Screw Size (mm):
- M4
- Item - Motion Control Couplings:
- Motion Control Coupling
- Max. Bore (mm):
- 20 mm
- Min. Bore (mm):
- 19.0
- Torque (In.-Lbs.):
- 250
- Length through Bore:
- 25.4 mm
- Material:
- Aluminum
- Max. Axial Misalignment (In.):
- +/-0.020
- Size:
- MBC41
- Max. Parallel Misalignment (In.):
- 0.01 in
- Max. RPM:
- 10,000 RPM
- Torsional Stiffness (Deg./In.-Lbs.):
- 550
- Screw Size:
- M4
- Outside Dia. (In.):
- 1.625
- Outside Dia. (mm):
- 41.3
- Application:
- Encoders, Stepper / Servo
- Standards:
- Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
- Screw Material:
- Alloy Steel
- Bore Tolerance:
- +0.03 mm / -0.00 mm
- Dynamic Torque Non-Reversing:
- 14 N-m
- Clearance Diameter:
- 41.3 mm
- Shaft Locking Type:
- Clamp On
- For Misalignment Type:
- Angular, Axial, Parallel
- Hub Length:
- 18.05 mm
- Torsional Stiffness:
- 63 N-m/Deg
- Bore Type:
- Round
- Maximum Operating Temperature:
- 93 Degrees C
- Axial Motion:
- 0.5 mm
- Bellows Material Finish:
- None
- Maximum Bore Diameter:
- 20 mm
- Minimum Operating Temperature:
- -40 Degrees C
- Moment of Inertia:
- 0.00002982 kgf/m sq
- Included Screws:
- (2) Hex Socket Cap Screw
- Bore Diameter 2:
- 19 mm
- Coupling Outside Diameter:
- 41.3 mm
- Hub Material:
- Aluminum
- Angular Misalignment:
- 2 Degrees
- Maximum Torque:
- 28 N-m
- Number of Locking Screws:
- 2
- Hub Material Finish:
- Sulfuric Anodized MIL-A-8625 Type II; Class 2 and ASTM B580 Type B Black Anodize
- Features:
- Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
- Fastener Tightening Torque:
- 4.6 N-m
- Full Bearing Support Required:
- Yes
- Minimum Bore Diameter:
- 19 mm
- Screw Material Finish:
- Black Oxide
- Different Bore Sizes:
- Yes
- Parallel Misalignment:
- 0.25 mm
- Zero Backlash:
- Yes
- Bellows Material Grade:
- MIL-A-8625 Type II; Class 2 and ASTM B580 Type B
- Shaft Tolerance:
- +0.000 mm / -0.013 mm
- Screw Thread Size:
- M4
- Length Through Bore 2:
- 24 mm
- Length Through Bore 1:
- 24 mm
- Maximum Speed:
- 10,000 RPM
- Dynamic Torque Reversing:
- 7 N-m
- Hub Material Grade:
- 2024
- Bore Diameter 1:
- 20 mm
- Bellows Material:
- Stainless Steel
- Package Quantity:
- 1
-
-
Coupling, Bellows Clamp, 19mmx19mm - MBC41-19-19-A
Manufacturer: Ruland
MFR # MBC41-19-19-A
Log in for pricing
-
Coupling, Bellows Clamp, 19mmx10mm - MBC41-19-10-A
Manufacturer: Ruland
MFR # MBC41-19-10-A
Log in for pricing
-

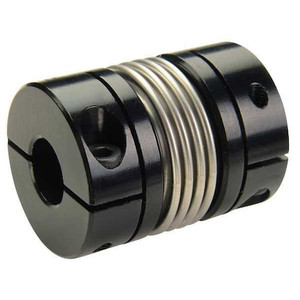

Coupling, Bellows Clamp, 19mmx14mm - MBC41-19-14-A
