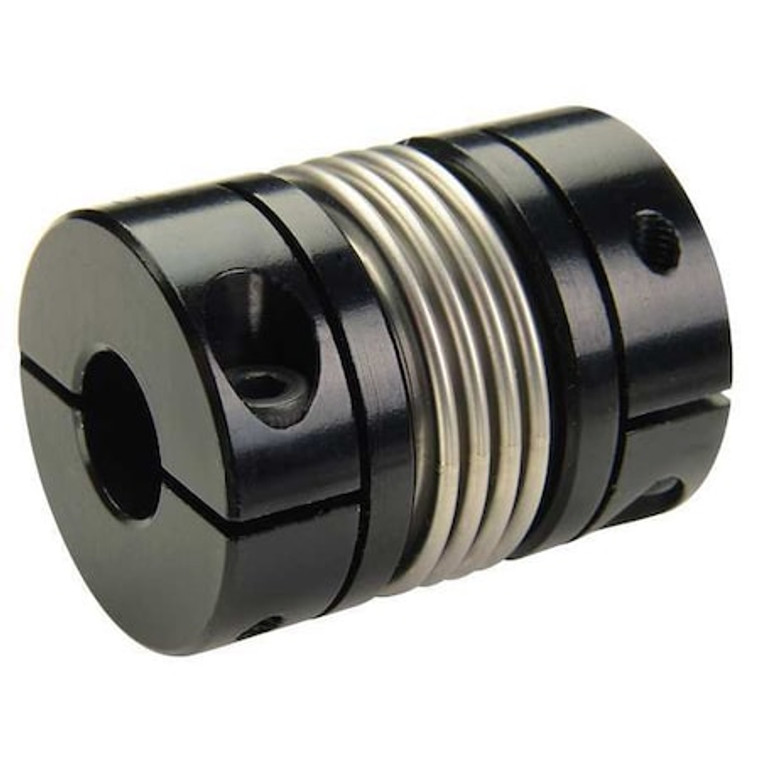

Coupling, Bellows Clamp, 19mmx14mm - MBC51-19-14-A

Coupling, Bellows Clamp, 19mmx14mm - MBC51-19-14-A

Ruland
SKU:
MBC51-19-14-A
|
UPC:
634529124468
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Bore Diameter 1 19 mm, Bore Diameter 2 14 mm, Coupling Outside Diameter 50.8 mm, Maximum Speed 10,000 RPM, Maximum Torque 45.2 N-m, Hub Material Aluminum, Overall Length 58.7 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 50.8 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 27.9 mm, Length Through Bore 2 27.9 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 22.6 N-m
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Motion Control Coupling
System of Measurement:
Metric
Bore Dia.:
19mm x 14mm
Material - Couplings:
Aluminum
Outside Dia.:
50.8 mm
Overall Length:
58.7 mm
Finish:
Black Anodized
Torsional Stiffness (Deg./In.-Lbs.):
950
Max. Bore (mm):
19 mm
Length through Bore (In.):
1.156
Outside Dia. (mm):
50.8
Max. Angular Misalignment:
2 Degrees
Max. RPM:
10,000 RPM
Torque (In.-Lbs.):
400
Overall Length (mm):
58.70
Size:
MBC51
Outside Dia. (In.):
2.000
Clearance Dia. (mm):
50.8
Clearance Dia. (In.):
2 in
Material:
Aluminum
Min. Bore (mm):
14.0
Length through Bore:
29.3 mm
Max. Axial Misalignment (In.):
+/-0.020
Max. Parallel Misalignment (In.):
0.01 in
Rated Torque:
400 in-lb
Screw Size (mm):
M5
Style:
Bellows Clamp
Max. Temp. Range (F):
200 Degrees
Screw Type:
Cap Screw
Max. Temp.:
200 Degrees F
Overall Length (In.):
2.315
Item - Motion Control Couplings:
Motion Control Coupling
Length through Bore (mm):
29.3
Screw Size:
M5
Application:
Encoders, Stepper / Servo
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
Screw Material:
Alloy Steel
Bore Tolerance:
+0.03 mm / -0.00 mm
Torsional Stiffness:
108 N-m/Deg
Maximum Bore Diameter:
19 mm
Different Bore Sizes:
Yes
Shaft Locking Type:
Clamp On
Minimum Operating Temperature:
-40 Degrees C
Screw Thread Size:
M5
Hub Material Finish:
Sulfuric Anodized MIL-A-8625 Type II; Class 2 and ASTM B580 Type B Black Anodize
Moment of Inertia:
0.00008125 kgf/m sq
Length Through Bore 2:
27.9 mm
For Misalignment Type:
Angular, Axial, Parallel
Features:
Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
Bellows Material Grade:
MIL-A-8625 Type II; Class 2 and ASTM B580 Type B
Shaft Tolerance:
+0.000 mm / -0.013 mm
Angular Misalignment:
2 Degrees
Bore Type:
Round
Full Bearing Support Required:
Yes
Maximum Speed:
10,000 RPM
Number of Locking Screws:
2
Maximum Torque:
45.2 N-m
Hub Material:
Aluminum
Clearance Diameter:
50.8 mm
Dynamic Torque Reversing:
11.3 N-m
Dynamic Torque Non-Reversing:
22.6 N-m
Screw Material Finish:
Black Oxide
Hub Material Grade:
2024
Minimum Bore Diameter:
14 mm
Bellows Material Finish:
None
Hub Length:
20.55 mm
Zero Backlash:
Yes
Bellows Material:
Stainless Steel
Bore Diameter 2:
14 mm
Coupling Outside Diameter:
50.8 mm
Fastener Tightening Torque:
9.5 N-m
Bore Diameter 1:
19 mm
Length Through Bore 1:
27.9 mm
Parallel Misalignment:
0.25 mm
Maximum Operating Temperature:
93 Degrees C
Included Screws:
(2) Hex Socket Cap Screw
Axial Motion:
0.5 mm
Package Quantity:
1
