Coupling, Bellows Clamp, 19mmx10mm - MBC41-19-10-A
RulandLog in for pricing
(No reviews yet)
Write a Review
Ruland
Coupling, Bellows Clamp, 19mmx10mm - MBC41-19-10-A
Motion Control Coupling, Bore Diameter 1 19 mm, Bore Diameter 2 10 mm, Coupling Outside Diameter 41.3 mm, Maximum Speed 10,000 RPM, Maximum Torque 28 N-m, Hub Material Aluminum, Overall Length 50.8 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 41.3 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 24 mm, Length Through Bore 2 24 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 14 N-m
- Country of Origin:
- United States
- Item:
- Motion Control Coupling
- Shaft Locking Type - Couplings:
- 1 Piece Clamp
- System of Measurement:
- Metric
- Bore Dia.:
- 19mm x 10mm
- Material - Couplings:
- Aluminum
- Outside Dia.:
- 41.3 mm
- Overall Length:
- 50.8 mm
- Finish:
- Black Anodized
- Style:
- Bellows Clamp
- Item - Motion Control Couplings:
- Motion Control Coupling
- Max. RPM:
- 10,000 RPM
- Screw Size:
- M4
- Outside Dia. (mm):
- 41.3
- Length through Bore:
- 25.4 mm
- Max. Temp. Range (F):
- 200 Degrees
- Rated Torque:
- 250 in-lb
- Max. Bore (mm):
- 19 mm
- Length through Bore (In.):
- 1.000
- Max. Axial Misalignment (In.):
- +/-0.020
- Torque (In.-Lbs.):
- 250
- Outside Dia. (In.):
- 1.625
- Max. Temp.:
- 200 Degrees F
- Screw Type:
- Cap Screw
- Material:
- Aluminum
- Size:
- MBC41
- Max. Angular Misalignment:
- 2 Degrees
- Overall Length (mm):
- 50.80
- Screw Size (mm):
- M4
- Clearance Dia. (mm):
- 41.3
- Max. Parallel Misalignment (In.):
- 0.01 in
- Min. Bore (mm):
- 10.0
- Torsional Stiffness (Deg./In.-Lbs.):
- 550
- Clearance Dia. (In.):
- 1.625 in
- Length through Bore (mm):
- 25.4
- Overall Length (In.):
- 2.029
- Standards:
- Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
- Application:
- Encoders, Stepper / Servo
- Bore Tolerance:
- +0.03 mm / -0.00 mm
- Screw Material:
- Alloy Steel
- Minimum Operating Temperature:
- -40 Degrees C
- Shaft Tolerance:
- +0.000 mm / -0.013 mm
- Length Through Bore 2:
- 24 mm
- Minimum Bore Diameter:
- 10 mm
- Features:
- Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
- Different Bore Sizes:
- Yes
- Axial Motion:
- 0.5 mm
- Maximum Speed:
- 10,000 RPM
- Hub Material Grade:
- 2024
- Clearance Diameter:
- 41.3 mm
- Coupling Outside Diameter:
- 41.3 mm
- Length Through Bore 1:
- 24 mm
- Dynamic Torque Non-Reversing:
- 14 N-m
- Hub Length:
- 18.05 mm
- Hub Material:
- Aluminum
- Hub Material Finish:
- Sulfuric Anodized MIL-A-8625 Type II; Class 2 and ASTM B580 Type B Black Anodize
- Included Screws:
- (2) Hex Socket Cap Screw
- Angular Misalignment:
- 2 Degrees
- Full Bearing Support Required:
- Yes
- Maximum Bore Diameter:
- 19 mm
- Screw Thread Size:
- M4
- Shaft Locking Type:
- Clamp On
- Screw Material Finish:
- Black Oxide
- Maximum Operating Temperature:
- 93 Degrees C
- Bore Diameter 2:
- 10 mm
- Bellows Material:
- Stainless Steel
- Number of Locking Screws:
- 2
- Zero Backlash:
- Yes
- For Misalignment Type:
- Angular, Axial, Parallel
- Parallel Misalignment:
- 0.25 mm
- Bellows Material Grade:
- MIL-A-8625 Type II; Class 2 and ASTM B580 Type B
- Bore Diameter 1:
- 19 mm
- Bellows Material Finish:
- None
- Bore Type:
- Round
- Torsional Stiffness:
- 63 N-m/Deg
- Moment of Inertia:
- 0.00003052 kgf/m sq
- Dynamic Torque Reversing:
- 7 N-m
- Maximum Torque:
- 28 N-m
- Fastener Tightening Torque:
- 4.6 N-m
- Package Quantity:
- 1
-
-

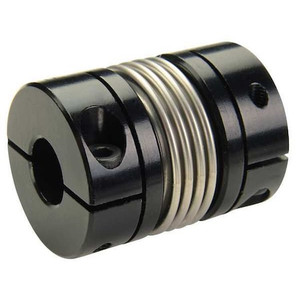

Coupling, Bellows Clamp, 10mmx10mm - MBC41-10-10-A
