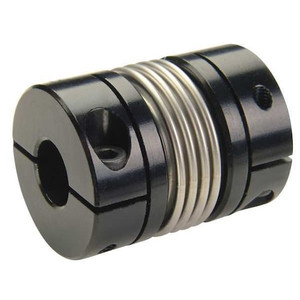

Coupling, Bellows Clamp, 17mmx14mm - MBC41-17-14-A
Motion Control Coupling, Bore Diameter 1 17 mm, Bore Diameter 2 14 mm, Coupling Outside Diameter 41.3 mm, Maximum Speed 10,000 RPM, Maximum Torque 28 N-m, Hub Material Aluminum, Overall Length 50.8 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 41.3 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 24 mm, Length Through Bore 2 24 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 14 N-m
- Country of Origin:
- United States
- Shaft Locking Type - Couplings:
- 1 Piece Clamp
- Item:
- Motion Control Coupling
- System of Measurement:
- Metric
- Bore Dia.:
- 17mm x 14mm
- Material - Couplings:
- Aluminum
- Outside Dia.:
- 41.3 mm
- Overall Length:
- 50.8 mm
- Finish:
- Black Anodized
- Max. Axial Misalignment (In.):
- +/-0.020
- Min. Bore (mm):
- 14.0
- Max. Temp. Range (F):
- 200 Degrees
- Overall Length (mm):
- 50.80
- Max. Bore (mm):
- 17 mm
- Screw Size (mm):
- M4
- Max. RPM:
- 10,000 RPM
- Torque (In.-Lbs.):
- 250
- Max. Temp.:
- 200 Degrees F
- Length through Bore (mm):
- 25.4
- Material:
- Aluminum
- Rated Torque:
- 250 in-lb
- Torsional Stiffness (Deg./In.-Lbs.):
- 550
- Screw Type:
- Cap Screw
- Overall Length (In.):
- 2.029
- Clearance Dia. (In.):
- 1.625 in
- Screw Size:
- M4
- Outside Dia. (mm):
- 41.3
- Length through Bore (In.):
- 1.000
- Clearance Dia. (mm):
- 41.3
- Item - Motion Control Couplings:
- Motion Control Coupling
- Max. Parallel Misalignment (In.):
- 0.01 in
- Style:
- Bellows Clamp
- Outside Dia. (In.):
- 1.625
- Length through Bore:
- 25.4 mm
- Size:
- MBC41
- Max. Angular Misalignment:
- 2 Degrees
- Application:
- Encoders, Stepper / Servo
- Standards:
- Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
- Bore Tolerance:
- +0.03 mm / -0.00 mm
- Screw Material:
- Alloy Steel
- Screw Material Finish:
- Black Oxide
- Number of Locking Screws:
- 2
- Hub Material Finish:
- Sulfuric Anodized MIL-A-8625 Type II; Class 2 and ASTM B580 Type B Black Anodize
- Maximum Speed:
- 10,000 RPM
- Fastener Tightening Torque:
- 4.6 N-m
- Maximum Operating Temperature:
- 93 Degrees C
- Bellows Material Finish:
- None
- Bore Type:
- Round
- Full Bearing Support Required:
- Yes
- Hub Material Grade:
- 2024
- Dynamic Torque Reversing:
- 7 N-m
- Dynamic Torque Non-Reversing:
- 14 N-m
- Screw Thread Size:
- M4
- Shaft Locking Type:
- Clamp On
- Angular Misalignment:
- 2 Degrees
- Axial Motion:
- 0.5 mm
- Length Through Bore 1:
- 24 mm
- Bore Diameter 1:
- 17 mm
- Hub Length:
- 18.05 mm
- Different Bore Sizes:
- Yes
- Shaft Tolerance:
- +0.000 mm / -0.013 mm
- Torsional Stiffness:
- 63 N-m/Deg
- Included Screws:
- (2) Hex Socket Cap Screw
- Maximum Bore Diameter:
- 17 mm
- Hub Material:
- Aluminum
- For Misalignment Type:
- Angular, Axial, Parallel
- Minimum Operating Temperature:
- -40 Degrees C
- Coupling Outside Diameter:
- 41.3 mm
- Length Through Bore 2:
- 24 mm
- Parallel Misalignment:
- 0.25 mm
- Bellows Material Grade:
- MIL-A-8625 Type II; Class 2 and ASTM B580 Type B
- Maximum Torque:
- 28 N-m
- Moment of Inertia:
- 0.0000306 kgf/m sq
- Bore Diameter 2:
- 14 mm
- Bellows Material:
- Stainless Steel
- Minimum Bore Diameter:
- 14 mm
- Clearance Diameter:
- 41.3 mm
- Zero Backlash:
- Yes
- Features:
- Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
- Package Quantity:
- 1
-
-
