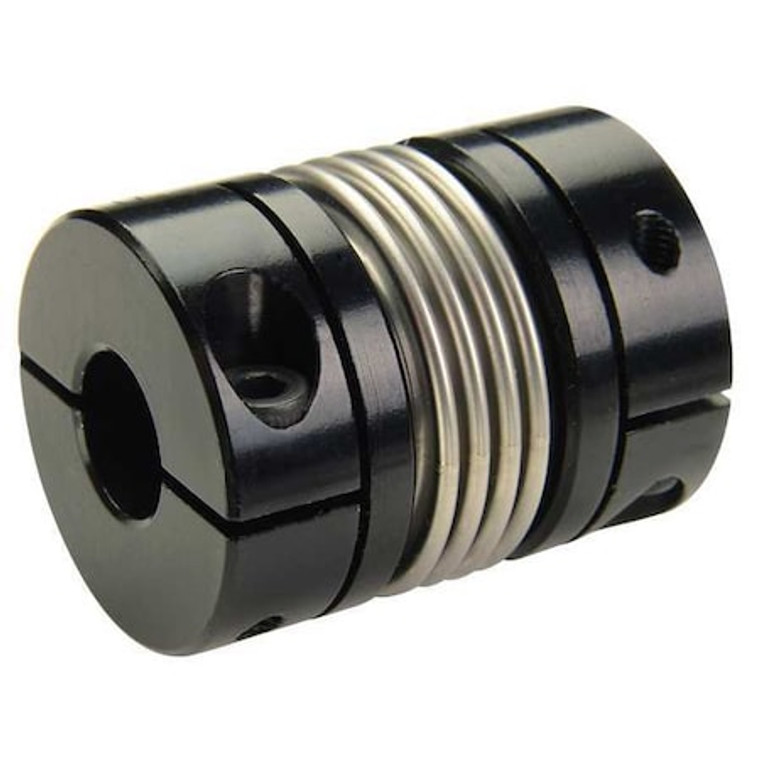

Coupling, Bellows Clamp, 15mmx12mm - MBC51-15-12-A
Motion Control Coupling, Bore Diameter 1 15 mm, Bore Diameter 2 12 mm, Coupling Outside Diameter 50.8 mm, Maximum Speed 10,000 RPM, Maximum Torque 45.2 N-m, Hub Material Aluminum, Overall Length 58.7 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 50.8 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 27.9 mm, Length Through Bore 2 27.9 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 22.6 N-m
- Country of Origin:
- United States
- Shaft Locking Type - Couplings:
- 1 Piece Clamp
- Item:
- Motion Control Coupling
- System of Measurement:
- Metric
- Bore Dia.:
- 15mm x 12mm
- Material - Couplings:
- Aluminum
- Outside Dia.:
- 50.8 mm
- Overall Length:
- 58.7 mm
- Finish:
- Black Anodized
- Max. Bore (mm):
- 15 mm
- Material:
- Aluminum
- Max. RPM:
- 10,000 RPM
- Max. Angular Misalignment:
- 2 Degrees
- Max. Axial Misalignment (In.):
- +/-0.020
- Torque (In.-Lbs.):
- 400
- Max. Temp. Range (F):
- 200 Degrees
- Style:
- Bellows Clamp
- Screw Type:
- Cap Screw
- Outside Dia. (mm):
- 50.8
- Torsional Stiffness (Deg./In.-Lbs.):
- 950
- Min. Bore (mm):
- 12.0
- Screw Size:
- M5
- Max. Parallel Misalignment (In.):
- 0.01 in
- Overall Length (In.):
- 2.315
- Overall Length (mm):
- 58.70
- Size:
- MBC51
- Rated Torque:
- 400 in-lb
- Outside Dia. (In.):
- 2.000
- Clearance Dia. (In.):
- 2 in
- Length through Bore (In.):
- 1.156
- Clearance Dia. (mm):
- 50.8
- Item - Motion Control Couplings:
- Motion Control Coupling
- Length through Bore (mm):
- 29.3
- Max. Temp.:
- 200 Degrees F
- Length through Bore:
- 29.3 mm
- Screw Size (mm):
- M5
- Application:
- Encoders, Stepper / Servo
- Standards:
- Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001
- Bore Tolerance:
- +0.03 mm / -0.00 mm
- Screw Material:
- Alloy Steel
- Bellows Material Finish:
- None
- Number of Locking Screws:
- 2
- Bore Diameter 2:
- 12 mm
- Length Through Bore 2:
- 27.9 mm
- Hub Length:
- 20.55 mm
- Moment of Inertia:
- 0.00008175 kgf/m sq
- Maximum Operating Temperature:
- 93 Degrees C
- Length Through Bore 1:
- 27.9 mm
- Coupling Outside Diameter:
- 50.8 mm
- Zero Backlash:
- Yes
- Torsional Stiffness:
- 108 N-m/Deg
- Clearance Diameter:
- 50.8 mm
- Axial Motion:
- 0.5 mm
- Dynamic Torque Non-Reversing:
- 22.6 N-m
- Angular Misalignment:
- 2 Degrees
- Dynamic Torque Reversing:
- 11.3 N-m
- Hub Material Finish:
- Sulfuric Anodized MIL-A-8625 Type II; Class 2 and ASTM B580 Type B Black Anodize
- Maximum Speed:
- 10,000 RPM
- Hub Material:
- Aluminum
- Screw Material Finish:
- Black Oxide
- Fastener Tightening Torque:
- 9.5 N-m
- Screw Thread Size:
- M5
- Parallel Misalignment:
- 0.25 mm
- Maximum Torque:
- 45.2 N-m
- Maximum Bore Diameter:
- 15 mm
- Full Bearing Support Required:
- Yes
- Features:
- Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
- Shaft Locking Type:
- Clamp On
- Bellows Material:
- Stainless Steel
- Bore Diameter 1:
- 15 mm
- Included Screws:
- (2) Hex Socket Cap Screw
- Hub Material Grade:
- 2024
- Different Bore Sizes:
- Yes
- Minimum Operating Temperature:
- -40 Degrees C
- Bore Type:
- Round
- Minimum Bore Diameter:
- 12 mm
- Bellows Material Grade:
- MIL-A-8625 Type II; Class 2 and ASTM B580 Type B
- Shaft Tolerance:
- +0.000 mm / -0.013 mm
- For Misalignment Type:
- Angular, Axial, Parallel
- Package Quantity:
- 1
-
-
