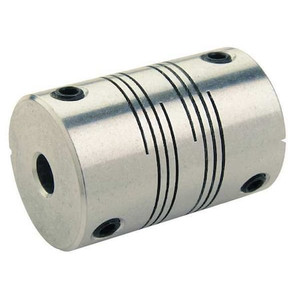

Coupling, 6 Beam Set Screw, 8mmx8mm - FSMR32-8-8-A

Coupling, 6 Beam Set Screw, 8mmx8mm - FSMR32-8-8-A

Ruland
SKU:
FSMR32-8-8-A
|
UPC:
634529011102
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 8 mm, Bore Diameter 2 8 mm, Coupling Material Aluminum, Coupling Outside Diameter 31.8 mm, Maximum Speed 6,000 RPM, Maximum Torque 7.91 N-m, Axial Motion 0.25 mm, Overall Length 44.5 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 3.23 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 21.4 in
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Set Screw
System of Measurement:
Metric
Bore Dia.:
8mm x 8mm
Material - Couplings:
Aluminum
Outside Dia.:
31.8 mm
Overall Length:
44.5 mm
Finish:
Bright
Max. Temp.:
225 Degrees F
Clearance Dia. (In.):
1.117 in
Overall Length (In.):
1.75
Outside Dia. (In.):
1.25
Overall Length (mm):
44.5
Length through Bore (mm):
20.82
Screw Type:
Set Screw
Screw Size (mm):
M6
Max. Parallel Misalignment (In.):
0.015 in
Length through Bore (In.):
0.82
Max. Bore (mm):
8 mm
Setscrew Location:
2 (120 Degrees )
Max. Axial Misalignment (In.):
+/-0.01
Material:
Aluminum
Style:
6-Beam Set Screw
Outside Dia. (mm):
31.8
Item - Motion Control Couplings:
Motion Control Coupling
Rated Torque:
70 in-lb
Torsional Stiffness (Deg./In.-Lbs.):
0.035
Clearance Dia. (mm):
28.37
Min. Bore (mm):
8
Torque (In.-Lbs.):
70
Length through Bore:
20.82 mm
Size:
FSMR32
Screw Size:
M6
Max. Angular Misalignment:
3 Degrees
Max. RPM:
6,000 RPM
Max. Temp. Range (F):
225 Degrees
Standards:
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Bore Tolerance:
+0.025/-0.000 mm
Screw Material:
Alloy Steel
Length Through Bore 2:
21.4 in
Dynamic Torque Non-Reversing:
3.96 N-m
Shaft Tolerance:
+0.000/-0.013 mm
Maximum Operating Temperature:
107 Degrees C
Coupling Outside Diameter:
31.8 mm
For Misalignment Type:
Angular, Axial, Parallel
Coupling Material:
Aluminum
Coupling Material Grade:
7075
Number of Locking Screws:
4
Torsional Stiffness:
3.23 N-m/Deg
Number of Beams:
6
Zero Backlash:
Yes
Coupling Material Finish:
Bright
Bore Type:
Round
Parallel Misalignment:
0.38 mm
Angular Misalignment:
3 Degrees
Shaft Locking Type:
Set Screw
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Screw Thread Size:
M6
Full Bearing Support Required:
Yes
Bore Diameter 1:
8 mm
Maximum Speed:
6,000 RPM
Length Through Bore 1:
21.4 in
Fastener Tightening Torque:
7.2 N-m
Included Screws:
(4) Set Screw
Axial Motion:
0.25 mm
Screw Material Finish:
Black Oxide
Features:
Balanced Design for Reduced Vibration
Maximum Torque:
7.91 N-m
Series:
FSMR
Different Bore Sizes:
No
Moment of Inertia:
0.000011885 kgf/m sq
Minimum Operating Temperature:
-40 Degrees C
Bore Diameter 2:
8 mm
Dynamic Torque Reversing:
1.98 N-m
Package Quantity:
1
