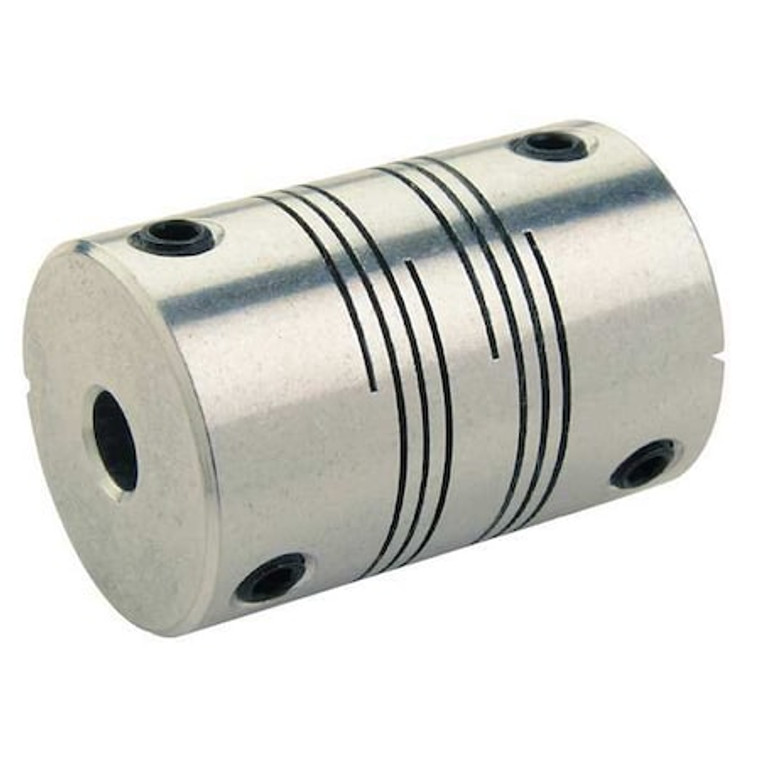

Coupling, 6 Beam Set Screw, 6mmx6mm - FSMR19-6-6-SS

Coupling, 6 Beam Set Screw, 6mmx6mm - FSMR19-6-6-SS

Ruland
SKU:
FSMR19-6-6-SS
|
UPC:
634529046029
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 6 mm, Bore Diameter 2 6 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 19.1 mm, Maximum Speed 6,000 RPM, Maximum Torque 4.64 N-m, Axial Motion 0.13 mm, Overall Length 31.8 mm, Parallel Misalignment 0.2 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 1.43 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 15.4 mm
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Set Screw
Item:
Motion Control Coupling
System of Measurement:
Metric
Bore Dia.:
6mm x 6mm
Material - Couplings:
Stainless Steel
Outside Dia.:
19.1 mm
Overall Length:
31.8 mm
Finish:
Bright
Max. RPM:
6,000 RPM
Style:
6-Beam Set Screw
Screw Size (mm):
M4
Screw Type:
Set Screw
Max. Axial Misalignment (In.):
+/-0.005
Rated Torque:
41 in-lb
Material:
Stainless Steel
Overall Length (In.):
1.25
Clearance Dia. (In.):
0.879 in
Size:
FSMR19
Overall Length (mm):
31.8
Torque (In.-Lbs.):
41
Max. Temp.:
350 Degrees F
Length through Bore:
15.06 mm
Max. Angular Misalignment:
3 Degrees
Item - Motion Control Couplings:
Motion Control Coupling
Clearance Dia. (mm):
22.33
Min. Bore (mm):
6
Screw Size:
M4
Max. Temp. Range (F):
350 Degrees
Outside Dia. (In.):
0.75
Length through Bore (In.):
0.593
Outside Dia. (mm):
19.1
Max. Parallel Misalignment (In.):
0.008 in
Max. Bore (mm):
6 mm
Length through Bore (mm):
15.06
Torsional Stiffness (Deg./In.-Lbs.):
0.079
Setscrew Location:
2 (120 Degrees )
Standards:
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Screw Material:
Alloy Steel
Bore Tolerance:
+0.025/-0.000 mm
Coupling Material Finish:
Bright
Series:
FSMR
Length Through Bore 2:
15.4 mm
Features:
Balanced Design for Reduced Vibration
Dynamic Torque Reversing:
1.16 N-m
Maximum Torque:
4.64 N-m
Included Screws:
(2) Set Screw
Maximum Speed:
6,000 RPM
Shaft Tolerance:
+0.000/-0.013 mm
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Coupling Outside Diameter:
19.1 mm
Parallel Misalignment:
0.2 mm
Torsional Stiffness:
1.43 N-m/Deg
Bore Diameter 1:
6 mm
Screw Thread Size:
M4
Number of Beams:
6
For Misalignment Type:
Angular, Axial, Parallel
Bore Diameter 2:
6 mm
Coupling Material:
Stainless Steel
Minimum Operating Temperature:
-40 Degrees C
Bore Type:
Round
Zero Backlash:
Yes
Shaft Locking Type:
Set Screw
Coupling Material Grade:
303
Axial Motion:
0.13 mm
Moment of Inertia:
0.000002964 kgf/m sq
Screw Material Finish:
Black Oxide
Number of Locking Screws:
2
Angular Misalignment:
3 Degrees
Different Bore Sizes:
No
Maximum Operating Temperature:
176 Degrees C
Full Bearing Support Required:
Yes
Fastener Tightening Torque:
1.76 N-m
Dynamic Torque Non-Reversing:
2.32 N-m
Length Through Bore 1:
15.4 mm
Package Quantity:
1
