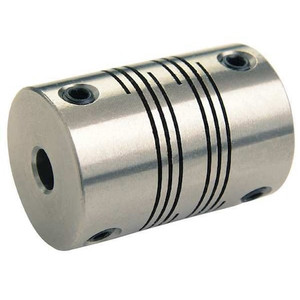

Coupling, 6 Beam Set Screw, 3/8in.x 3/8in. - FSR24-6-6-A

Coupling, 6 Beam Set Screw, 3/8in.x 3/8in. - FSR24-6-6-A

Ruland
SKU:
FSR24-6-6-A
|
UPC:
634529011690
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 3/8 in, Bore Diameter 2 3/8 in, Coupling Material Aluminum, Coupling Outside Diameter 1 1/2 in, Maximum Speed 6,000 RPM, Maximum Torque 120 in-lb, Axial Motion 0.015 in, Overall Length 2 1/4 in, Parallel Misalignment 0.03 in, System of Measurement Inch, Different Bore Sizes No, Torsional Stiffness 45.45 in-lb/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 1.1 mm
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Set Screw
Item:
Motion Control Coupling
System of Measurement:
Inch
Bore Dia.:
3/8 in x 3/8 in
Material - Couplings:
Aluminum
Outside Dia.:
1.5 in
Overall Length:
2 1/4 in
Finish:
Bright
Max. Axial Misalignment (In.):
+/-0.015
Clearance Dia. (mm):
41.71
Torsional Stiffness (Deg./In.-Lbs.):
0.022
Length through Bore (mm):
26.47
Max. Temp. Range (F):
225 Degrees
Clearance Dia. (In.):
1.642 in
Size:
FSR24
Max. Bore (In.):
0.375 in
Max. Parallel Misalignment (In.):
0.03 in
Max. RPM:
6,000 RPM
Item - Motion Control Couplings:
Motion Control Coupling
Style:
6-Beam Set Screw
Min. Bore (In.):
0.375 in
Length through Bore (In.):
1.042
Outside Dia. (mm):
38.1
Max. Angular Misalignment:
3 Degrees
Torque (In.-Lbs.):
120
Material:
Aluminum
Outside Dia. (In.):
1.5
Screw Size:
M6
Max. Temp.:
225 Degrees F
Screw Size (mm):
M6
Overall Length (In.):
2.25
Rated Torque:
120 in-lb
Setscrew Location:
2 (120 Degrees )
Screw Type:
Set Screw
Length through Bore:
1.042 in
Overall Length (mm):
57.2
Standards:
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Screw Material:
Alloy Steel
Bore Tolerance:
+0.001/-0.000 in
Shaft Locking Type:
Set Screw
Coupling Material Grade:
7075
Bore Type:
Round
Screw Thread Size:
M6
Axial Motion:
0.015 in
Full Bearing Support Required:
Yes
Dynamic Torque Non-Reversing:
60 lb-in
Torsional Stiffness:
45.45 in-lb/Deg
Maximum Torque:
120 in-lb
Number of Locking Screws:
4
Zero Backlash:
Yes
Maximum Speed:
6,000 RPM
Shaft Tolerance:
+0.0000/-0.0005 in
Coupling Outside Diameter:
1 1/2 in
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Fastener Tightening Torque:
7.2 N-m
Moment of Inertia:
0.1023 lb-in sq
Dynamic Torque Reversing:
30 lb-in
Screw Material Finish:
Black Oxide
Angular Misalignment:
3 Degrees
For Misalignment Type:
Angular, Axial, Parallel
Bore Diameter 1:
3/8 in
Minimum Operating Temperature:
-40 Degrees F
Number of Beams:
6
Series:
FSR
Coupling Material Finish:
Bright
Features:
Balanced Design for Reduced Vibration
Parallel Misalignment:
0.03 in
Included Screws:
(4) Set Screw
Length Through Bore 2:
1.1 mm
Coupling Material:
Aluminum
Length Through Bore 1:
1.1 mm
Bore Diameter 2:
3/8 in
Different Bore Sizes:
No
Maximum Operating Temperature:
225 Degrees F
Package Quantity:
1
