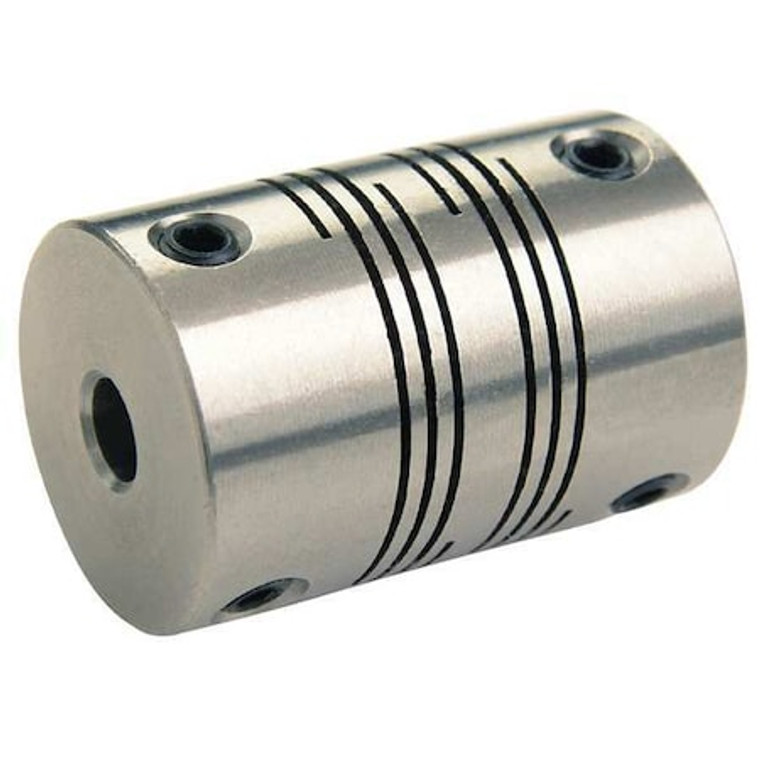

Coupling, 6 Beam Set Screw, 3/8in.x 3/8in. - FSR20-6-6-SS

Coupling, 6 Beam Set Screw, 3/8in.x 3/8in. - FSR20-6-6-SS

Ruland
SKU:
FSR20-6-6-SS
|
UPC:
634529047088
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 3/8 in, Bore Diameter 2 3/8 in, Coupling Material Stainless Steel, Coupling Outside Diameter 1 1/4 in, Maximum Speed 6,000 RPM, Maximum Torque 129 in-lb, Axial Motion 0.01 in, Overall Length 1 21/64 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Different Bore Sizes No, Torsional Stiffness 43.48 in-lb/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 0.8 in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Set Screw
Item:
Motion Control Coupling
System of Measurement:
Inch
Bore Dia.:
3/8 in x 3/8 in
Material - Couplings:
Stainless Steel
Outside Dia.:
1.25 in
Overall Length:
1 21/64 in
Finish:
Bright
Rated Torque:
129 in-lb
Overall Length (In.):
1.75
Overall Length (mm):
44.5
Style:
6-Beam Set Screw
Clearance Dia. (mm):
22.33
Torque (In.-Lbs.):
129
Outside Dia. (In.):
1.25
Max. Bore (In.):
0.375 in
Length through Bore (In.):
0.82
Max. RPM:
6,000 RPM
Size:
FSR20
Screw Size (mm):
M6
Outside Dia. (mm):
31.8
Length through Bore:
0.82 in
Clearance Dia. (In.):
0.879 in
Screw Size:
M6
Max. Parallel Misalignment (In.):
0.015 in
Max. Axial Misalignment (In.):
+/-0.01
Screw Type:
Set Screw
Max. Angular Misalignment:
3 Degrees
Max. Temp. Range (F):
350 Degrees
Item - Motion Control Couplings:
Motion Control Coupling
Length through Bore (mm):
20.82
Max. Temp.:
350 Degrees F
Material:
Stainless Steel
Setscrew Location:
2 (120 Degrees )
Torsional Stiffness (Deg./In.-Lbs.):
0.023
Min. Bore (In.):
0.375 in
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Bore Tolerance:
+0.001/-0.000 in
Screw Material:
Alloy Steel
Bore Diameter 1:
3/8 in
Series:
FSR
Parallel Misalignment:
0.015 in
For Misalignment Type:
Angular, Axial, Parallel
Axial Motion:
0.01 in
Coupling Material Grade:
303
Included Screws:
(4) Set Screw
Coupling Material:
Stainless Steel
Fastener Tightening Torque:
7.2 N-m
Number of Locking Screws:
4
Dynamic Torque Reversing:
32.25 lb-in
Number of Beams:
6
Shaft Locking Type:
Set Screw
Maximum Torque:
129 in-lb
Length Through Bore 2:
0.8 in
Dynamic Torque Non-Reversing:
64.5 lb-in
Zero Backlash:
Yes
Length Through Bore 1:
0.8 in
Bore Diameter 2:
3/8 in
Different Bore Sizes:
No
Maximum Speed:
6,000 RPM
Torsional Stiffness:
43.48 in-lb/Deg
Maximum Operating Temperature:
350 Degrees F
Full Bearing Support Required:
Yes
Screw Thread Size:
M6
Minimum Operating Temperature:
-40 Degrees F
Coupling Outside Diameter:
1 1/4 in
Bore Type:
Round
Features:
Balanced Design for Reduced Vibration
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Angular Misalignment:
3 Degrees
Shaft Tolerance:
+0.0000/-0.0005 in
Screw Material Finish:
Black Oxide
Moment of Inertia:
0.1094 lb-in sq
Coupling Material Finish:
Bright
Package Quantity:
1
