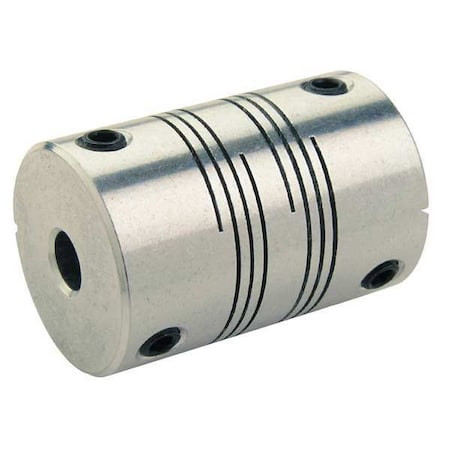

Coupling, 6 Beam Set Screw, 10mmx10mm - FSMR32-10-10-SS

Coupling, 6 Beam Set Screw, 10mmx10mm - FSMR32-10-10-SS

Ruland
SKU:
FSMR32-10-10-SS
|
UPC:
634529046371
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 10 mm, Bore Diameter 2 10 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 31.8 mm, Maximum Speed 6,000 RPM, Maximum Torque 16.08 N-m, Axial Motion 0.25 mm, Overall Length 44.5 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 6.67 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 21.4 mm
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Set Screw
Item:
Motion Control Coupling
System of Measurement:
Metric
Bore Dia.:
10mm x 10mm
Material - Couplings:
Stainless Steel
Outside Dia.:
31.8 mm
Overall Length:
44.5 mm
Finish:
Bright
Item - Motion Control Couplings:
Motion Control Coupling
Torque (In.-Lbs.):
142
Clearance Dia. (In.):
1.642 in
Overall Length (In.):
1.75
Min. Bore (mm):
10
Screw Size (mm):
M6
Max. Temp.:
350 Degrees F
Length through Bore (mm):
20.82
Max. Angular Misalignment:
3 Degrees
Size:
FSMR32
Length through Bore:
20.82 mm
Outside Dia. (mm):
31.8
Torsional Stiffness (Deg./In.-Lbs.):
0.017
Screw Size:
M6
Material:
Stainless Steel
Overall Length (mm):
44.5
Length through Bore (In.):
0.82
Outside Dia. (In.):
1.25
Max. Bore (mm):
10 mm
Setscrew Location:
2 (120 Degrees )
Max. RPM:
6,000 RPM
Max. Axial Misalignment (In.):
+/-0.01
Screw Type:
Set Screw
Clearance Dia. (mm):
41.71
Max. Temp. Range (F):
350 Degrees
Style:
6-Beam Set Screw
Max. Parallel Misalignment (In.):
0.015 in
Rated Torque:
142 in-lb
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Screw Material:
Alloy Steel
Bore Tolerance:
+0.025/-0.000 mm
For Misalignment Type:
Angular, Axial, Parallel
Length Through Bore 2:
21.4 mm
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Different Bore Sizes:
No
Screw Thread Size:
M6
Bore Type:
Round
Coupling Outside Diameter:
31.8 mm
Coupling Material:
Stainless Steel
Screw Material Finish:
Black Oxide
Fastener Tightening Torque:
7.2 N-m
Parallel Misalignment:
0.38 mm
Bore Diameter 2:
10 mm
Torsional Stiffness:
6.67 N-m/Deg
Full Bearing Support Required:
Yes
Dynamic Torque Non-Reversing:
8.04 N-m
Minimum Operating Temperature:
-40 Degrees C
Maximum Torque:
16.08 N-m
Bore Diameter 1:
10 mm
Shaft Locking Type:
Set Screw
Coupling Material Grade:
303
Angular Misalignment:
3 Degrees
Included Screws:
(4) Set Screw
Features:
Balanced Design for Reduced Vibration
Coupling Material Finish:
Bright
Number of Locking Screws:
4
Length Through Bore 1:
21.4 mm
Series:
FSMR
Number of Beams:
6
Axial Motion:
0.25 mm
Shaft Tolerance:
+0.000/-0.013 mm
Maximum Operating Temperature:
176 Degrees C
Maximum Speed:
6,000 RPM
Moment of Inertia:
0.000032426 kgf/m sq
Zero Backlash:
Yes
Dynamic Torque Reversing:
4.02 N-m
Package Quantity:
1
