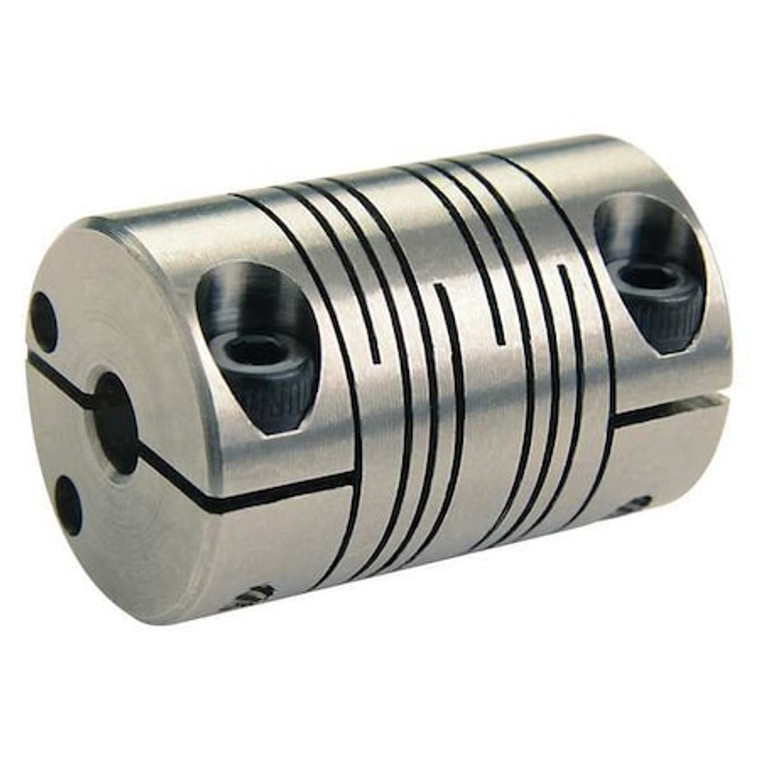

Coupling, 6 Beam Clamp, Bore 5/16x5/16 In - FCR20-5-5-SS

Coupling, 6 Beam Clamp, Bore 5/16x5/16 In - FCR20-5-5-SS

Ruland
SKU:
FCR20-5-5-SS
|
UPC:
634529041628
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 5/16 in, Bore Diameter 2 5/16 in, Coupling Material Stainless Steel, Coupling Outside Diameter 1 1/4 in, Maximum Speed 6,000 RPM, Maximum Torque 142 in-lb, Axial Motion 0.01 in, Overall Length 1 3/4 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Different Bore Sizes No, Torsional Stiffness 58.82 in-lb/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 0.8 in
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Inch
Bore Dia.:
5/16 in x 5/16 in
Material - Couplings:
Stainless Steel
Outside Dia.:
1.25 in
Overall Length:
1 3/4 in
Finish:
Bright
Length through Bore:
0.875 in
Torque (In.-Lbs.):
142
Length through Bore (In.):
0.875
Max. Parallel Misalignment (In.):
0.015 in
Max. Temp.:
350 Degrees F
Style:
6 Beam Clamp
Material:
Stainless Steel
Screw Size:
M6
Max. Angular Misalignment:
3 Degrees
Torsional Stiffness (Deg./In.-Lbs.):
0.017
Item - Motion Control Couplings:
Motion Control Coupling
Overall Length (In.):
1.75
Outside Dia. (In.):
1.250
Max. RPM:
6,000 RPM
Max. Axial Misalignment (In.):
+/-0.010
Screw Type:
Cap Screw
Screw Size (mm):
M6
Max. Temp. Range (F):
350
Clearance Dia. (In.):
1.459 in
Rated Torque:
142 in-lb
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Bore Tolerance:
+0.001/-0.000 in
Screw Material:
Alloy Steel with Nypatch
Parallel Misalignment:
0.015 in
Bore Diameter 1:
5/16 in
Bore Type:
Round
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single or Four Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Spiral Coupling With Nypatch Anti-Vibration Hardware, Two Sets of Three Spira
Length Through Bore 1:
0.8 in
Maximum Operating Temperature:
350 Degrees F
Dynamic Torque Non-Reversing:
71 lb-in
Maximum Speed:
6,000 RPM
Fastener Tightening Torque:
9.5 N-m
Angular Misalignment:
3 Degrees
Coupling Material Finish:
Bright
Torsional Stiffness:
58.82 in-lb/Deg
Series:
FCR
Number of Beams:
6
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Shaft Locking Type:
Clamp On
Number of Locking Screws:
2
Zero Backlash:
Yes
Full Bearing Support Required:
Yes
Shaft Tolerance:
+0.0000/-0.0005 in
For Misalignment Type:
Angular, Axial, Parallel
Bore Diameter 2:
5/16 in
Coupling Material:
Stainless Steel
Length Through Bore 2:
0.8 in
Moment of Inertia:
0.1094 lb-in sq
Included Screws:
(2) Hex Socket Cap Screw
Different Bore Sizes:
No
Screw Material Finish:
Black Oxide
Axial Motion:
0.01 in
Maximum Torque:
142 in-lb
Coupling Material Grade:
303
Screw Thread Size:
M5
Minimum Operating Temperature:
-40 Degrees F
Dynamic Torque Reversing:
35.5 lb-in
Coupling Outside Diameter:
1 1/4 in
Package Quantity:
1
