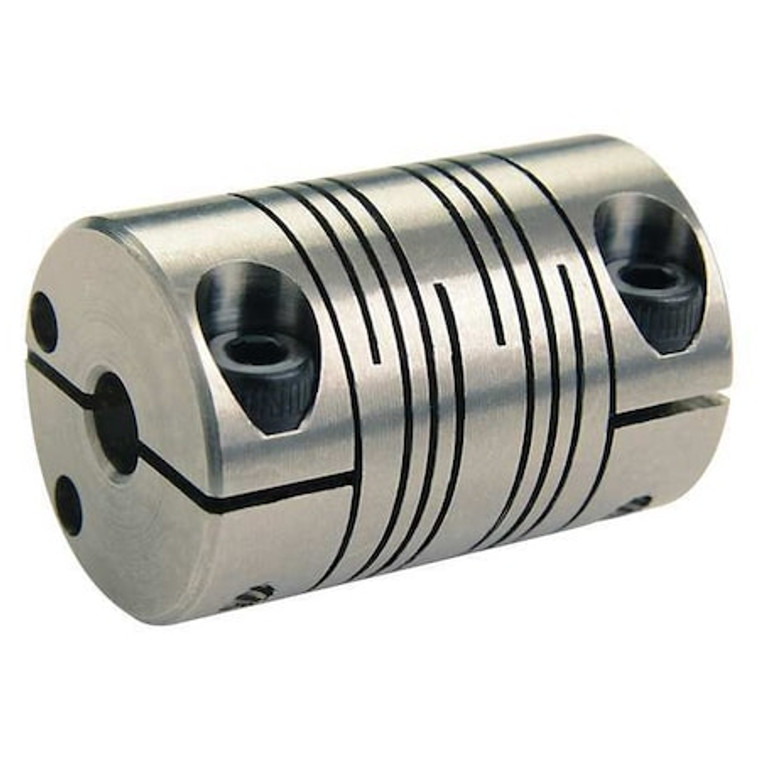

Coupling, 6 Beam Clamp, Bore 5/16 x 1/4 In - FCR12-5-4-SS

Coupling, 6 Beam Clamp, Bore 5/16 x 1/4 In - FCR12-5-4-SS

Ruland
SKU:
FCR12-5-4-SS
|
UPC:
634529044094
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 5/16 in, Bore Diameter 2 1/4 in, Coupling Material Stainless Steel, Coupling Outside Diameter 3/4 in, Maximum Speed 6,000 RPM, Maximum Torque 31 in-lb, Axial Motion 0.005 in, Overall Length 1 1/4 in, Parallel Misalignment 0.008 in, System of Measurement Inch, Different Bore Sizes Yes, Torsional Stiffness 10.42 in-lb/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 0.6 in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Bore Dia.:
5/16 in x 1/4 in
Rated Torque:
31 in-lb
Max. RPM:
6,000 RPM
Outside Dia.:
0.75 in
Overall Length:
1 1/4 in
Material - Couplings:
Stainless Steel
Torque (In.-Lbs.):
31
Item:
Motion Control Coupling
Style:
6 Beam Clamp
Overall Length (In.):
1.25
Clearance Dia. (In.):
0.879 in
Finish:
Bright
Max. Angular Misalignment:
3 Degrees
Length through Bore (In.):
0.625
Item - Motion Control Couplings:
Motion Control Coupling
Max. Parallel Misalignment (In.):
0.008 in
Screw Size:
M4
Max. Axial Misalignment (In.):
+/-0.005
Screw Type:
Cap Screw
Screw Size (mm):
M4
Torsional Stiffness (Deg./In.-Lbs.):
0.096
Max. Temp. Range (F):
350
Length through Bore:
0.625 in
Max. Temp.:
350 Degrees F
Outside Dia. (In.):
0.75
Material:
Stainless Steel
Bore Tolerance:
+0.001/-0.000 in
Axial Motion:
0.005 in
Screw Material:
Alloy Steel with Nypatch
Dynamic Torque Reversing:
7.75 lb-in
Moment of Inertia:
0.01 lb-in sq
Dynamic Torque Non-Reversing:
15.5 lb-in
Number of Locking Screws:
2
System of Measurement:
Inch
Maximum Speed:
6,000 RPM
Bore Diameter 2:
1/4 in
Coupling Outside Diameter:
3/4 in
Maximum Torque:
31 in-lb
Shaft Locking Type:
Clamp On
Series:
FCR
Bore Type:
Round
Zero Backlash:
Yes
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single or Four Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Spiral Coupling With Nypatch Anti-Vibration Hardware, Two Sets of Three Spira
Screw Material Finish:
Black Oxide
Shaft Tolerance:
+0.0000/-0.0005 in
Bore Diameter 1:
5/16 in
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Coupling Material:
Stainless Steel
Angular Misalignment:
3 Degrees
Torsional Stiffness:
10.42 in-lb/Deg
Coupling Material Grade:
303
Parallel Misalignment:
0.008 in
Different Bore Sizes:
Yes
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Length Through Bore 1:
0.6 in
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Maximum Operating Temperature:
350 Degrees F
Screw Thread Size:
M3
Full Bearing Support Required:
Yes
Included Screws:
(2) Hex Socket Cap Screw
For Misalignment Type:
Angular, Axial, Parallel
Minimum Operating Temperature:
-40 Degrees F
Number of Beams:
6
Fastener Tightening Torque:
2.1 N-m
Length Through Bore 2:
0.6 in
Coupling Material Finish:
Bright
Package Quantity:
1
