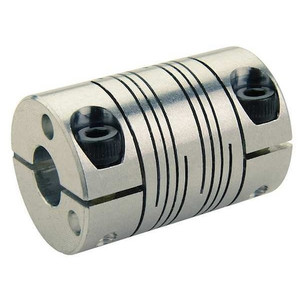

Coupling, 6 Beam Clamp, 8mmx6mm - FCMR19-8-6-A

Coupling, 6 Beam Clamp, 8mmx6mm - FCMR19-8-6-A

Ruland
SKU:
FCMR19-8-6-A
|
UPC:
634529007440
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 8 mm, Bore Diameter 2 6 mm, Coupling Material Aluminum, Coupling Outside Diameter 19.1 mm, Maximum Speed 6,000 RPM, Maximum Torque 2.26 N-m, Axial Motion 0.13 mm, Overall Length 31.8 mm, Parallel Misalignment 0.2 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 0.49 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 15.4 mm
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Motion Control Coupling
System of Measurement:
Metric
Bore Dia.:
8mm x 6mm
Material - Couplings:
Aluminum
Outside Dia.:
19.1 mm
Overall Length:
31.8 mm
Finish:
Bright
Clearance Dia. (In.):
0.879 in
Max. Axial Misalignment (In.):
+/-0.005
Min. Bore (mm):
6
Torsional Stiffness (Deg./In.-Lbs.):
0.23
Length through Bore (In.):
0.593
Style:
6-Beam Clamp
Max. Temp.:
225 Degrees F
Item - Motion Control Couplings:
Motion Control Coupling
Screw Size:
M3
Max. Bore (mm):
8 mm
Length through Bore (mm):
15.06
Rated Torque:
20 in-lb
Max. Temp. Range (F):
225 Degrees
Max. RPM:
6,000 RPM
Screw Type:
Cap Screw
Size:
FCMR19
Outside Dia. (In.):
0.75
Clearance Dia. (mm):
22.33
Torque (In.-Lbs.):
20
Outside Dia. (mm):
19.1
Overall Length (mm):
31.8
Max. Parallel Misalignment (In.):
0.008 in
Length through Bore:
15.06 mm
Material:
Aluminum
Overall Length (In.):
1.25
Screw Size (mm):
M3
Max. Angular Misalignment:
3 Degrees
Application:
Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Bore Tolerance:
+0.025/-0.000 mm
Screw Material:
Alloy Steel with Nypatch
Screw Material Finish:
Black Oxide
Bore Diameter 2:
6 mm
Maximum Torque:
2.26 N-m
Shaft Locking Type:
Clamp On
Length Through Bore 1:
15.4 mm
Bore Type:
Round
Shaft Tolerance:
+0.000/-0.013 mm
Torsional Stiffness:
0.49 N-m/Deg
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single or Four Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Spiral Coupling With Nypatch Anti-Vibration Hardware, Two Sets of Three Spira
Zero Backlash:
Yes
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Maximum Operating Temperature:
107 Degrees C
Fastener Tightening Torque:
2.1 N-m
Angular Misalignment:
3 Degrees
Parallel Misalignment:
0.2 mm
Number of Beams:
6
For Misalignment Type:
Angular, Axial, Parallel
Series:
FCMR
Number of Locking Screws:
2
Moment of Inertia:
0.000001037 kgf/m sq
Length Through Bore 2:
15.4 mm
Coupling Material Grade:
7075
Minimum Operating Temperature:
-40 Degrees C
Dynamic Torque Non-Reversing:
1.13 N-m
Maximum Speed:
6,000 RPM
Included Screws:
(2) Hex Socket Cap Screw
Different Bore Sizes:
Yes
Coupling Material Finish:
Bright
Full Bearing Support Required:
Yes
Coupling Material:
Aluminum
Axial Motion:
0.13 mm
Coupling Outside Diameter:
19.1 mm
Bore Diameter 1:
8 mm
Dynamic Torque Reversing:
0.57 N-m
Screw Thread Size:
M3
Package Quantity:
1
