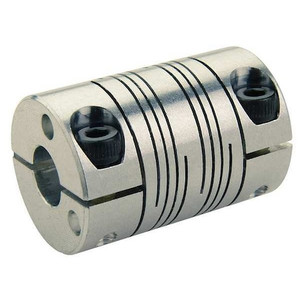

Coupling, 6 Beam Clamp, 20mmx3/4in. - FCR24-20MM-3/4"-A

Coupling, 6 Beam Clamp, 20mmx3/4in. - FCR24-20MM-3/4"-A

Ruland
SKU:
FCR24-20MM-3/4"-A
|
UPC:
634529135976
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 20 mm, Bore Diameter 2 3/4 in, Coupling Material Aluminum, Coupling Outside Diameter 1 1/2 in, Maximum Speed 6,000 RPM, Maximum Torque 104 in-lb, Axial Motion 0.015 in, Overall Length 2 1/4 in, Parallel Misalignment 0.03 in, System of Measurement Inch to Metric, Different Bore Sizes Yes, Torsional Stiffness 11.49 in-lb/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 1.1 in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Motion Control Coupling
System of Measurement:
Inch to Metric
Bore Dia.:
3/4 in x 20mm
Material - Couplings:
Aluminum
Outside Dia.:
1.5 in
Overall Length:
2 1/4 in
Finish:
Bright
Outside Dia. (In.):
1.5
Max. Angular Misalignment:
3 Degrees
Style:
6-Beam Clamp
Max. Temp. Range (F):
225 Degrees
Max. Axial Misalignment (In.):
+/-0.015
Screw Type:
Cap Screw
Clearance Dia. (In.):
1.642 in
Screw Size (mm):
M5
Min. Bore (In.):
0.75 in
Outside Dia. (mm):
38.1
Length through Bore:
26.47 mm
Overall Length (In.):
2.25
Max. RPM:
6,000 RPM
Clearance Dia. (mm):
41.71
Min. Bore (mm):
0.75
Length through Bore (In.):
1.042
Rated Torque:
104 in-lb
Max. Bore (mm):
20 mm
Screw Size:
M5
Torque (In.-Lbs.):
104
Overall Length (mm):
57.2
Max. Parallel Misalignment (In.):
0.03 in
Max. Temp.:
225 Degrees F
Torsional Stiffness (Deg./In.-Lbs.):
0.087
Item - Motion Control Couplings:
Motion Control Coupling
Length through Bore (mm):
26.47
Size:
FCR24
Material:
Aluminum
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Bore Tolerance:
+0.001/-0.000 in
Screw Material:
Alloy Steel with Nypatch
Coupling Material:
Aluminum
Number of Beams:
6
Parallel Misalignment:
0.03 in
Number of Locking Screws:
2
Dynamic Torque Reversing:
26 lb-in
Bore Diameter 1:
20 mm
Axial Motion:
0.015 in
Screw Thread Size:
M5
Full Bearing Support Required:
Yes
For Misalignment Type:
Angular, Axial, Parallel
Moment of Inertia:
0.1023 lb-in sq
Length Through Bore 1:
1.1 in
Torsional Stiffness:
11.49 in-lb/Deg
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single or Four Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Spiral Coupling With Nypatch Anti-Vibration Hardware, Two Sets of Three Spira
Minimum Operating Temperature:
-40 Degrees F
Coupling Material Finish:
Bright
Bore Diameter 2:
3/4 in
Screw Material Finish:
Black Oxide
Dynamic Torque Non-Reversing:
52 lb-in
Bore Type:
Round
Length Through Bore 2:
1.1 in
Zero Backlash:
Yes
Different Bore Sizes:
Yes
Shaft Locking Type:
Clamp On
Coupling Material Grade:
7075
Angular Misalignment:
3 Degrees
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Series:
FCR
Fastener Tightening Torque:
9.5 N-m
Included Screws:
(2) Hex Socket Cap Screw
Maximum Operating Temperature:
225 Degrees F
Maximum Torque:
104 in-lb
Maximum Speed:
6,000 RPM
Shaft Tolerance:
+0.0000/-0.0005 in
Coupling Outside Diameter:
1 1/2 in
Package Quantity:
1
