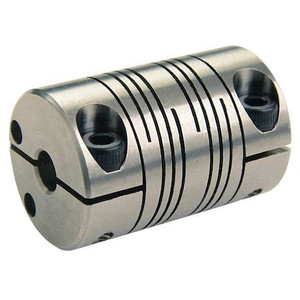

Coupling, 6 Beam Clamp, 16mmx16mm - FCMR38-16-16-SS

Coupling, 6 Beam Clamp, 16mmx16mm - FCMR38-16-16-SS

Ruland
SKU:
FCMR38-16-16-SS
|
UPC:
634529043981
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 16 mm, Bore Diameter 2 16 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 38.1 mm, Maximum Speed 6,000 RPM, Maximum Torque 19.82 N-m, Axial Motion 0.38 mm, Overall Length 57.2 mm, Parallel Misalignment 0.76 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 3.7 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 27.3 mm
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Metric
Bore Dia.:
16mm x 16mm
Material - Couplings:
Stainless Steel
Outside Dia.:
38.1 mm
Overall Length:
57.2 mm
Finish:
Bright
Torsional Stiffness (Deg./In.-Lbs.):
0.031
Screw Size (mm):
M6
Min. Bore (mm):
16
Max. Angular Misalignment:
3 Degrees
Overall Length (In.):
2.25
Clearance Dia. (In.):
1.642 in
Screw Type:
Cap Screw
Clearance Dia. (mm):
41.71
Length through Bore:
26.47 mm
Max. Parallel Misalignment (In.):
0.03 in
Rated Torque:
175 in-lb
Max. Bore (mm):
16 mm
Outside Dia. (mm):
38.1
Max. Temp. Range (F):
350 Degrees
Torque (In.-Lbs.):
175
Outside Dia. (In.):
1.5
Length through Bore (mm):
26.47
Length through Bore (In.):
1.042
Max. Axial Misalignment (In.):
+/-0.015
Style:
6-Beam Clamp
Screw Size:
M6
Item - Motion Control Couplings:
Motion Control Coupling
Max. RPM:
6,000 RPM
Material:
Stainless Steel
Size:
FCMR38
Overall Length (mm):
57.2
Max. Temp.:
350 Degrees F
Standards:
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Bore Tolerance:
+0.025/-0.000 mm
Screw Material:
Alloy Steel with Nypatch
Length Through Bore 1:
27.3 mm
Length Through Bore 2:
27.3 mm
Zero Backlash:
Yes
Fastener Tightening Torque:
16 N-m
Bore Diameter 1:
16 mm
Maximum Speed:
6,000 RPM
Shaft Tolerance:
+0.000/-0.013 mm
Coupling Material Finish:
Bright
Dynamic Torque Reversing:
4.96 N-m
Different Bore Sizes:
No
Included Screws:
(2) Hex Socket Cap Screw
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single or Four Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Spiral Coupling With Nypatch Anti-Vibration Hardware, Two Sets of Three Spira
Series:
FCMR
For Misalignment Type:
Angular, Axial, Parallel
Bore Diameter 2:
16 mm
Minimum Operating Temperature:
-40 Degrees C
Dynamic Torque Non-Reversing:
9.91 N-m
Coupling Material Grade:
303
Coupling Outside Diameter:
38.1 mm
Moment of Inertia:
0.000083407 kgf/m sq
Maximum Operating Temperature:
176 Degrees C
Torsional Stiffness:
3.7 N-m/Deg
Parallel Misalignment:
0.76 mm
Number of Locking Screws:
2
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Angular Misalignment:
3 Degrees
Screw Material Finish:
Black Oxide
Screw Thread Size:
M6
Full Bearing Support Required:
Yes
Axial Motion:
0.38 mm
Number of Beams:
6
Coupling Material:
Stainless Steel
Shaft Locking Type:
Clamp On
Bore Type:
Round
Maximum Torque:
19.82 N-m
Package Quantity:
1
