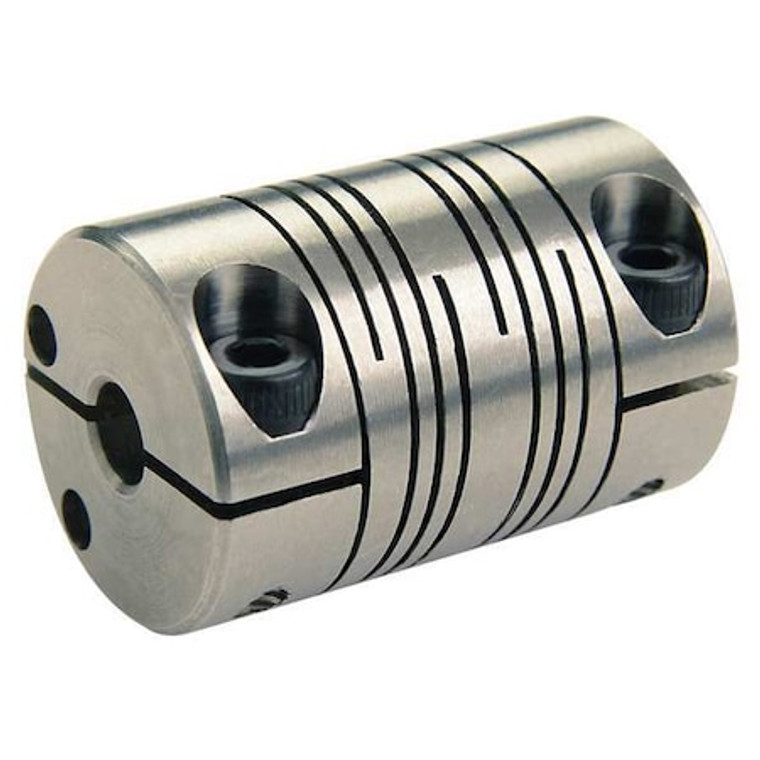

Coupling, 6 Beam Clamp, 14mmx8mm - FCMR32-14-8-SS

Coupling, 6 Beam Clamp, 14mmx8mm - FCMR32-14-8-SS

Ruland
SKU:
FCMR32-14-8-SS
|
UPC:
634529043677
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 14 mm, Bore Diameter 2 8 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 31.8 mm, Maximum Speed 6,000 RPM, Maximum Torque 11.32 N-m, Axial Motion 0.25 mm, Overall Length 44.5 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 3.03 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 21.4 mm
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Motion Control Coupling
System of Measurement:
Metric
Bore Dia.:
14mm x 8mm
Material - Couplings:
Stainless Steel
Outside Dia.:
31.8 mm
Overall Length:
44.5 mm
Finish:
Bright
Item - Motion Control Couplings:
Motion Control Coupling
Max. Axial Misalignment (In.):
+/-0.01
Outside Dia. (mm):
31.8
Torsional Stiffness (Deg./In.-Lbs.):
0.037
Length through Bore:
20.82 mm
Material:
Stainless Steel
Length through Bore (In.):
0.82
Length through Bore (mm):
20.82
Max. Temp.:
350 Degrees F
Max. RPM:
6,000 RPM
Max. Parallel Misalignment (In.):
0.015 in
Rated Torque:
100 in-lb
Screw Type:
Cap Screw
Screw Size:
M5
Clearance Dia. (In.):
1.459 in
Outside Dia. (In.):
1.25
Torque (In.-Lbs.):
100
Overall Length (mm):
44.5
Screw Size (mm):
M5
Size:
FCMR32
Style:
6-Beam Clamp
Clearance Dia. (mm):
37.06
Max. Temp. Range (F):
350 Degrees
Min. Bore (mm):
8
Max. Bore (mm):
14 mm
Max. Angular Misalignment:
3 Degrees
Overall Length (In.):
1.75
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Screw Material:
Alloy Steel with Nypatch
Bore Tolerance:
+0.025/-0.000 mm
Zero Backlash:
Yes
Moment of Inertia:
0.000032426 kgf/m sq
Coupling Material Finish:
Bright
Number of Beams:
6
Dynamic Torque Non-Reversing:
5.66 N-m
Minimum Bore Diameter:
8 mm
Bore Type:
Round
Torsional Stiffness:
3.03 N-m/Deg
For Misalignment Type:
Angular, Axial, Parallel
Shaft Locking Type:
Clamp On
Axial Motion:
0.25 mm
Coupling Material Grade:
303
Series:
FCMR
Screw Material Finish:
Black Oxide
Number of Locking Screws:
2
Shaft Tolerance:
+0.000/-0.013 mm
Dynamic Torque Reversing:
2.83 N-m
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Bore Diameter 2:
8 mm
Coupling Outside Diameter:
31.8 mm
Coupling Material:
Stainless Steel
Full Bearing Support Required:
Yes
Bore Diameter 1:
14 mm
Angular Misalignment:
3 Degrees
Included Screws:
(2) Hex Socket Cap Screw
Parallel Misalignment:
0.38 mm
Different Bore Sizes:
Yes
Screw Thread Size:
M5
Fastener Tightening Torque:
9.5 N-m
Maximum Speed:
6,000 RPM
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single or Four Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Spiral Coupling With Nypatch Anti-Vibration Hardware, Two Sets of Three Spira
Length Through Bore 2:
21.4 mm
Length Through Bore 1:
21.4 mm
Maximum Torque:
11.32 N-m
Minimum Operating Temperature:
-40 Degrees C
Maximum Operating Temperature:
176 Degrees C
Package Quantity:
1
