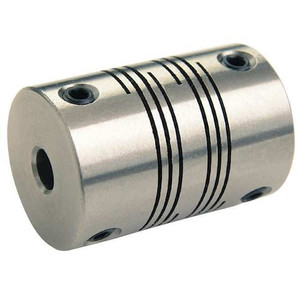

Coupling, 4 Beam Set Screw, 8mmx8mm - PSMR32-8-8-A

Coupling, 4 Beam Set Screw, 8mmx8mm - PSMR32-8-8-A

Ruland
SKU:
PSMR32-8-8-A
|
UPC:
634529033760
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 8 mm, Bore Diameter 2 8 mm, Coupling Material Aluminum, Coupling Outside Diameter 31.8 mm, Maximum Speed 6,000 RPM, Maximum Torque 7.23 N-m, Axial Motion 0.25 mm, Overall Length 38.1 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 1.89 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 17.6 mm
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Set Screw
Item:
Motion Control Coupling
System of Measurement:
Metric
Bore Dia.:
8mm x 8mm
Material - Couplings:
Aluminum
Outside Dia.:
31.8 mm
Overall Length:
38.1 mm
Finish:
Bright
Max. Axial Misalignment (In.):
+/-0.01
Item - Motion Control Couplings:
Motion Control Coupling
Max. Temp.:
225 Degrees F
Max. Angular Misalignment:
3 Degrees
Torque (In.-Lbs.):
64
Torsional Stiffness (Deg./In.-Lbs.):
0.06
Setscrew Location:
2 (120 Degrees )
Max. RPM:
6,000 RPM
Overall Length (In.):
1.5
Outside Dia. (mm):
31.8 mm
Length through Bore (In.):
0.67
Min. Bore (mm):
8
Size:
PSMR32
Length through Bore (mm):
17.02
Clearance Dia. (In.):
1.25 in
Material:
Aluminum
Max. Parallel Misalignment (In.):
0.015 in
Max. Temp. Range (F):
225 Degrees
Screw Size:
M6
Rated Torque:
64 in-lb
Length through Bore:
17.02 mm
Screw Type:
Set Screw
Max. Bore (mm):
8 mm
Clearance Dia. (mm):
31.8
Style:
4-Beam Set Screw
Screw Size (mm):
M6
Overall Length (mm):
38.1
Outside Dia. (In.):
1.25
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Screw Material:
Alloy Steel
Bore Tolerance:
+0.025/-0.000 mm
Fastener Tightening Torque:
7.2 N-m
Bore Diameter 2:
8 mm
Dynamic Torque Non-Reversing:
3.62 N-m
Bore Type:
Round
Coupling Material Grade:
7075
Shaft Tolerance:
+0.000/-0.013 mm
Coupling Material Finish:
Bright
Coupling Material:
Aluminum
Screw Thread Size:
M6
Angular Misalignment:
3 Degrees
Minimum Operating Temperature:
-40 Degrees C
Length Through Bore 2:
17.6 mm
Different Bore Sizes:
No
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Bore Diameter 1:
8 mm
Parallel Misalignment:
0.38 mm
Full Bearing Support Required:
Yes
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Torsional Stiffness:
1.89 N-m/Deg
Length Through Bore 1:
17.6 mm
Number of Beams:
4
Shaft Locking Type:
Set Screw
Maximum Operating Temperature:
107 Degrees C
For Misalignment Type:
Angular, Axial, Parallel
Number of Locking Screws:
4
Coupling Outside Diameter:
31.8 mm
Series:
PSMR
Axial Motion:
0.25 mm
Included Screws:
(4) Set Screw
Maximum Torque:
7.23 N-m
Maximum Speed:
6,000 RPM
Dynamic Torque Reversing:
1.81 N-m
Moment of Inertia:
0.000009948 kgf/m sq
Zero Backlash:
Yes
Screw Material Finish:
Black Oxide
Package Quantity:
1
