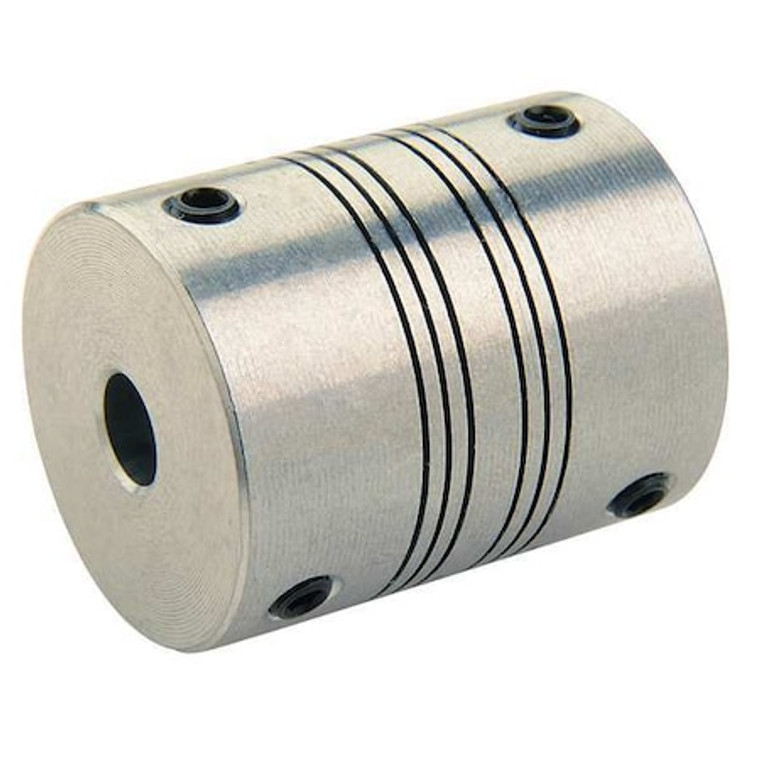

Coupling, 4 Beam Set Screw, 5mmx5mm - PSMR19-5-5-SS

Coupling, 4 Beam Set Screw, 5mmx5mm - PSMR19-5-5-SS

Ruland
SKU:
PSMR19-5-5-SS
|
UPC:
634529050217
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 5 mm, Bore Diameter 2 5 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 19.1 mm, Maximum Speed 6,000 RPM, Maximum Torque 2.6 N-m, Axial Motion 0.13 mm, Overall Length 22.9 mm, Parallel Misalignment 0.2 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 0.75 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 10.7 mm
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Set Screw
System of Measurement:
Metric
Bore Dia.:
5mm x 5mm
Material - Couplings:
Stainless Steel
Outside Dia.:
19.1 mm
Overall Length:
22.9 mm
Finish:
Bright
Outside Dia. (In.):
0.75
Max. Angular Misalignment:
3 Degrees
Style:
4-Beam Set Screw
Clearance Dia. (In.):
1.0 in
Outside Dia. (mm):
19.1 mm
Overall Length (mm):
22.9
Screw Size:
M4
Max. Axial Misalignment (In.):
+/-0.005
Torsional Stiffness (Deg./In.-Lbs.):
0.151
Length through Bore (mm):
9.8
Max. RPM:
6,000 RPM
Max. Bore (mm):
5 mm
Screw Size (mm):
M4
Length through Bore (In.):
0.386
Clearance Dia. (mm):
25.4
Max. Parallel Misalignment (In.):
0.008 in
Max. Temp.:
350 Degrees F
Setscrew Location:
2 (120 Degrees )
Rated Torque:
23 in-lb
Overall Length (In.):
0.9
Size:
PSMR19
Torque (In.-Lbs.):
23
Length through Bore:
9.8 mm
Material:
Stainless Steel
Screw Type:
Set Screw
Item - Motion Control Couplings:
Motion Control Coupling
Min. Bore (mm):
5
Max. Temp. Range (F):
350 Degrees
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Screw Material:
Alloy Steel
Bore Tolerance:
+0.025/-0.000 mm
Screw Material Finish:
Black Oxide
Maximum Speed:
6,000 RPM
Number of Locking Screws:
2
Coupling Outside Diameter:
19.1 mm
Coupling Material Finish:
Bright
Length Through Bore 2:
10.7 mm
Bore Diameter 2:
5 mm
Number of Beams:
4
Maximum Operating Temperature:
176 Degrees C
Screw Thread Size:
M4
Bore Diameter 1:
5 mm
Moment of Inertia:
0.000002048 kgf/m sq
Coupling Material Grade:
303
Bore Type:
Round
Dynamic Torque Non-Reversing:
1.3 N-m
Axial Motion:
0.13 mm
Dynamic Torque Reversing:
0.65 N-m
For Misalignment Type:
Angular, Axial, Parallel
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Zero Backlash:
Yes
Shaft Locking Type:
Set Screw
Maximum Torque:
2.6 N-m
Length Through Bore 1:
10.7 mm
Parallel Misalignment:
0.2 mm
Coupling Material:
Stainless Steel
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Different Bore Sizes:
No
Fastener Tightening Torque:
1.76 N-m
Series:
PSMR
Full Bearing Support Required:
Yes
Angular Misalignment:
3 Degrees
Torsional Stiffness:
0.75 N-m/Deg
Minimum Operating Temperature:
-40 Degrees C
Included Screws:
(2) Set Screw
Shaft Tolerance:
+0.000/-0.013 mm
Package Quantity:
1
