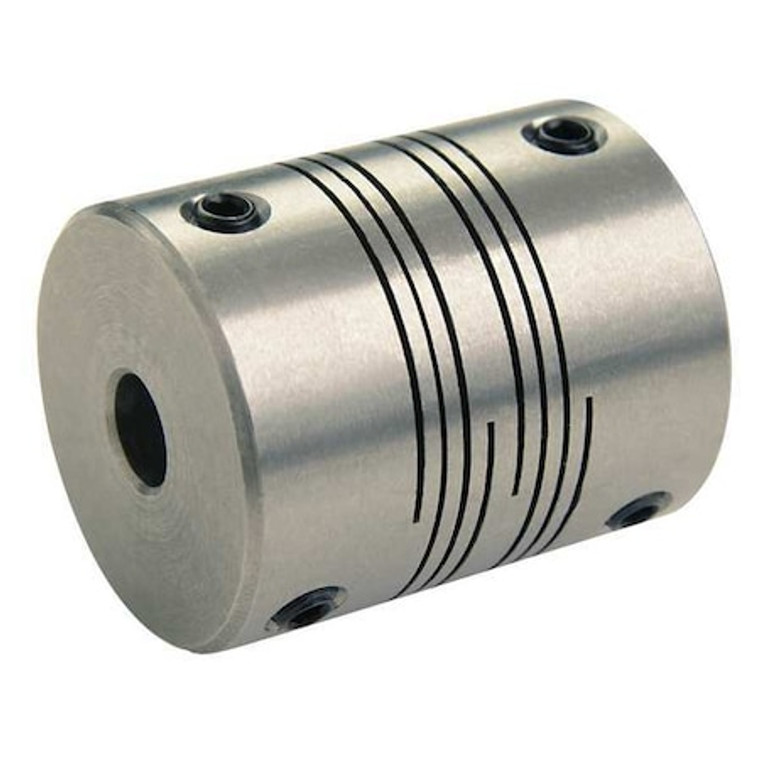

Coupling, 4 Beam Set Screw, 5/16inx 5/16in - PSR16-5-5-SS

Coupling, 4 Beam Set Screw, 5/16inx 5/16in - PSR16-5-5-SS

Ruland
SKU:
PSR16-5-5-SS
|
UPC:
634529051245
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 5/16 in, Bore Diameter 2 5/16 in, Coupling Material Stainless Steel, Coupling Outside Diameter 1 in, Maximum Speed 6,000 RPM, Maximum Torque 44 in-lb, Axial Motion 0.01 in, Overall Length 1 1/4 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Different Bore Sizes No, Torsional Stiffness 10.64 in-lb/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 0.6 in
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Set Screw
System of Measurement:
Inch
Bore Dia.:
5/16 in x 5/16 in
Material - Couplings:
Stainless Steel
Outside Dia.:
1 in
Overall Length:
1 1/4 in
Finish:
Bright
Torque (In.-Lbs.):
44
Max. Parallel Misalignment (In.):
0.015 in
Outside Dia. (mm):
25.4
Max. Temp. Range (F):
350 Degrees
Screw Size (mm):
M4
Max. Angular Misalignment:
3 Degrees
Min. Bore (In.):
0.313 in
Max. Bore (In.):
0.313 in
Max. Temp.:
350 Degrees F
Size:
PSR16
Length through Bore (In.):
0.545
Overall Length (mm):
31.8
Clearance Dia. (In.):
0.75 in
Outside Dia. (In.):
1.000 in
Screw Size:
M4
Overall Length (In.):
1.25
Max. Axial Misalignment (In.):
+/-0.01
Length through Bore (mm):
13.84
Style:
4-Beam Set Screw
Torsional Stiffness (Deg./In.-Lbs.):
0.094
Rated Torque:
44 in-lb
Setscrew Location:
2 (120 Degrees )
Item - Motion Control Couplings:
Motion Control Coupling
Screw Type:
Set Screw
Length through Bore:
0.545 in
Max. RPM:
6,000 RPM
Clearance Dia. (mm):
19.1
Material:
Stainless Steel
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Screw Material:
Alloy Steel
Bore Tolerance:
+0.001/-0.000 in
Coupling Material:
Stainless Steel
Full Bearing Support Required:
Yes
Parallel Misalignment:
0.015 in
Coupling Outside Diameter:
1 in
Dynamic Torque Reversing:
11 lb-in
Axial Motion:
0.01 in
Maximum Speed:
6,000 RPM
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Maximum Operating Temperature:
350 Degrees F
Minimum Operating Temperature:
-40 Degrees F
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Bore Type:
Round
Included Screws:
(4) Set Screw
Shaft Locking Type:
Set Screw
Shaft Tolerance:
+0.0000/-0.0005 in
Number of Locking Screws:
4
Dynamic Torque Non-Reversing:
22 lb-in
Series:
PSR
Torsional Stiffness:
10.64 in-lb/Deg
Moment of Inertia:
0.0317 lb-in sq
Different Bore Sizes:
No
Maximum Torque:
44 in-lb
Screw Thread Size:
M4
Length Through Bore 2:
0.6 in
Zero Backlash:
Yes
Bore Diameter 1:
5/16 in
Coupling Material Finish:
Bright
Length Through Bore 1:
0.6 in
Coupling Material Grade:
303
Angular Misalignment:
3 Degrees
Number of Beams:
4
For Misalignment Type:
Angular, Axial, Parallel
Screw Material Finish:
Black Oxide
Bore Diameter 2:
5/16 in
Fastener Tightening Torque:
1.76 N-m
Package Quantity:
1
