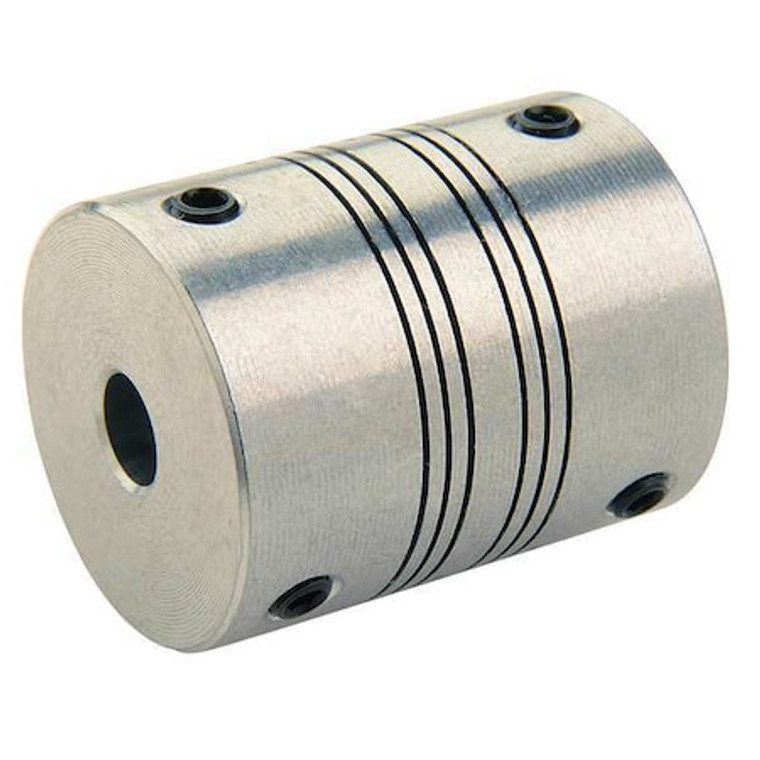

Coupling, 4 Beam Set Screw, 3/16inx 3/16in - PSR12-3-3-SS

Coupling, 4 Beam Set Screw, 3/16inx 3/16in - PSR12-3-3-SS

Ruland
SKU:
PSR12-3-3-SS
|
UPC:
634529041932
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 3/16 in, Bore Diameter 2 3/16 in, Coupling Material Stainless Steel, Coupling Outside Diameter 3/4 in, Maximum Speed 6,000 RPM, Maximum Torque 23 in-lb, Axial Motion 0.005 in, Overall Length 29/32 in, Parallel Misalignment 0.008 in, System of Measurement Inch, Different Bore Sizes No, Torsional Stiffness 6.62 in-lb/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 0.4 in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Set Screw
Item:
Motion Control Coupling
System of Measurement:
Inch
Bore Dia.:
3/16 in x 3/16 in
Material - Couplings:
Stainless Steel
Outside Dia.:
0.75 in
Overall Length:
29/32 in
Finish:
Bright
Style:
4-Beam Set Screw
Overall Length (mm):
22.9
Item - Motion Control Couplings:
Motion Control Coupling
Max. RPM:
6,000 RPM
Max. Axial Misalignment (In.):
+/-0.005
Length through Bore (mm):
9.8
Screw Size:
M4
Screw Size (mm):
M4
Outside Dia. (mm):
19.1
Torsional Stiffness (Deg./In.-Lbs.):
0.151
Min. Bore (In.):
0.188 in
Outside Dia. (In.):
0.750 in
Setscrew Location:
2 (120 Degrees )
Clearance Dia. (In.):
1.25 in
Screw Type:
Set Screw
Length through Bore:
0.386 in
Max. Parallel Misalignment (In.):
0.008 in
Overall Length (In.):
0.9
Torque (In.-Lbs.):
23
Length through Bore (In.):
0.386
Max. Bore (In.):
0.188 in
Max. Temp.:
350 Degrees F
Size:
PSR12
Max. Angular Misalignment:
3 Degrees
Max. Temp. Range (F):
350 Degrees
Clearance Dia. (mm):
31.8
Material:
Stainless Steel
Rated Torque:
23 in-lb
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Screw Material:
Alloy Steel
Bore Tolerance:
+0.001/-0.000 in
Maximum Operating Temperature:
350 Degrees F
Screw Material Finish:
Black Oxide
Number of Beams:
4
Maximum Speed:
6,000 RPM
Length Through Bore 2:
0.4 in
Different Bore Sizes:
No
Minimum Operating Temperature:
-40 Degrees F
Angular Misalignment:
3 Degrees
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Dynamic Torque Reversing:
5.75 lb-in
Shaft Tolerance:
+0.0000/-0.0005 in
Axial Motion:
0.005 in
Coupling Material:
Stainless Steel
Number of Locking Screws:
2
Shaft Locking Type:
Set Screw
Torsional Stiffness:
6.62 in-lb/Deg
Bore Type:
Round
Zero Backlash:
Yes
Included Screws:
(2) Set Screw
Moment of Inertia:
0.007 lb-in sq
Dynamic Torque Non-Reversing:
11.5 lb-in
Bore Diameter 2:
3/16 in
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Coupling Outside Diameter:
3/4 in
Parallel Misalignment:
0.008 in
Full Bearing Support Required:
Yes
Coupling Material Finish:
Bright
Coupling Material Grade:
303
Fastener Tightening Torque:
1.76 N-m
Series:
PSR
Length Through Bore 1:
0.4 in
Screw Thread Size:
M4
For Misalignment Type:
Angular, Axial, Parallel
Bore Diameter 1:
3/16 in
Maximum Torque:
23 in-lb
Package Quantity:
1
