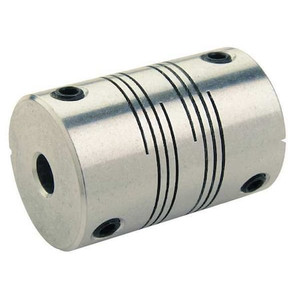

Coupling, 4 Beam Set Screw, 11mmx11mm - PSMR32-11-11-A

Coupling, 4 Beam Set Screw, 11mmx11mm - PSMR32-11-11-A

Ruland
SKU:
PSMR32-11-11-A
|
UPC:
634529033593
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 11 mm, Bore Diameter 2 11 mm, Coupling Material Aluminum, Coupling Outside Diameter 31.8 mm, Maximum Speed 6,000 RPM, Maximum Torque 5.88 N-m, Axial Motion 0.25 mm, Overall Length 38.1 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 0.91 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 17.6 mm
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Set Screw
System of Measurement:
Metric
Bore Dia.:
11mm x 11mm
Material - Couplings:
Aluminum
Outside Dia.:
31.8 mm
Overall Length:
38.1 mm
Finish:
Bright
Outside Dia. (In.):
1.25
Style:
4-Beam Set Screw
Torsional Stiffness (Deg./In.-Lbs.):
0.124
Min. Bore (mm):
11
Screw Size:
M6
Max. Parallel Misalignment (In.):
0.015 in
Outside Dia. (mm):
31.8 mm
Screw Type:
Set Screw
Max. Angular Misalignment:
3 Degrees
Overall Length (In.):
1.5
Clearance Dia. (mm):
28.6
Length through Bore:
17.02 mm
Length through Bore (mm):
17.02
Max. Bore (mm):
11 mm
Size:
PSMR32
Setscrew Location:
2 (120 Degrees )
Material:
Aluminum
Torque (In.-Lbs.):
52
Screw Size (mm):
M6
Max. RPM:
6,000 RPM
Max. Temp.:
225 Degrees F
Clearance Dia. (In.):
1.125 in
Item - Motion Control Couplings:
Motion Control Coupling
Max. Temp. Range (F):
225 Degrees
Rated Torque:
52 in-lb
Max. Axial Misalignment (In.):
+/-0.01
Overall Length (mm):
38.1
Length through Bore (In.):
0.67
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Bore Tolerance:
+0.025/-0.000 mm
Screw Material:
Alloy Steel
Number of Beams:
4
Shaft Locking Type:
Set Screw
Parallel Misalignment:
0.38 mm
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Maximum Speed:
6,000 RPM
Dynamic Torque Non-Reversing:
2.94 N-m
Shaft Tolerance:
+0.000/-0.013 mm
Dynamic Torque Reversing:
1.47 N-m
Length Through Bore 1:
17.6 mm
Maximum Torque:
5.88 N-m
Coupling Material Finish:
Bright
Different Bore Sizes:
No
Series:
PSMR
Screw Material Finish:
Black Oxide
Moment of Inertia:
0.000009948 kgf/m sq
Coupling Material Grade:
7075
Torsional Stiffness:
0.91 N-m/Deg
Angular Misalignment:
3 Degrees
Screw Thread Size:
M6
Axial Motion:
0.25 mm
For Misalignment Type:
Angular, Axial, Parallel
Maximum Operating Temperature:
107 Degrees C
Coupling Material:
Aluminum
Length Through Bore 2:
17.6 mm
Fastener Tightening Torque:
7.2 N-m
Bore Type:
Round
Full Bearing Support Required:
Yes
Coupling Outside Diameter:
31.8 mm
Minimum Operating Temperature:
-40 Degrees C
Bore Diameter 2:
11 mm
Bore Diameter 1:
11 mm
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Included Screws:
(4) Set Screw
Zero Backlash:
Yes
Number of Locking Screws:
4
Package Quantity:
1
