Coupling, 4 Beam Set Screw, 10mmx10mm - MWS30-10-10-A
Manufacturer: Ruland
MFR # MWS30-10-10-A
Log in for pricing
Coupling, 4 Beam Set Screw, 10mmx10mm - MWS30-10-10-SS
RulandLog in for pricing
(No reviews yet)
Write a Review
Ruland

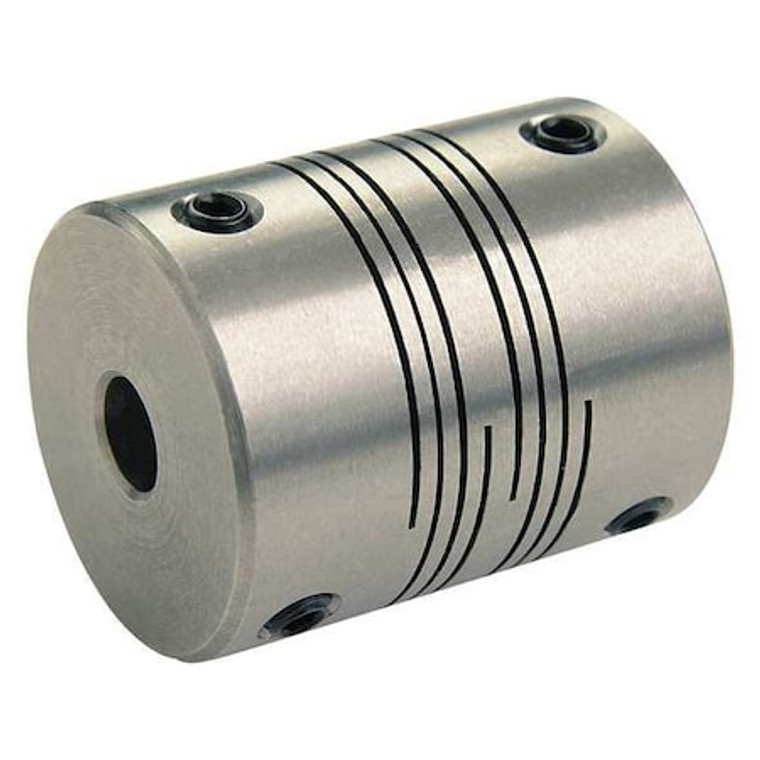

Coupling, 4 Beam Set Screw, 10mmx10mm - MWS30-10-10-SS
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 10 mm, Bore Diameter 2 10 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 30 mm, Maximum Speed 6,000 RPM, Maximum Torque 10.4 N-m, Axial Motion 0.25 mm, Overall Length 30 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 3.03 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 14.2 mm
- Country of Origin:
- United States
- Shaft Locking Type - Couplings:
- 1 Piece Set Screw
- Item:
- Motion Control Coupling
- System of Measurement:
- Metric
- Bore Dia.:
- 10mm x 10mm
- Material - Couplings:
- Stainless Steel
- Outside Dia.:
- 30 mm
- Overall Length:
- 30 mm
- Finish:
- Bright
- Setscrew Location:
- 2 (120 Degrees )
- Rated Torque:
- 92 in-lb
- Screw Size (mm):
- M5
- Min. Bore (mm):
- 10
- Screw Type:
- Set Screw
- Outside Dia. (mm):
- 30
- Material:
- Stainless Steel
- Max. Temp.:
- 350 Degrees F
- Torsional Stiffness (Deg./In.-Lbs.):
- 0.037
- Length through Bore (mm):
- 13.65
- Screw Size:
- M5
- Max. Bore (mm):
- 10 mm
- Torque (In.-Lbs.):
- 92
- Overall Length (mm):
- 30
- Outside Dia. (In.):
- 1.181
- Length through Bore:
- 13.65 mm
- Length through Bore (In.):
- 0.537
- Style:
- 4-Beam Set Screw
- Max. Temp. Range (F):
- 350 Degrees
- Overall Length (In.):
- 1.181
- Clearance Dia. (mm):
- 25
- Max. Axial Misalignment (In.):
- +/-0.01
- Max. RPM:
- 6,000 RPM
- Clearance Dia. (In.):
- 0.984 in
- Item - Motion Control Couplings:
- Motion Control Coupling
- Max. Angular Misalignment:
- 3 Degrees
- Size:
- MWS30
- Max. Parallel Misalignment (In.):
- 0.015 in
- Standards:
- Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
- Application:
- Light-Duty Power Transmission, Servo Motors to Lead Screws
- Screw Material:
- Alloy Steel
- Bore Tolerance:
- +0.025/-0.000 mm
- For Environment:
- Angular Misalignment, Axial Motion, Parallel Misalignment
- Coupling Material Finish:
- Bright
- Features:
- Balanced Design for Reduced Vibration
- Zero Backlash:
- Yes
- Screw Material Finish:
- Black Oxide
- Dynamic Torque Reversing:
- 2.6 N-m
- Included Screws:
- (4) Set Screw
- Length Through Bore 2:
- 14.2 mm
- Shaft Locking Type:
- Set Screw
- Minimum Operating Temperature:
- -40 Degrees C
- Different Bore Sizes:
- No
- Fastener Tightening Torque:
- 4 N-m
- For Misalignment Type:
- Angular, Axial, Parallel
- Series:
- MWS
- Maximum Operating Temperature:
- 176 Degrees C
- Shaft Tolerance:
- +0.000/-0.013 mm
- Dynamic Torque Non-Reversing:
- 5.2 N-m
- Angular Misalignment:
- 3 Degrees
- Coupling Material Grade:
- 303
- Axial Motion:
- 0.25 mm
- Maximum Speed:
- 6,000 RPM
- Screw Thread Size:
- M5
- Moment of Inertia:
- 0.00002092 kgf/m sq
- Coupling Material:
- Stainless Steel
- Torsional Stiffness:
- 3.03 N-m/Deg
- Parallel Misalignment:
- 0.38 mm
- Coupling Outside Diameter:
- 30 mm
- Length Through Bore 1:
- 14.2 mm
- Bore Diameter 2:
- 10 mm
- Bore Type:
- Round
- Bore Diameter 1:
- 10 mm
- Number of Locking Screws:
- 4
- Full Bearing Support Required:
- Yes
- Number of Beams:
- 4
- Maximum Torque:
- 10.4 N-m
- Package Quantity:
- 1
-
-
