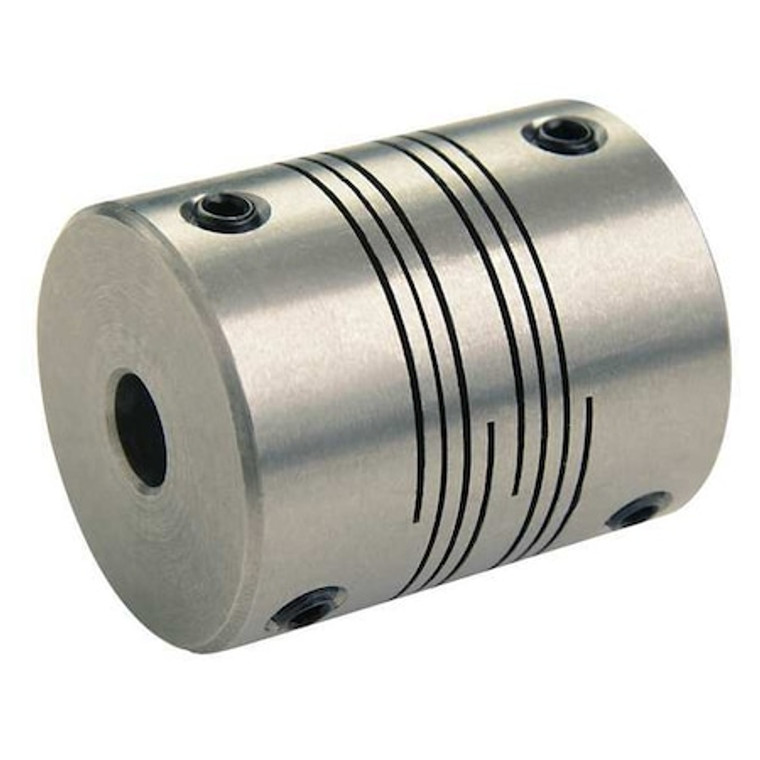

Coupling, 4 Beam Set Screw, 1/4in.x 1/4in. - PSR14-4-4-SS

Coupling, 4 Beam Set Screw, 1/4in.x 1/4in. - PSR14-4-4-SS

Ruland
SKU:
PSR14-4-4-SS
|
UPC:
634529051184
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 1/4 in, Bore Diameter 2 1/4 in, Coupling Material Stainless Steel, Coupling Outside Diameter 7/8 in, Maximum Speed 6,000 RPM, Maximum Torque 24 in-lb, Axial Motion 0.005 in, Overall Length 1 1/16 in, Parallel Misalignment 0.008 in, System of Measurement Inch, Different Bore Sizes No, Torsional Stiffness 9.35 in-lb/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 0.5 in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Set Screw
Item:
Motion Control Coupling
System of Measurement:
Inch
Bore Dia.:
1/4 in x 1/4 in
Material - Couplings:
Stainless Steel
Outside Dia.:
0.875 in
Overall Length:
1 1/16 in
Finish:
Bright
Setscrew Location:
2 (120 Degrees )
Screw Size (mm):
M4
Max. Axial Misalignment (In.):
+/-0.005
Clearance Dia. (mm):
15.9
Length through Bore (In.):
0.45
Outside Dia. (mm):
22.2
Outside Dia. (In.):
0.875 in
Style:
4-Beam Set Screw
Rated Torque:
24 in-lb
Screw Size:
M4
Overall Length (In.):
1.063
Screw Type:
Set Screw
Torque (In.-Lbs.):
24
Max. Angular Misalignment:
3 Degrees
Max. RPM:
6,000 RPM
Length through Bore:
0.45 in
Max. Temp.:
350 Degrees F
Clearance Dia. (In.):
0.625 in
Item - Motion Control Couplings:
Motion Control Coupling
Max. Temp. Range (F):
350 Degrees
Length through Bore (mm):
11.43
Torsional Stiffness (Deg./In.-Lbs.):
0.107
Size:
PSR14
Max. Parallel Misalignment (In.):
0.008 in
Overall Length (mm):
27
Material:
Stainless Steel
Min. Bore (In.):
0.25 in
Max. Bore (In.):
0.25 in
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Bore Tolerance:
+0.001/-0.000 in
Screw Material:
Alloy Steel
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Shaft Tolerance:
+0.0000/-0.0005 in
Dynamic Torque Reversing:
6 lb-in
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Coupling Material Finish:
Bright
Screw Material Finish:
Black Oxide
Included Screws:
(4) Set Screw
Screw Thread Size:
M4
Length Through Bore 1:
0.5 in
Coupling Outside Diameter:
7/8 in
Maximum Speed:
6,000 RPM
Moment of Inertia:
0.0157 lb-in sq
Series:
PSR
Bore Diameter 1:
1/4 in
Angular Misalignment:
3 Degrees
For Misalignment Type:
Angular, Axial, Parallel
Shaft Locking Type:
Set Screw
Number of Beams:
4
Torsional Stiffness:
9.35 in-lb/Deg
Different Bore Sizes:
No
Minimum Operating Temperature:
-40 Degrees F
Zero Backlash:
Yes
Maximum Operating Temperature:
350 Degrees F
Maximum Torque:
24 in-lb
Axial Motion:
0.005 in
Number of Locking Screws:
4
Coupling Material:
Stainless Steel
Parallel Misalignment:
0.008 in
Full Bearing Support Required:
Yes
Dynamic Torque Non-Reversing:
12 lb-in
Bore Diameter 2:
1/4 in
Fastener Tightening Torque:
1.76 N-m
Coupling Material Grade:
303
Length Through Bore 2:
0.5 in
Bore Type:
Round
Package Quantity:
1
