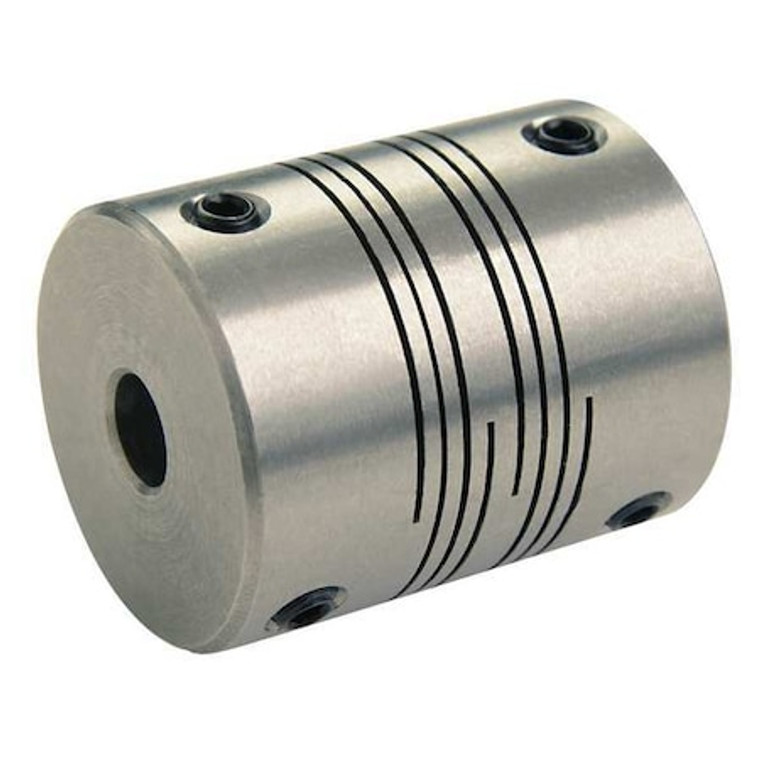

Coupling, 4 Beam Set Screw, 1/2inx 5/16in - PSR18-8-5-SS

Coupling, 4 Beam Set Screw, 1/2inx 5/16in - PSR18-8-5-SS

Ruland
SKU:
PSR18-8-5-SS
|
UPC:
634529051351
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 1/2 in, Bore Diameter 2 5/16 in, Coupling Material Stainless Steel, Coupling Outside Diameter 1 1/8 in, Maximum Speed 6,000 RPM, Maximum Torque 46 in-lb, Axial Motion 0.01 in, Overall Length 1 1/2 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Different Bore Sizes Yes, Torsional Stiffness 9.01 in-lb/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 0.7 in
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Set Screw
System of Measurement:
Inch
Bore Dia.:
1/2 in x 5/16 in
Material - Couplings:
Stainless Steel
Outside Dia.:
1.125 in
Overall Length:
1 1/2 in
Finish:
Bright
Torque (In.-Lbs.):
46
Screw Size:
M5
Clearance Dia. (mm):
25.4
Max. RPM:
6,000 RPM
Min. Bore (In.):
0.313 in
Screw Size (mm):
M5
Max. Angular Misalignment:
3 Degrees
Length through Bore (In.):
0.67
Material:
Stainless Steel
Screw Type:
Set Screw
Torsional Stiffness (Deg./In.-Lbs.):
0.111
Setscrew Location:
2 (120 Degrees )
Overall Length (mm):
38.1
Length through Bore (mm):
17.02
Overall Length (In.):
1.5
Max. Temp. Range (F):
350 Degrees
Length through Bore:
0.67 in
Max. Bore (In.):
0.5 in
Max. Parallel Misalignment (In.):
0.015 in
Size:
PSR18
Max. Axial Misalignment (In.):
+/-0.01
Max. Temp.:
350 Degrees F
Item - Motion Control Couplings:
Motion Control Coupling
Rated Torque:
46 in-lb
Style:
4-Beam Set Screw
Outside Dia. (In.):
1.125 in
Clearance Dia. (In.):
1.0 in
Outside Dia. (mm):
28.6
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Screw Material:
Alloy Steel
Bore Tolerance:
+0.001/-0.000 in
Series:
PSR
Parallel Misalignment:
0.015 in
Angular Misalignment:
3 Degrees
Maximum Speed:
6,000 RPM
Fastener Tightening Torque:
4 N-m
Bore Diameter 1:
1/2 in
Torsional Stiffness:
9.01 in-lb/Deg
Dynamic Torque Reversing:
11.5 lb-in
Maximum Operating Temperature:
350 Degrees F
Minimum Operating Temperature:
-40 Degrees F
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Zero Backlash:
Yes
Coupling Material Finish:
Bright
Different Bore Sizes:
Yes
Bore Diameter 2:
5/16 in
Shaft Tolerance:
+0.0000/-0.0005 in
Number of Beams:
4
Coupling Material Grade:
303
Maximum Torque:
46 in-lb
Coupling Material:
Stainless Steel
Included Screws:
(4) Set Screw
Screw Thread Size:
M5
Bore Type:
Round
Length Through Bore 2:
0.7 in
Coupling Outside Diameter:
1 1/8 in
Shaft Locking Type:
Set Screw
For Misalignment Type:
Angular, Axial, Parallel
Screw Material Finish:
Black Oxide
Number of Locking Screws:
4
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Length Through Bore 1:
0.7 in
Dynamic Torque Non-Reversing:
23 lb-in
Full Bearing Support Required:
Yes
Moment of Inertia:
0.0603 lb-in sq
Axial Motion:
0.01 in
Package Quantity:
1
