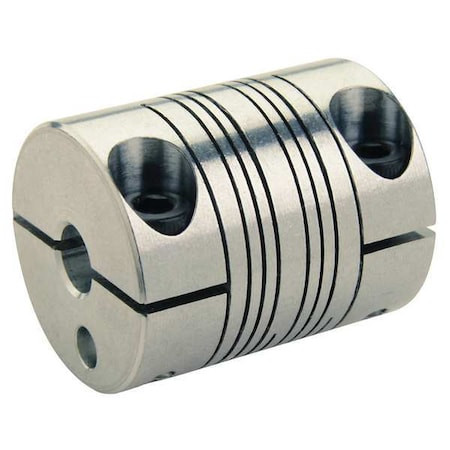

Coupling, 4 Beam Clamp, Bore 10 x 8 mm - PCMR25-10-8-A

Coupling, 4 Beam Clamp, Bore 10 x 8 mm - PCMR25-10-8-A

Ruland
SKU:
PCMR25-10-8-A
|
UPC:
634529096567
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 10 mm, Bore Diameter 2 8 mm, Coupling Material Aluminum, Coupling Outside Diameter 25.4 mm, Maximum Speed 6,000 RPM, Maximum Torque 3.39 N-m, Axial Motion 0.25 mm, Overall Length 31.8 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 0.56 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 14.7 mm
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Bore Dia.:
10mm x 8mm
Rated Torque:
30 in-lb
Max. RPM:
6,000 RPM
Outside Dia.:
25.4 mm
Overall Length:
31.8 mm
Material - Couplings:
Aluminum
Max. Parallel Misalignment (In.):
0.015 in
Item - Motion Control Couplings:
Motion Control Coupling
Overall Length (In.):
1.25
Clearance Dia. (mm):
25.4
Max. Temp.:
225 Degrees F
Style:
4 Beam Clamp
Length through Bore (mm):
15.90
Screw Size:
M4
Length through Bore (In.):
0.625
Torsional Stiffness (Deg./In.-Lbs.):
0.2
Outside Dia. (In.):
1
Max. Axial Misalignment (In.):
+/-0.010
Finish:
Bright
Max. Angular Misalignment:
3 Degrees
Torque (In.-Lbs.):
30
Screw Size (mm):
M4
Outside Dia. (mm):
25.40
Length through Bore:
15.9 mm
Screw Type:
Cap Screw
Max. Temp. Range (F):
225
Material:
Aluminum
Overall Length (mm):
31.80
Item:
Motion Control Coupling
Axial Motion:
0.25 mm
Bore Tolerance:
+0.025/-0.000 mm
Dynamic Torque Non-Reversing:
1.7 N-m
Dynamic Torque Reversing:
0.85 N-m
Moment of Inertia:
0.000009275 kgf/m sq
Screw Material:
Alloy Steel
For Misalignment Type:
Angular, Axial, Parallel
Maximum Operating Temperature:
107 Degrees C
Full Bearing Support Required:
Yes
Number of Locking Screws:
2
Length Through Bore 2:
14.7 mm
Bore Type:
Round
Different Bore Sizes:
Yes
Included Screws:
(2) Hex Socket Cap Screw
Maximum Torque:
3.39 N-m
Shaft Locking Type:
Clamp On
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Fastener Tightening Torque:
4.6 N-m
Shaft Tolerance:
+0.000/-0.013 mm
Bore Diameter 1:
10 mm
Torsional Stiffness:
0.56 N-m/Deg
Coupling Material:
Aluminum
Screw Thread Size:
M4
System of Measurement:
Metric
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Zero Backlash:
Yes
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Angular Misalignment:
3 Degrees
Series:
PCMR
Coupling Material Finish:
Bright
Length Through Bore 1:
14.7 mm
Maximum Speed:
6,000 RPM
Bore Diameter 2:
8 mm
Coupling Outside Diameter:
25.4 mm
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Minimum Operating Temperature:
-40 Degrees C
Screw Material Finish:
Black Oxide
Number of Beams:
4
Parallel Misalignment:
0.38 mm
Coupling Material Grade:
7075
Package Quantity:
1
