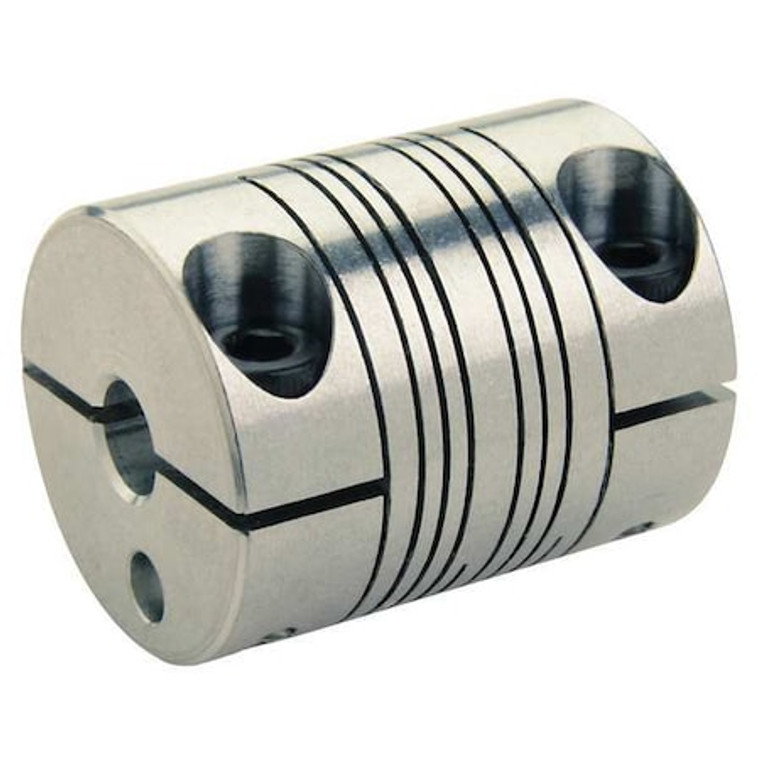

Coupling, 4 Beam Clamp, Bore 1/4 x 1/4 In - PCR16-4-4-A

Coupling, 4 Beam Clamp, Bore 1/4 x 1/4 In - PCR16-4-4-A

Ruland
SKU:
PCR16-4-4-A
|
UPC:
634529032572
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 1/4 in, Bore Diameter 2 1/4 in, Coupling Material Aluminum, Coupling Outside Diameter 1 in, Maximum Speed 6,000 RPM, Maximum Torque 36 in-lb, Axial Motion 0.01 in, Overall Length 1 1/4 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Different Bore Sizes No, Torsional Stiffness 6.25 in-lb/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 0.6 in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Bore Dia.:
1/4 in x 1/4 in
Rated Torque:
36 in-lb
Max. RPM:
6,000 RPM
Outside Dia.:
1 in
Overall Length:
1 1/4 in
Material - Couplings:
Aluminum
Item:
Motion Control Coupling
Torque (In.-Lbs.):
36
Overall Length (In.):
1.25
Max. Angular Misalignment:
3 Degrees
Max. Temp. Range (F):
225
Overall Length (mm):
31.80
Finish:
Bright
Length through Bore:
0.625 in
Max. Axial Misalignment (In.):
+/-0.010
Max. Temp.:
225 Degrees F
Length through Bore (In.):
0.625
Screw Size (mm):
M4
Screw Size:
M4
Torsional Stiffness (Deg./In.-Lbs.):
0.33
Outside Dia. (In.):
1
Outside Dia. (mm):
25.40
Style:
4 Beam Clamp
Length through Bore (mm):
15.90
Screw Type:
Cap Screw
Item - Motion Control Couplings:
Motion Control Coupling
Max. Parallel Misalignment (In.):
0.015 in
Material:
Aluminum
Clearance Dia. (mm):
25.4
Bore Tolerance:
+0.001/-0.000 in
Axial Motion:
0.01 in
Screw Material:
Alloy Steel
Dynamic Torque Non-Reversing:
18 lb-in
Dynamic Torque Reversing:
9 lb-in
Moment of Inertia:
0.0116 lb-in sq
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
System of Measurement:
Inch
Coupling Material Grade:
7075
Bore Type:
Round
Zero Backlash:
Yes
Maximum Operating Temperature:
225 Degrees F
Length Through Bore 2:
0.6 in
Parallel Misalignment:
0.015 in
Minimum Operating Temperature:
-40 Degrees F
Number of Beams:
4
Angular Misalignment:
3 Degrees
Bore Diameter 1:
1/4 in
Coupling Material:
Aluminum
Fastener Tightening Torque:
4.6 N-m
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Screw Thread Size:
M4
Length Through Bore 1:
0.6 in
For Misalignment Type:
Angular, Axial, Parallel
Screw Material Finish:
Black Oxide
Maximum Speed:
6,000 RPM
Included Screws:
(2) Hex Socket Cap Screw
Shaft Tolerance:
+0.0000/-0.0005 in
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Number of Locking Screws:
2
Different Bore Sizes:
No
Coupling Material Finish:
Bright
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Bore Diameter 2:
1/4 in
Series:
PCR
Full Bearing Support Required:
Yes
Coupling Outside Diameter:
1 in
Maximum Torque:
36 in-lb
Shaft Locking Type:
Clamp On
Torsional Stiffness:
6.25 in-lb/Deg
Package Quantity:
1
