Coupling, 4 Beam Clamp, 9mmx9mm - MWC30-9-9-SS

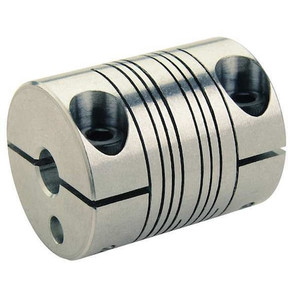

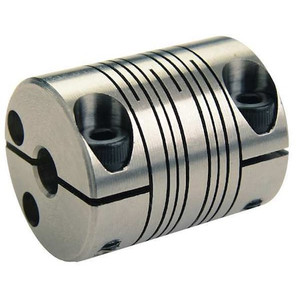

Coupling, 4 Beam Clamp, 9mmx9mm - MWC30-9-9-SS

Ruland
SKU:
MWC30-9-9-SS
|
UPC:
634529121160
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 9 mm, Bore Diameter 2 9 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 30 mm, Maximum Speed 6,000 RPM, Maximum Torque 10.4 N-m, Axial Motion 0.25 mm, Overall Length 38 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 3.03 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 18.2 mm
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Motion Control Coupling
System of Measurement:
Metric
Bore Dia.:
9mm x 9mm
Material - Couplings:
Stainless Steel
Outside Dia.:
30 mm
Overall Length:
38 mm
Finish:
Bright
Torsional Stiffness (Deg./In.-Lbs.):
0.037
Size:
MWC30
Clearance Dia. (mm):
20
Max. Axial Misalignment (In.):
+/-0.01
Screw Size:
M4
Overall Length (In.):
1.496
Length through Bore:
17.65 mm
Screw Type:
Cap Screw
Rated Torque:
92 in-lb
Min. Bore (mm):
9
Screw Size (mm):
M4
Clearance Dia. (In.):
0.787 in
Overall Length (mm):
38
Length through Bore (mm):
17.65
Item - Motion Control Couplings:
Motion Control Coupling
Style:
4-Beam Clamp
Max. Angular Misalignment:
3 Degrees
Max. Bore (mm):
9 mm
Length through Bore (In.):
0.695
Max. Temp.:
350 Degrees F
Max. Parallel Misalignment (In.):
0.015 in
Max. Temp. Range (F):
350 Degrees
Max. RPM:
6,000 RPM
Torque (In.-Lbs.):
92
Outside Dia. (In.):
1.181
Outside Dia. (mm):
30
Material:
Stainless Steel
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Screw Material:
Alloy Steel
Bore Tolerance:
+0.025/-0.000 mm
Features:
Balanced Design for Reduced Vibration
Screw Material Finish:
Black Oxide
For Misalignment Type:
Angular, Axial, Parallel
Maximum Operating Temperature:
176 Degrees C
Zero Backlash:
Yes
Full Bearing Support Required:
Yes
Shaft Tolerance:
+0.000/-0.013 mm
Torsional Stiffness:
3.03 N-m/Deg
Fastener Tightening Torque:
4.6 N-m
Bore Diameter 2:
9 mm
Coupling Material Finish:
Bright
Included Screws:
(2) Hex Socket Cap Screw
Bore Type:
Round
Bore Diameter 1:
9 mm
Screw Thread Size:
M4
Maximum Speed:
6,000 RPM
Length Through Bore 2:
18.2 mm
Coupling Material:
Stainless Steel
Number of Beams:
4
Shaft Locking Type:
Clamp On
Coupling Outside Diameter:
30 mm
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Dynamic Torque Non-Reversing:
5.2 N-m
Series:
MWC
Moment of Inertia:
0.00002092 kgf/m sq
Axial Motion:
0.25 mm
Length Through Bore 1:
18.2 mm
Dynamic Torque Reversing:
2.6 N-m
Angular Misalignment:
3 Degrees
Parallel Misalignment:
0.38 mm
Number of Locking Screws:
2
Maximum Torque:
10.4 N-m
Different Bore Sizes:
No
Coupling Material Grade:
303
Minimum Operating Temperature:
-40 Degrees C
Package Quantity:
1
