Coupling, 4 Beam Clamp, 9mmx1/4in. - MWC25-9MM-1/4"-A
RulandLog in for pricing
(No reviews yet)
Write a Review
Ruland
Coupling, 4 Beam Clamp, 9mmx1/4in. - MWC25-9MM-1/4"-A
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 9 mm, Bore Diameter 2 1/4 in, Coupling Material Aluminum, Coupling Outside Diameter 25 mm, Maximum Speed 6,000 RPM, Maximum Torque 3.1 N-m, Axial Motion 0.25 mm, Overall Length 30 mm, Parallel Misalignment 0.38 mm, System of Measurement Inch to Metric, Different Bore Sizes Yes, Torsional Stiffness 0.57 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 14.2 mm
- Country of Origin:
- United States
- Shaft Locking Type - Couplings:
- 1 Piece Clamp
- Item:
- Motion Control Coupling
- System of Measurement:
- Inch to Metric
- Bore Dia.:
- 1/4 in x 9mm
- Material - Couplings:
- Aluminum
- Outside Dia.:
- 0.984 in
- Overall Length:
- 30 mm
- Finish:
- Bright
- Overall Length (mm):
- 30
- Max. RPM:
- 6,000 RPM
- Style:
- 4-Beam Clamp
- Length through Bore (In.):
- 0.543
- Outside Dia. (In.):
- 0.984
- Screw Size (mm):
- M3
- Screw Type:
- Cap Screw
- Max. Axial Misalignment (In.):
- +/-0.015
- Max. Bore (In.):
- 0.625 in
- Item - Motion Control Couplings:
- Motion Control Coupling
- Rated Torque:
- 27 in-lb
- Length through Bore (mm):
- 13.79
- Screw Size:
- M3
- Min. Bore (In.):
- 0.25 in
- Clearance Dia. (mm):
- 30
- Size:
- MWC25
- Max. Parallel Misalignment (In.):
- 0.01 in
- Max. Bore (mm):
- 9 mm
- Torque (In.-Lbs.):
- 27
- Outside Dia. (mm):
- 25
- Torsional Stiffness (Deg./In.-Lbs.):
- 0.198
- Max. Temp.:
- 225 Degrees F
- Overall Length (In.):
- 1.181
- Max. Angular Misalignment:
- 3 Degrees
- Clearance Dia. (In.):
- 1.181 in
- Material:
- Aluminum
- Min. Bore (mm):
- 8.0
- Length through Bore:
- 13.79 mm
- Max. Temp. Range (F):
- 225 Degrees
- Application:
- Light-Duty Power Transmission, Servo Motors to Lead Screws
- Standards:
- Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
- Screw Material:
- Alloy Steel
- Bore Tolerance:
- +0.001/-0.000 in
- Fastener Tightening Torque:
- 2.1 N-m
- Coupling Material Finish:
- Bright
- Coupling Material:
- Aluminum
- Torsional Stiffness:
- 0.57 N-m/Deg
- Dynamic Torque Non-Reversing:
- 1.55 N-m
- Coupling Outside Diameter:
- 25 mm
- Features:
- Balanced Design for Reduced Vibration
- Screw Thread Size:
- M3
- For Misalignment Type:
- Angular, Axial, Parallel
- Maximum Speed:
- 6,000 RPM
- Dynamic Torque Reversing:
- 0.78 N-m
- Parallel Misalignment:
- 0.38 mm
- Series:
- MWC
- Full Bearing Support Required:
- Yes
- Length Through Bore 2:
- 14.2 mm
- For Environment:
- Angular Misalignment, Axial Motion, Parallel Misalignment
- Shaft Locking Type:
- Clamp On
- Maximum Operating Temperature:
- 107 Degrees C
- Moment of Inertia:
- 0.000002955 kgf/m sq
- Included Screws:
- (2) Hex Socket Cap Screw
- Maximum Torque:
- 3.1 N-m
- Axial Motion:
- 0.25 mm
- Minimum Operating Temperature:
- -40 Degrees C
- Angular Misalignment:
- 3 Degrees
- Zero Backlash:
- Yes
- Length Through Bore 1:
- 14.2 mm
- Bore Diameter 1:
- 9 mm
- Bore Diameter 2:
- 1/4 in
- Different Bore Sizes:
- Yes
- Number of Beams:
- 4
- Number of Locking Screws:
- 2
- Screw Material Finish:
- Black Oxide
- Shaft Tolerance:
- +0.0000/-0.0005 in
- Bore Type:
- Round
- Coupling Material Grade:
- 7075
- Package Quantity:
- 1
-
-

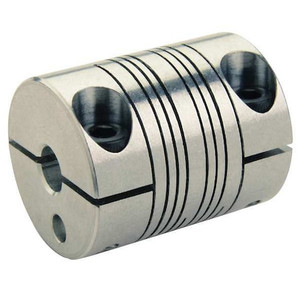

Coupling, 4 Beam Clamp, 10mmx1/4in. - MWC25-10MM-1/4"-A
