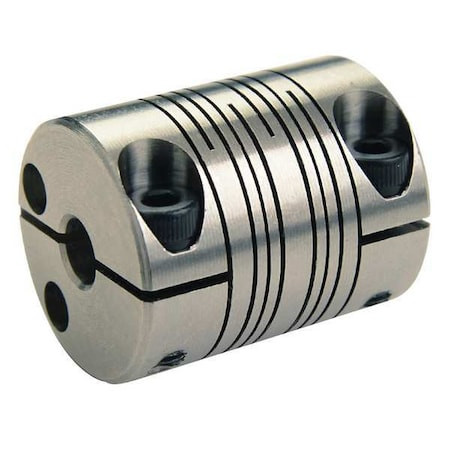

Coupling, 4 Beam Clamp, 6mmx6mm - PCMR32-6-6-A

Coupling, 4 Beam Clamp, 6mmx6mm - PCMR32-6-6-A

Ruland
SKU:
PCMR32-6-6-A
|
UPC:
634529032251
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 6 mm, Bore Diameter 2 6 mm, Coupling Material Aluminum, Coupling Outside Diameter 31.8 mm, Maximum Speed 6,000 RPM, Maximum Torque 7.68 N-m, Axial Motion 0.25 mm, Overall Length 38.1 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 1.89 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 17.6 mm
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Metric
Bore Dia.:
6mm x 6mm
Material - Couplings:
Aluminum
Outside Dia.:
31.8 mm
Overall Length:
38.1 mm
Finish:
Bright
Max. Parallel Misalignment (In.):
0.015 in
Length through Bore:
17.02 mm
Max. Axial Misalignment (In.):
+/-0.01
Clearance Dia. (mm):
31.8
Screw Size (mm):
M4
Overall Length (In.):
1.5
Max. Bore (mm):
6 mm
Outside Dia. (In.):
1.25
Screw Type:
Cap Screw
Clearance Dia. (In.):
1.25 in
Screw Size:
M4
Length through Bore (In.):
0.67
Overall Length (mm):
38.1
Min. Bore (mm):
6
Item - Motion Control Couplings:
Motion Control Coupling
Torsional Stiffness (Deg./In.-Lbs.):
0.06
Max. RPM:
6,000 RPM
Material:
Aluminum
Max. Temp. Range (F):
225 Degrees
Max. Temp.:
225 Degrees F
Outside Dia. (mm):
31.8 mm
Torque (In.-Lbs.):
68
Style:
4-Beam Clamp
Length through Bore (mm):
17.02
Max. Angular Misalignment:
3 Degrees
Size:
PCMR32
Rated Torque:
68 in-lb
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Bore Tolerance:
+0.025/-0.000 mm
Screw Material:
Alloy Steel
Dynamic Torque Reversing:
1.92 N-m
Bore Diameter 1:
6 mm
Maximum Speed:
6,000 RPM
Bore Type:
Round
Maximum Operating Temperature:
107 Degrees C
Parallel Misalignment:
0.38 mm
Coupling Material Finish:
Bright
Angular Misalignment:
3 Degrees
Series:
PCMR
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Full Bearing Support Required:
Yes
Shaft Tolerance:
+0.000/-0.013 mm
Different Bore Sizes:
No
Maximum Torque:
7.68 N-m
Length Through Bore 1:
17.6 mm
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Axial Motion:
0.25 mm
Screw Thread Size:
M4
Number of Locking Screws:
2
Included Screws:
(2) Hex Socket Cap Screw
Moment of Inertia:
0.000009948 kgf/m sq
Shaft Locking Type:
Clamp On
Number of Beams:
4
Coupling Material Grade:
7075
Screw Material Finish:
Black Oxide
For Misalignment Type:
Angular, Axial, Parallel
Zero Backlash:
Yes
Minimum Operating Temperature:
-40 Degrees C
Dynamic Torque Non-Reversing:
3.84 N-m
Coupling Material:
Aluminum
Length Through Bore 2:
17.6 mm
Torsional Stiffness:
1.89 N-m/Deg
Bore Diameter 2:
6 mm
Coupling Outside Diameter:
31.8 mm
Fastener Tightening Torque:
4.6 N-m
Package Quantity:
1
