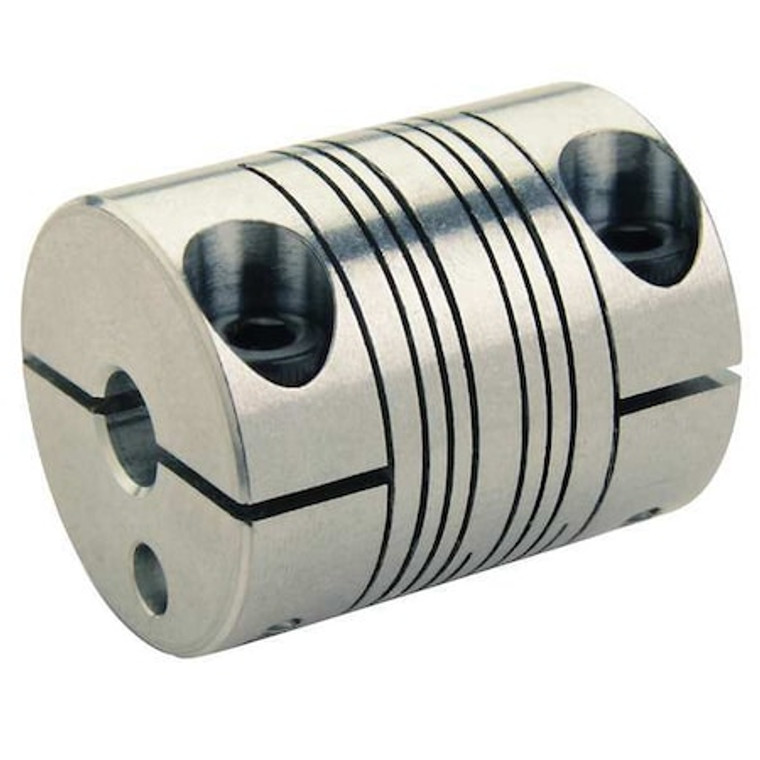

Coupling, 4 Beam Clamp, 6mmx3mm - PCMR19-6-3-SS

Coupling, 4 Beam Clamp, 6mmx3mm - PCMR19-6-3-SS

Ruland
SKU:
PCMR19-6-3-SS
|
UPC:
634529048795
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 6 mm, Bore Diameter 2 3 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 19.1 mm, Maximum Speed 6,000 RPM, Maximum Torque 2.15 N-m, Axial Motion 0.13 mm, Overall Length 22.9 mm, Parallel Misalignment 0.2 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 0.63 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 10.7 mm
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Metric
Bore Dia.:
6mm x 3mm
Material - Couplings:
Stainless Steel
Outside Dia.:
19.1 mm
Overall Length:
22.9 mm
Finish:
Bright
Max. Bore (mm):
6 mm
Clearance Dia. (mm):
25.4
Length through Bore (In.):
0.386
Max. Temp. Range (F):
350 Degrees
Screw Size:
M2.5
Style:
4-Beam Clamp
Screw Type:
Cap Screw
Clearance Dia. (In.):
1.0 in
Rated Torque:
19 in-lb
Material:
Stainless Steel
Length through Bore:
9.8 mm
Max. Axial Misalignment (In.):
+/-0.005
Outside Dia. (In.):
0.75
Item - Motion Control Couplings:
Motion Control Coupling
Overall Length (In.):
0.9
Max. RPM:
6,000 RPM
Length through Bore (mm):
9.8
Min. Bore (mm):
3
Outside Dia. (mm):
19.1 mm
Screw Size (mm):
M2.5
Torque (In.-Lbs.):
19
Max. Parallel Misalignment (In.):
0.008 in
Torsional Stiffness (Deg./In.-Lbs.):
0.179
Max. Angular Misalignment:
3 Degrees
Overall Length (mm):
22.9
Size:
PCMR19
Max. Temp.:
350 Degrees F
Standards:
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Screw Material:
Alloy Steel
Bore Tolerance:
+0.025/-0.000 mm
Minimum Operating Temperature:
-40 Degrees C
Included Screws:
(2) Hex Socket Cap Screw
Maximum Operating Temperature:
176 Degrees C
Screw Thread Size:
M2.5
Length Through Bore 1:
10.7 mm
Torsional Stiffness:
0.63 N-m/Deg
Bore Diameter 2:
3 mm
Bore Diameter 1:
6 mm
Coupling Material:
Stainless Steel
Axial Motion:
0.13 mm
Maximum Torque:
2.15 N-m
Shaft Locking Type:
Clamp On
Features:
Balanced Design for Reduced Vibration
Full Bearing Support Required:
Yes
Length Through Bore 2:
10.7 mm
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Moment of Inertia:
0.000002048 kgf/m sq
Shaft Tolerance:
+0.000/-0.013 mm
Screw Material Finish:
Black Oxide
Different Bore Sizes:
Yes
Coupling Material Grade:
303
Bore Type:
Round
Dynamic Torque Non-Reversing:
1.08 N-m
Angular Misalignment:
3 Degrees
Coupling Material Finish:
Bright
Dynamic Torque Reversing:
0.54 N-m
Parallel Misalignment:
0.2 mm
Series:
PCMR
Number of Beams:
4
Maximum Speed:
6,000 RPM
Zero Backlash:
Yes
Coupling Outside Diameter:
19.1 mm
Fastener Tightening Torque:
1.21 N-m
Number of Locking Screws:
2
For Misalignment Type:
Angular, Axial, Parallel
Package Quantity:
1
