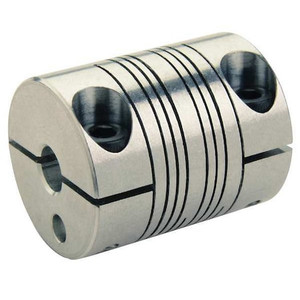

Coupling, 4 Beam Clamp, 5mmx5mm - PCMR22-5-5-A
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 5 mm, Bore Diameter 2 5 mm, Coupling Material Aluminum, Coupling Outside Diameter 22.2 mm, Maximum Speed 6,000 RPM, Maximum Torque 2.26 N-m, Axial Motion 0.13 mm, Overall Length 27 mm, Parallel Misalignment 0.2 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 0.67 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 12.7 mm
- Country of Origin:
- United States
- Shaft Locking Type - Couplings:
- 1 Piece Clamp
- Item:
- Motion Control Coupling
- System of Measurement:
- Metric
- Bore Dia.:
- 5mm x 5mm
- Material - Couplings:
- Aluminum
- Outside Dia.:
- 22.2 mm
- Overall Length:
- 27 mm
- Finish:
- Bright
- Max. RPM:
- 6,000 RPM
- Item - Motion Control Couplings:
- Motion Control Coupling
- Min. Bore (mm):
- 5
- Style:
- 4-Beam Clamp
- Torque (In.-Lbs.):
- 20
- Overall Length (In.):
- 1.063
- Size:
- PCMR22
- Overall Length (mm):
- 27
- Screw Type:
- Cap Screw
- Material:
- Aluminum
- Length through Bore (mm):
- 11.43
- Max. Bore (mm):
- 5 mm
- Screw Size:
- M3
- Max. Temp.:
- 225 Degrees F
- Rated Torque:
- 20 in-lb
- Outside Dia. (mm):
- 22.2 mm
- Max. Axial Misalignment (In.):
- +/-0.005
- Torsional Stiffness (Deg./In.-Lbs.):
- 0.168
- Length through Bore (In.):
- 0.45
- Length through Bore:
- 11.43 mm
- Outside Dia. (In.):
- 0.875
- Clearance Dia. (In.):
- 1.125 in
- Screw Size (mm):
- M3
- Max. Temp. Range (F):
- 225 Degrees
- Max. Angular Misalignment:
- 3 Degrees
- Max. Parallel Misalignment (In.):
- 0.008 in
- Clearance Dia. (mm):
- 28.6
- Application:
- Light-Duty Power Transmission, Servo Motors to Lead Screws
- Standards:
- Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
- Screw Material:
- Alloy Steel
- Bore Tolerance:
- +0.025/-0.000 mm
- Number of Beams:
- 4
- Zero Backlash:
- Yes
- Maximum Speed:
- 6,000 RPM
- Angular Misalignment:
- 3 Degrees
- Number of Locking Screws:
- 2
- Moment of Inertia:
- 0.000001639 kgf/m sq
- Screw Material Finish:
- Black Oxide
- Torsional Stiffness:
- 0.67 N-m/Deg
- Full Bearing Support Required:
- Yes
- Features:
- Balanced Design for Reduced Vibration
- Length Through Bore 1:
- 12.7 mm
- Bore Diameter 2:
- 5 mm
- Coupling Outside Diameter:
- 22.2 mm
- Fastener Tightening Torque:
- 2.1 N-m
- Coupling Material Finish:
- Bright
- Different Bore Sizes:
- No
- Shaft Locking Type:
- Clamp On
- Coupling Material Grade:
- 7075
- Dynamic Torque Non-Reversing:
- 1.13 N-m
- Parallel Misalignment:
- 0.2 mm
- For Environment:
- Angular Misalignment, Axial Motion, Parallel Misalignment
- Shaft Tolerance:
- +0.000/-0.013 mm
- Included Screws:
- (2) Hex Socket Cap Screw
- For Misalignment Type:
- Angular, Axial, Parallel
- Bore Type:
- Round
- Maximum Operating Temperature:
- 107 Degrees C
- Bore Diameter 1:
- 5 mm
- Axial Motion:
- 0.13 mm
- Minimum Operating Temperature:
- -40 Degrees C
- Length Through Bore 2:
- 12.7 mm
- Screw Thread Size:
- M3
- Series:
- PCMR
- Maximum Torque:
- 2.26 N-m
- Dynamic Torque Reversing:
- 0.57 N-m
- Coupling Material:
- Aluminum
- Package Quantity:
- 1
-
-
