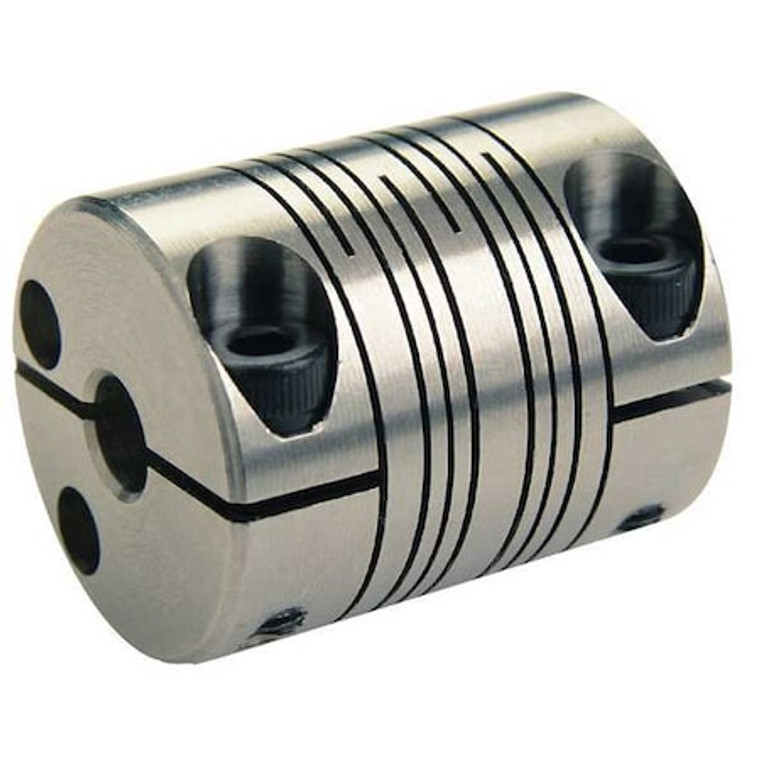

Coupling, 4 Beam Clamp, 5/8in.x 12mm - MWC30-5/8"-12MM-A

Coupling, 4 Beam Clamp, 5/8in.x 12mm - MWC30-5/8"-12MM-A

Ruland
SKU:
MWC30-5/8"-12MM-A
|
UPC:
634529136171
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 5/8 in, Bore Diameter 2 12 mm, Coupling Material Aluminum, Coupling Outside Diameter 30 mm, Maximum Speed 6,000 RPM, Maximum Torque 61 in-lb, Axial Motion 0.25 mm, Overall Length 38 mm, Parallel Misalignment 0.01 in, System of Measurement Inch to Metric, Different Bore Sizes Yes, Torsional Stiffness 1.08 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 18.2 mm
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Inch to Metric
Bore Dia.:
5/8 in x 12mm
Material - Couplings:
Aluminum
Outside Dia.:
1.181 in
Overall Length:
38 mm
Finish:
Bright
Clearance Dia. (mm):
15
Screw Type:
Cap Screw
Length through Bore (In.):
0.695
Torque (In.-Lbs.):
61
Overall Length (mm):
38
Rated Torque:
61 in-lb
Min. Bore (mm):
12
Overall Length (In.):
1.496
Max. Bore (mm):
4 mm
Max. Bore (In.):
0.625 in
Length through Bore:
17.65 mm
Max. Angular Misalignment:
3 Degrees
Style:
4-Beam Clamp
Clearance Dia. (In.):
0.591 in
Length through Bore (mm):
17.65
Max. Parallel Misalignment (In.):
0.01 in
Max. Temp.:
225 Degrees F
Torsional Stiffness (Deg./In.-Lbs.):
0.08
Item - Motion Control Couplings:
Motion Control Coupling
Outside Dia. (mm):
30
Outside Dia. (In.):
1.181
Max. Temp. Range (F):
225 Degrees
Max. RPM:
6,000 RPM
Screw Size:
M4
Material:
Aluminum
Screw Size (mm):
M4
Size:
MWC30
Max. Axial Misalignment (In.):
+/-0.015
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Bore Tolerance:
+0.025/-0.000 mm
Screw Material:
Alloy Steel
Included Screws:
(2) Hex Socket Cap Screw
Maximum Speed:
6,000 RPM
Length Through Bore 2:
18.2 mm
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Coupling Material:
Aluminum
Shaft Locking Type:
Clamp On
Dynamic Torque Non-Reversing:
3.45 N-m
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Coupling Material Grade:
7075
Different Bore Sizes:
Yes
Length Through Bore 1:
17.7 mm
Torsional Stiffness:
1.08 N-m/Deg
Angular Misalignment:
3 Degrees
Coupling Material Finish:
Bright
Bore Type:
Round
Maximum Torque:
61 in-lb
Parallel Misalignment:
0.01 in
Bore Diameter 1:
5/8 in
Shaft Tolerance:
+0.000/-0.013 mm
Zero Backlash:
Yes
Screw Material Finish:
Black Oxide
Maximum Bore Diameter:
5/8 in
Series:
MWC
Number of Locking Screws:
2
Screw Thread Size:
M4
Coupling Outside Diameter:
30 mm
Axial Motion:
0.25 mm
Dynamic Torque Reversing:
1.73 N-m
Bore Diameter 2:
12 mm
For Misalignment Type:
Angular, Axial, Parallel
Minimum Operating Temperature:
-40 Degrees C
Moment of Inertia:
0.000007958 kgf/m sq
Maximum Operating Temperature:
107 Degrees C
Full Bearing Support Required:
Yes
Minimum Bore Diameter:
12 mm
Fastener Tightening Torque:
4.6 N-m
Number of Beams:
4
Package Quantity:
1
