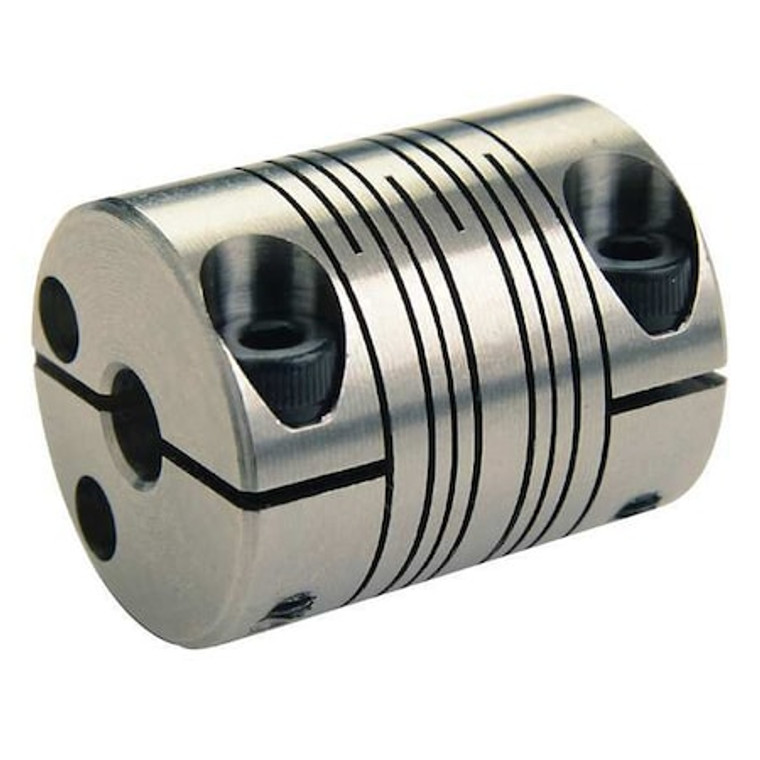

Coupling, 4 Beam Clamp, 5/16in.x 3/16in. - PCR14-5-3-SS

Coupling, 4 Beam Clamp, 5/16in.x 3/16in. - PCR14-5-3-SS

Ruland
SKU:
PCR14-5-3-SS
|
UPC:
634529049761
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 5/16 in, Bore Diameter 2 3/16 in, Coupling Material Stainless Steel, Coupling Outside Diameter 7/8 in, Maximum Speed 6,000 RPM, Maximum Torque 22 in-lb, Axial Motion 0.005 in, Overall Length 1 1/16 in, Parallel Misalignment 0.008 in, System of Measurement Inch, Different Bore Sizes Yes, Torsional Stiffness 7.41 in-lb/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 0.5 in
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Inch
Bore Dia.:
5/16 in x 3/16 in
Material - Couplings:
Stainless Steel
Outside Dia.:
0.875 in
Overall Length:
1 1/16 in
Finish:
Bright
Screw Size:
M3
Length through Bore (mm):
11.43
Clearance Dia. (mm):
15.9
Length through Bore:
0.45 in
Overall Length (mm):
27
Outside Dia. (In.):
0.875 in
Size:
PCR14
Overall Length (In.):
1.063
Torsional Stiffness (Deg./In.-Lbs.):
0.135
Outside Dia. (mm):
22.2
Max. Temp.:
350 Degrees F
Screw Size (mm):
M3
Rated Torque:
22 in-lb
Torque (In.-Lbs.):
22
Max. RPM:
6,000 RPM
Max. Axial Misalignment (In.):
+/-0.005
Max. Angular Misalignment:
3 Degrees
Screw Type:
Cap Screw
Style:
4-Beam Clamp
Material:
Stainless Steel
Length through Bore (In.):
0.45
Min. Bore (In.):
0.188 in
Max. Parallel Misalignment (In.):
0.008 in
Max. Bore (In.):
0.313 in
Clearance Dia. (In.):
0.625 in
Item - Motion Control Couplings:
Motion Control Coupling
Max. Temp. Range (F):
350 Degrees
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Bore Tolerance:
+0.001/-0.000 in
Screw Material:
Alloy Steel
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Dynamic Torque Reversing:
5.5 lb-in
Series:
PCR
Length Through Bore 2:
0.5 in
Minimum Operating Temperature:
-40 Degrees F
Maximum Operating Temperature:
350 Degrees F
For Misalignment Type:
Angular, Axial, Parallel
Length Through Bore 1:
0.5 in
Coupling Outside Diameter:
7/8 in
Moment of Inertia:
0.0157 lb-in sq
Coupling Material Finish:
Bright
Maximum Torque:
22 in-lb
Number of Locking Screws:
2
Number of Beams:
4
Bore Diameter 2:
3/16 in
Torsional Stiffness:
7.41 in-lb/Deg
Dynamic Torque Non-Reversing:
11 lb-in
Screw Material Finish:
Black Oxide
Bore Diameter 1:
5/16 in
Shaft Tolerance:
+0.0000/-0.0005 in
Axial Motion:
0.005 in
Full Bearing Support Required:
Yes
Angular Misalignment:
3 Degrees
Bore Type:
Round
Screw Thread Size:
M3
Fastener Tightening Torque:
2.1 N-m
Zero Backlash:
Yes
Maximum Speed:
6,000 RPM
Parallel Misalignment:
0.008 in
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Coupling Material:
Stainless Steel
Shaft Locking Type:
Clamp On
Coupling Material Grade:
303
Different Bore Sizes:
Yes
Included Screws:
(2) Hex Socket Cap Screw
Package Quantity:
1
