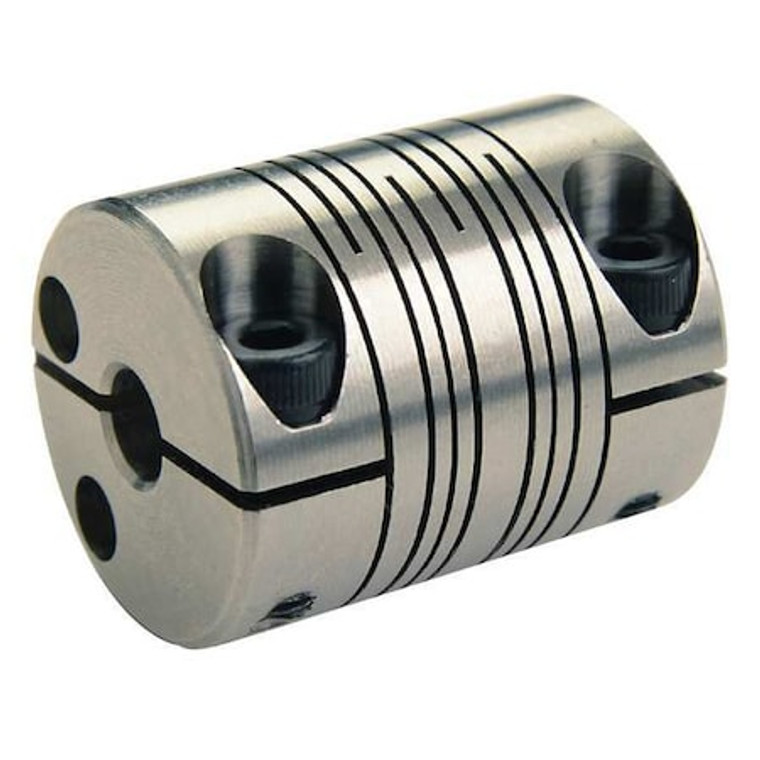

Coupling, 4 Beam Clamp, 5/16in.x 1/4in. - PCR16-5-4-SS

Coupling, 4 Beam Clamp, 5/16in.x 1/4in. - PCR16-5-4-SS

Ruland
SKU:
PCR16-5-4-SS
|
UPC:
634529049792
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 5/16 in, Bore Diameter 2 1/4 in, Coupling Material Stainless Steel, Coupling Outside Diameter 1 in, Maximum Speed 6,000 RPM, Maximum Torque 44 in-lb, Axial Motion 0.01 in, Overall Length 1 1/4 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Different Bore Sizes Yes, Torsional Stiffness 10.64 in-lb/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 0.6 in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Motion Control Coupling
System of Measurement:
Inch
Bore Dia.:
5/16 in x 1/4 in
Material - Couplings:
Stainless Steel
Outside Dia.:
1 in
Overall Length:
1 1/4 in
Finish:
Bright
Length through Bore (In.):
0.545
Material:
Stainless Steel
Torsional Stiffness (Deg./In.-Lbs.):
0.094
Torque (In.-Lbs.):
44
Max. Temp. Range (F):
350 Degrees
Screw Type:
Cap Screw
Max. Temp.:
350 Degrees F
Clearance Dia. (In.):
0.75 in
Style:
4-Beam Clamp
Item - Motion Control Couplings:
Motion Control Coupling
Max. Axial Misalignment (In.):
+/-0.01
Outside Dia. (mm):
25.4
Max. RPM:
6,000 RPM
Overall Length (In.):
1.25
Max. Angular Misalignment:
3 Degrees
Outside Dia. (In.):
1.000 in
Overall Length (mm):
31.8
Max. Bore (In.):
0.313 in
Length through Bore:
0.545 in
Min. Bore (In.):
0.25 in
Screw Size:
M4
Screw Size (mm):
M4
Rated Torque:
44 in-lb
Size:
PCR16
Length through Bore (mm):
13.84
Max. Parallel Misalignment (In.):
0.015 in
Clearance Dia. (mm):
19.1
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Bore Tolerance:
+0.001/-0.000 in
Screw Material:
Alloy Steel
Angular Misalignment:
3 Degrees
Different Bore Sizes:
Yes
Bore Diameter 2:
1/4 in
Number of Beams:
4
Bore Type:
Round
Maximum Operating Temperature:
350 Degrees F
Dynamic Torque Non-Reversing:
22 lb-in
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Moment of Inertia:
0.0317 lb-in sq
Coupling Material:
Stainless Steel
Length Through Bore 2:
0.6 in
Bore Diameter 1:
5/16 in
Minimum Operating Temperature:
-40 Degrees F
Shaft Tolerance:
+0.0000/-0.0005 in
Series:
PCR
Maximum Speed:
6,000 RPM
Fastener Tightening Torque:
4.6 N-m
Zero Backlash:
Yes
Dynamic Torque Reversing:
11 lb-in
Coupling Material Finish:
Bright
For Misalignment Type:
Angular, Axial, Parallel
Axial Motion:
0.01 in
Parallel Misalignment:
0.015 in
Length Through Bore 1:
0.6 in
Included Screws:
(2) Hex Socket Cap Screw
Screw Thread Size:
M4
Shaft Locking Type:
Clamp On
Coupling Material Grade:
303
Full Bearing Support Required:
Yes
Maximum Torque:
44 in-lb
Number of Locking Screws:
2
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Torsional Stiffness:
10.64 in-lb/Deg
Coupling Outside Diameter:
1 in
Screw Material Finish:
Black Oxide
Package Quantity:
1
