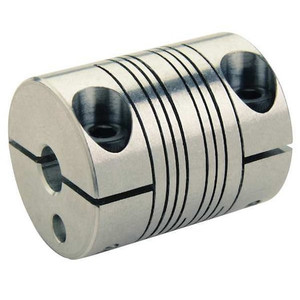

Coupling, 4 Beam Clamp, 4mmx3mm - MWC15-4-3-SS

Coupling, 4 Beam Clamp, 4mmx3mm - MWC15-4-3-SS

Ruland
SKU:
MWC15-4-3-SS
|
UPC:
634529054932
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 4 mm, Bore Diameter 2 3 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 15 mm, Maximum Speed 6,000 RPM, Maximum Torque 1.3 N-m, Axial Motion 0.12 mm, Overall Length 22 mm, Parallel Misalignment 0.2 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 0.45 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 10.6 mm
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Motion Control Coupling
System of Measurement:
Metric
Bore Dia.:
4mm x 3mm
Material - Couplings:
Stainless Steel
Outside Dia.:
15 mm
Overall Length:
22 mm
Finish:
Bright
Screw Size (mm):
M2
Style:
4-Beam Clamp
Screw Size:
M2
Rated Torque:
12 in-lb
Overall Length (mm):
22
Torsional Stiffness (Deg./In.-Lbs.):
0.252
Max. RPM:
6,000 RPM
Max. Axial Misalignment (In.):
+/-0.005
Max. Temp. Range (F):
350 Degrees
Overall Length (In.):
0.866
Torque (In.-Lbs.):
12
Outside Dia. (In.):
0.591
Clearance Dia. (mm):
15
Max. Parallel Misalignment (In.):
0.008 in
Min. Bore (mm):
3
Max. Angular Misalignment:
3 Degrees
Outside Dia. (mm):
15
Max. Bore (mm):
4 mm
Length through Bore:
10.41 mm
Item - Motion Control Couplings:
Motion Control Coupling
Material:
Stainless Steel
Length through Bore (mm):
10.41
Screw Type:
Cap Screw
Size:
MWC15
Length through Bore (In.):
0.41
Max. Temp.:
350 Degrees F
Clearance Dia. (In.):
0.591 in
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Screw Material:
Alloy Steel
Bore Tolerance:
+0.025/-0.000 mm
Length Through Bore 1:
10.6 mm
Number of Locking Screws:
2
Coupling Material:
Stainless Steel
For Misalignment Type:
Angular, Axial, Parallel
Shaft Tolerance:
+0.000/-0.013 mm
Fastener Tightening Torque:
0.6 N-m
Bore Type:
Round
Screw Thread Size:
M2
Maximum Speed:
6,000 RPM
Screw Material Finish:
Black Oxide
Minimum Operating Temperature:
-40 Degrees C
Torsional Stiffness:
0.45 N-m/Deg
Coupling Outside Diameter:
15 mm
Bore Diameter 2:
3 mm
Series:
MWC
Parallel Misalignment:
0.2 mm
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Dynamic Torque Non-Reversing:
0.65 N-m
Angular Misalignment:
3 Degrees
Maximum Torque:
1.3 N-m
Coupling Material Finish:
Bright
Shaft Locking Type:
Clamp On
Included Screws:
(2) Hex Socket Cap Screw
Zero Backlash:
Yes
Maximum Operating Temperature:
176 Degrees C
Dynamic Torque Reversing:
0.33 N-m
Full Bearing Support Required:
Yes
Axial Motion:
0.12 mm
Number of Beams:
4
Length Through Bore 2:
10.6 mm
Moment of Inertia:
0.000000731 kgf/m sq
Different Bore Sizes:
Yes
Features:
Balanced Design for Reduced Vibration
Bore Diameter 1:
4 mm
Coupling Material Grade:
303
Package Quantity:
1
