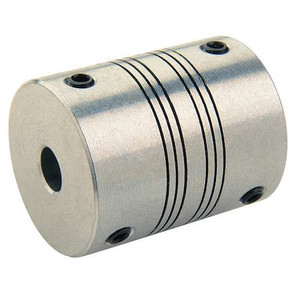

Coupling, 4 Beam Clamp, 3mmx3mm - PCMR10-3-3-SS

Coupling, 4 Beam Clamp, 3mmx3mm - PCMR10-3-3-SS

Ruland
SKU:
PCMR10-3-3-SS
|
UPC:
634529048665
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 3 mm, Bore Diameter 2 3 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 9.5 mm, Maximum Speed 6,000 RPM, Maximum Torque 0.85 N-m, Axial Motion 0.13 mm, Overall Length 14.3 mm, Parallel Misalignment 0.2 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 0.15 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 6.7 mm
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Metric
Bore Dia.:
3mm x 3mm
Material - Couplings:
Stainless Steel
Outside Dia.:
9.5 mm
Overall Length:
14.3 mm
Finish:
Bright
Screw Size:
M1.6
Max. Parallel Misalignment (In.):
0.008 in
Overall Length (In.):
0.563
Max. Angular Misalignment:
3 Degrees
Max. Bore (mm):
3 mm
Material:
Stainless Steel
Overall Length (mm):
14.3
Max. RPM:
6,000 RPM
Torsional Stiffness (Deg./In.-Lbs.):
0.751
Max. Temp.:
350 Degrees F
Min. Bore (mm):
3
Length through Bore (mm):
5.97
Torque (In.-Lbs.):
8
Outside Dia. (In.):
0.375
Clearance Dia. (In.):
0.75 in
Max. Temp. Range (F):
350 Degrees
Rated Torque:
8 in-lb
Style:
4-Beam Clamp
Item - Motion Control Couplings:
Motion Control Coupling
Clearance Dia. (mm):
19.1
Screw Type:
Cap Screw
Size:
PCMR10
Length through Bore (In.):
0.235
Length through Bore:
5.97 mm
Outside Dia. (mm):
9.5 mm
Screw Size (mm):
M1.6
Max. Axial Misalignment (In.):
+/-0.005
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards:
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Screw Material:
Alloy Steel
Bore Tolerance:
+0.025/-0.000 mm
Parallel Misalignment:
0.2 mm
Series:
PCMR
Full Bearing Support Required:
Yes
Dynamic Torque Non-Reversing:
0.43 N-m
Coupling Material Finish:
Bright
Different Bore Sizes:
No
Number of Locking Screws:
2
Length Through Bore 2:
6.7 mm
Screw Thread Size:
M1.6
Shaft Locking Type:
Clamp On
For Misalignment Type:
Angular, Axial, Parallel
Screw Material Finish:
Black Oxide
Axial Motion:
0.13 mm
Fastener Tightening Torque:
0.29 N-m
Bore Diameter 2:
3 mm
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Dynamic Torque Reversing:
0.21 N-m
Coupling Material:
Stainless Steel
Zero Backlash:
Yes
Features:
Balanced Design for Reduced Vibration
Torsional Stiffness:
0.15 N-m/Deg
Maximum Torque:
0.85 N-m
Number of Beams:
4
Length Through Bore 1:
6.7 mm
Maximum Speed:
6,000 RPM
Included Screws:
(2) Hex Socket Cap Screw
Bore Diameter 1:
3 mm
Coupling Outside Diameter:
9.5 mm
Maximum Operating Temperature:
176 Degrees C
Bore Type:
Round
Minimum Operating Temperature:
-40 Degrees C
Moment of Inertia:
0.000000088 kgf/m sq
Coupling Material Grade:
303
Angular Misalignment:
3 Degrees
Shaft Tolerance:
+0.000/-0.013 mm
Package Quantity:
1
