Coupling, 4 Beam Clamp, 12mmx8mm - MWC30-12-8-SS
RulandLog in for pricing
(No reviews yet)
Write a Review
Ruland

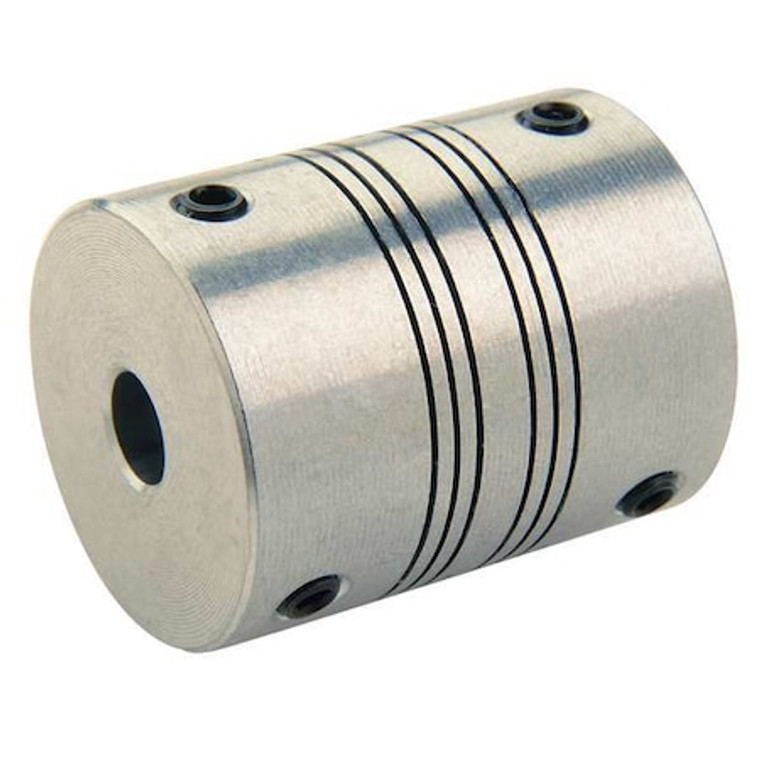

Coupling, 4 Beam Clamp, 12mmx8mm - MWC30-12-8-SS
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 12 mm, Bore Diameter 2 8 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 30 mm, Maximum Speed 6,000 RPM, Maximum Torque 10 N-m, Axial Motion 0.25 mm, Overall Length 38 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 2.17 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 18.2 mm
- Country of Origin:
- United States
- Item:
- Motion Control Coupling
- Shaft Locking Type - Couplings:
- 1 Piece Clamp
- System of Measurement:
- Metric
- Bore Dia.:
- 12mm x 8mm
- Material - Couplings:
- Stainless Steel
- Outside Dia.:
- 30 mm
- Overall Length:
- 38 mm
- Finish:
- Bright
- Screw Type:
- Cap Screw
- Clearance Dia. (mm):
- 30
- Length through Bore:
- 17.65 mm
- Item - Motion Control Couplings:
- Motion Control Coupling
- Screw Size:
- M4
- Material:
- Stainless Steel
- Clearance Dia. (In.):
- 1.181 in
- Max. RPM:
- 6,000 RPM
- Style:
- 4-Beam Clamp
- Torsional Stiffness (Deg./In.-Lbs.):
- 0.052
- Screw Size (mm):
- M4
- Max. Angular Misalignment:
- 3 Degrees
- Max. Bore (mm):
- 12 mm
- Outside Dia. (mm):
- 30
- Min. Bore (mm):
- 8
- Overall Length (mm):
- 38
- Size:
- MWC30
- Max. Axial Misalignment (In.):
- +/-0.01
- Rated Torque:
- 89 in-lb
- Length through Bore (mm):
- 17.65
- Overall Length (In.):
- 1.496
- Max. Temp. Range (F):
- 350 Degrees
- Max. Temp.:
- 350 Degrees F
- Outside Dia. (In.):
- 1.181
- Max. Parallel Misalignment (In.):
- 0.015 in
- Length through Bore (In.):
- 0.695
- Torque (In.-Lbs.):
- 89
- Standards:
- Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
- Application:
- Light-Duty Power Transmission, Servo Motors to Lead Screws
- Screw Material:
- Alloy Steel
- Bore Tolerance:
- +0.025/-0.000 mm
- Shaft Tolerance:
- +0.000/-0.013 mm
- Coupling Material Finish:
- Bright
- Dynamic Torque Non-Reversing:
- 5 N-m
- Full Bearing Support Required:
- Yes
- Number of Locking Screws:
- 2
- Dynamic Torque Reversing:
- 2.5 N-m
- Coupling Material Grade:
- 303
- Length Through Bore 1:
- 18.2 mm
- Features:
- Balanced Design for Reduced Vibration
- Coupling Material:
- Stainless Steel
- Torsional Stiffness:
- 2.17 N-m/Deg
- Maximum Operating Temperature:
- 176 Degrees C
- Maximum Torque:
- 10 N-m
- Different Bore Sizes:
- Yes
- Length Through Bore 2:
- 18.2 mm
- Maximum Speed:
- 6,000 RPM
- Parallel Misalignment:
- 0.38 mm
- Minimum Operating Temperature:
- -40 Degrees C
- For Misalignment Type:
- Angular, Axial, Parallel
- Bore Type:
- Round
- Bore Diameter 2:
- 8 mm
- Axial Motion:
- 0.25 mm
- Moment of Inertia:
- 0.00002092 kgf/m sq
- Coupling Outside Diameter:
- 30 mm
- Fastener Tightening Torque:
- 4.6 N-m
- Number of Beams:
- 4
- Screw Material Finish:
- Black Oxide
- Series:
- MWC
- Zero Backlash:
- Yes
- For Environment:
- Angular Misalignment, Axial Motion, Parallel Misalignment
- Shaft Locking Type:
- Clamp On
- Screw Thread Size:
- M4
- Angular Misalignment:
- 3 Degrees
- Bore Diameter 1:
- 12 mm
- Included Screws:
- (2) Hex Socket Cap Screw
- Package Quantity:
- 1
-
-
