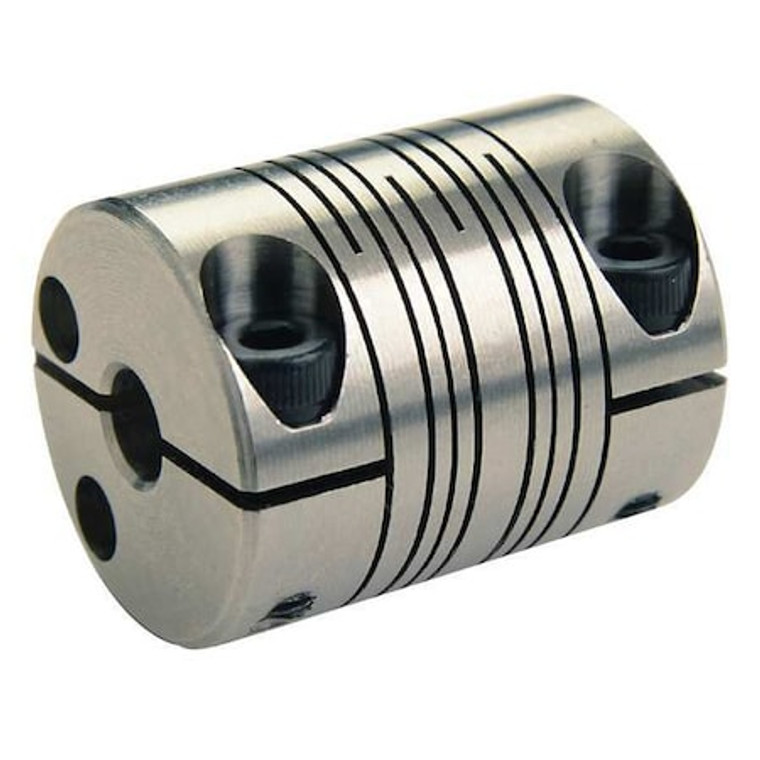

Coupling, 4 Beam Clamp, 12mmx10mm - PCMR32-12-10-A

Coupling, 4 Beam Clamp, 12mmx10mm - PCMR32-12-10-A

Ruland
SKU:
PCMR32-12-10-A
|
UPC:
634529032183
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 12 mm, Bore Diameter 2 10 mm, Coupling Material Aluminum, Coupling Outside Diameter 31.8 mm, Maximum Speed 6,000 RPM, Maximum Torque 5.88 N-m, Axial Motion 0.25 mm, Overall Length 38.1 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 0.91 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 17.6 mm
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Motion Control Coupling
System of Measurement:
Metric
Bore Dia.:
12mm x 10mm
Material - Couplings:
Aluminum
Outside Dia.:
31.8 mm
Overall Length:
38.1 mm
Finish:
Bright
Material:
Aluminum
Screw Size (mm):
M4
Size:
PCMR32
Item - Motion Control Couplings:
Motion Control Coupling
Max. Parallel Misalignment (In.):
0.015 in
Torque (In.-Lbs.):
52
Length through Bore (mm):
17.02
Clearance Dia. (In.):
1.125 in
Overall Length (mm):
38.1
Length through Bore:
17.02 mm
Max. Temp.:
225 Degrees F
Length through Bore (In.):
0.67
Screw Type:
Cap Screw
Screw Size:
M4
Clearance Dia. (mm):
28.6
Overall Length (In.):
1.5
Style:
4-Beam Clamp
Max. Temp. Range (F):
225 Degrees
Outside Dia. (mm):
31.8 mm
Min. Bore (mm):
10
Max. Axial Misalignment (In.):
+/-0.01
Max. Bore (mm):
12 mm
Rated Torque:
52 in-lb
Outside Dia. (In.):
1.25
Max. RPM:
6,000 RPM
Torsional Stiffness (Deg./In.-Lbs.):
0.124
Max. Angular Misalignment:
3 Degrees
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Screw Material:
Alloy Steel
Bore Tolerance:
+0.025/-0.000 mm
Axial Motion:
0.25 mm
Shaft Locking Type:
Clamp On
Length Through Bore 2:
17.6 mm
Screw Material Finish:
Black Oxide
Maximum Operating Temperature:
107 Degrees C
Number of Beams:
4
Minimum Operating Temperature:
-40 Degrees C
Different Bore Sizes:
Yes
Zero Backlash:
Yes
Coupling Outside Diameter:
31.8 mm
Number of Locking Screws:
2
Screw Thread Size:
M4
Torsional Stiffness:
0.91 N-m/Deg
Series:
PCMR
Maximum Speed:
6,000 RPM
Included Screws:
(2) Hex Socket Cap Screw
Shaft Tolerance:
+0.000/-0.013 mm
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Bore Diameter 1:
12 mm
Moment of Inertia:
0.000009948 kgf/m sq
Coupling Material:
Aluminum
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Maximum Torque:
5.88 N-m
Length Through Bore 1:
17.6 mm
For Misalignment Type:
Angular, Axial, Parallel
Parallel Misalignment:
0.38 mm
Full Bearing Support Required:
Yes
Dynamic Torque Reversing:
1.47 N-m
Dynamic Torque Non-Reversing:
2.94 N-m
Angular Misalignment:
3 Degrees
Coupling Material Finish:
Bright
Coupling Material Grade:
7075
Bore Type:
Round
Fastener Tightening Torque:
4.6 N-m
Bore Diameter 2:
10 mm
Package Quantity:
1
